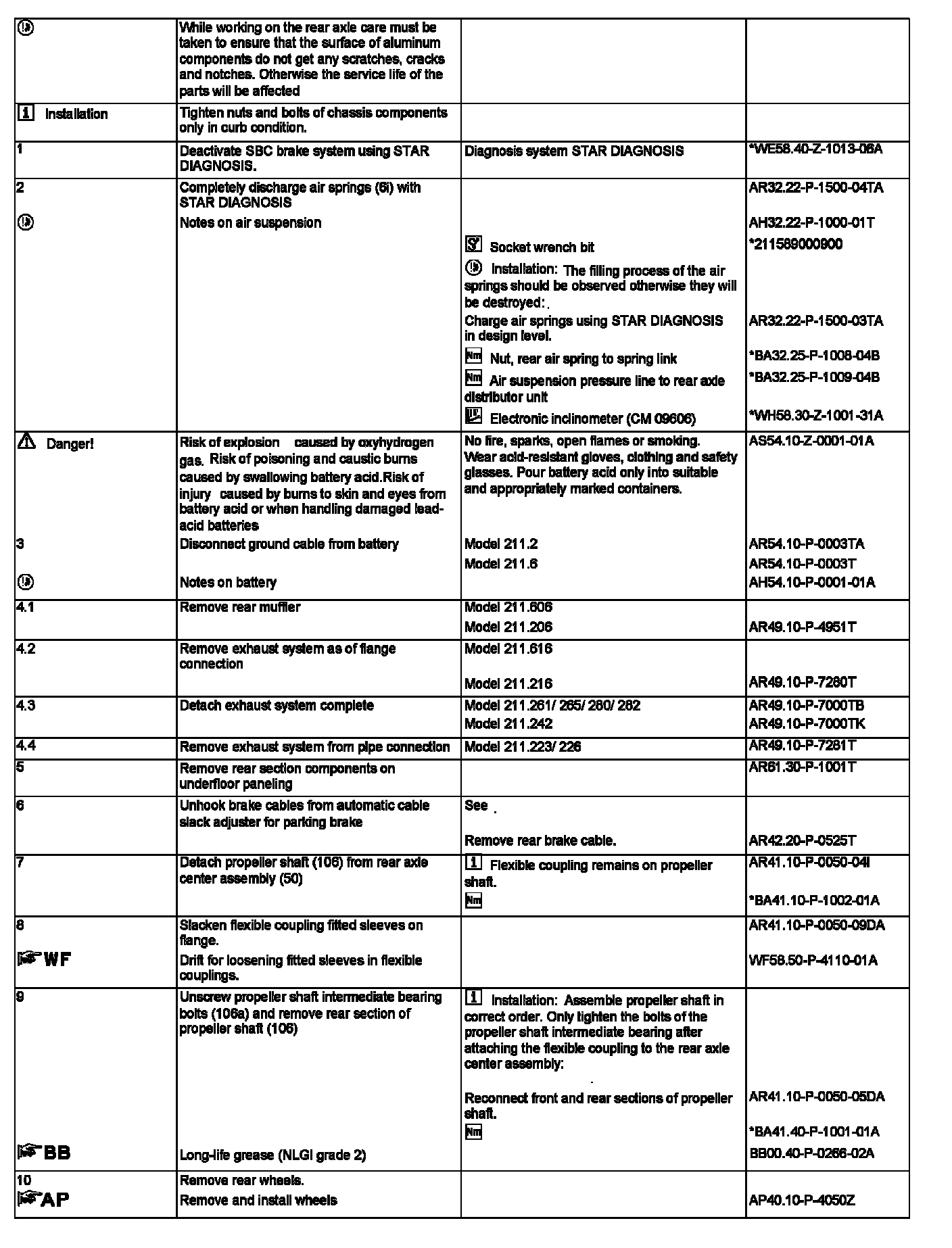

AR35.10-P-0010TA Remove/Install Complete Rear Axle



AR35.10-P-0010TA Remove/Install Complete Rear Axle
- except CODE (489) AIRmatic (semi-active air suspension)

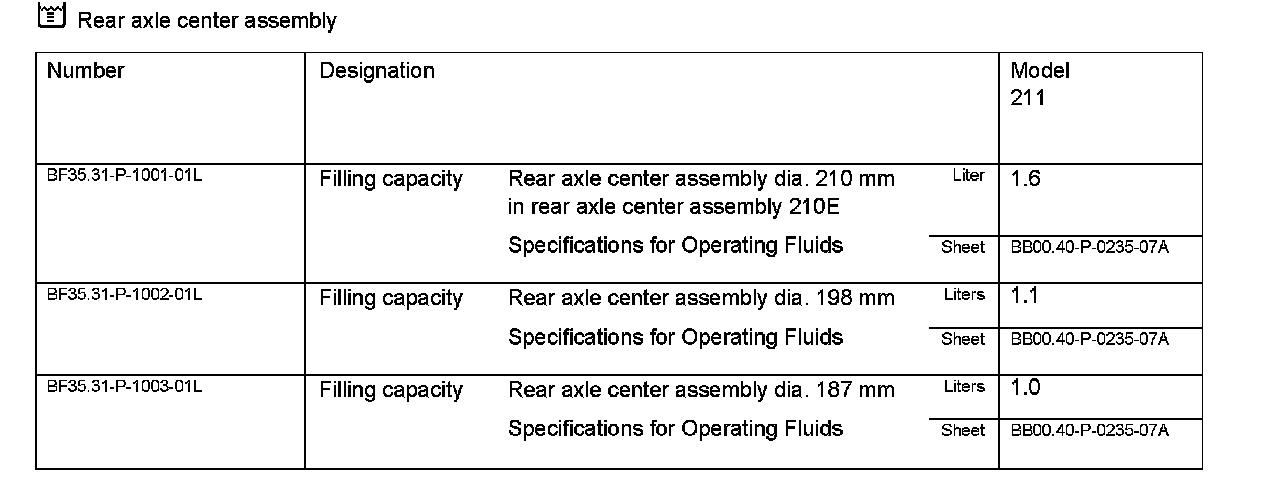

Rear axle center assembly housing:
