Home >> Mercedes Benz >> 2006 >> E 55 AMG Wagon (211.276) V8-5.5L SC (113.990) >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Locations >> GF32.31-P-4400-01T Level Sensor, Location

GF32.31-P-4400-01T Level Sensor, Location



GF32.31-P-4400-01T Level sensor, location
- except CODE (489a) Airmatic (semi-active air suspension)

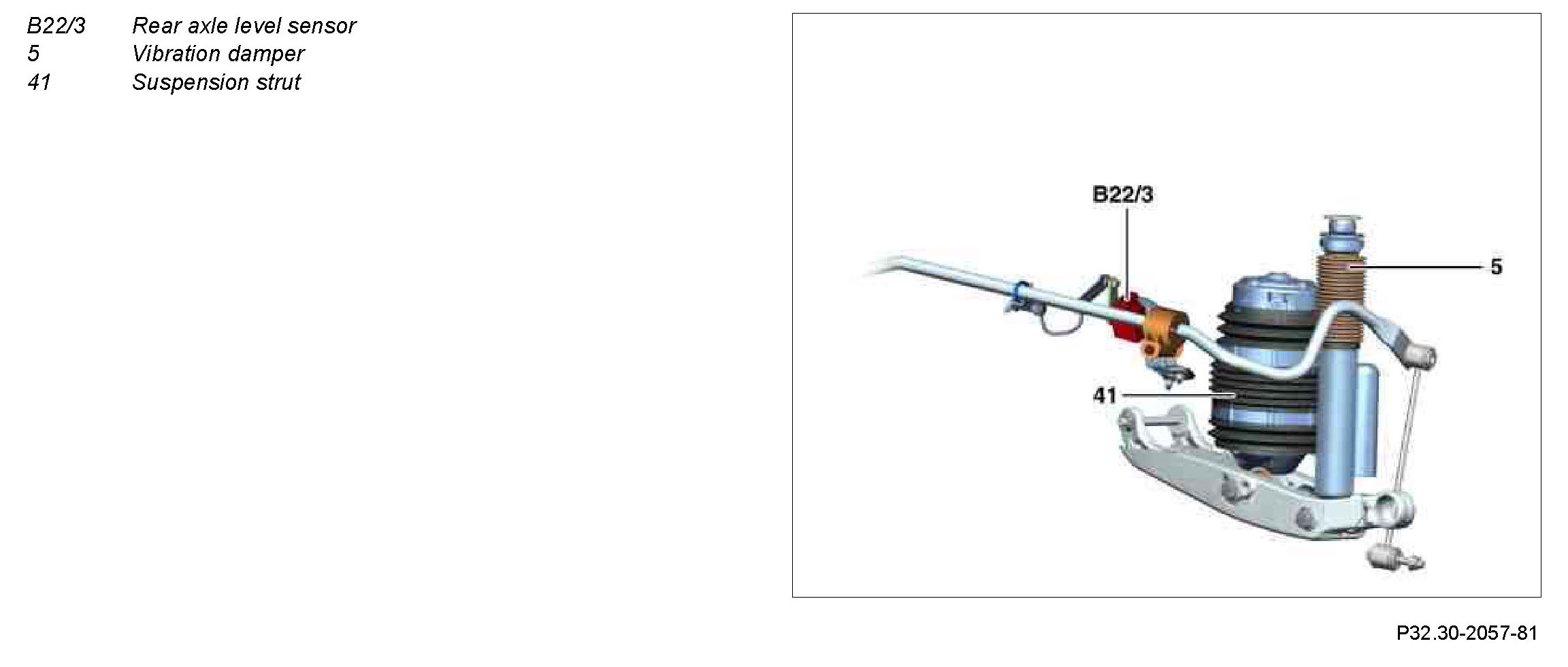

Component Identification:
