AR35.20-P-0115TA Remove/Install Wheel Carrier

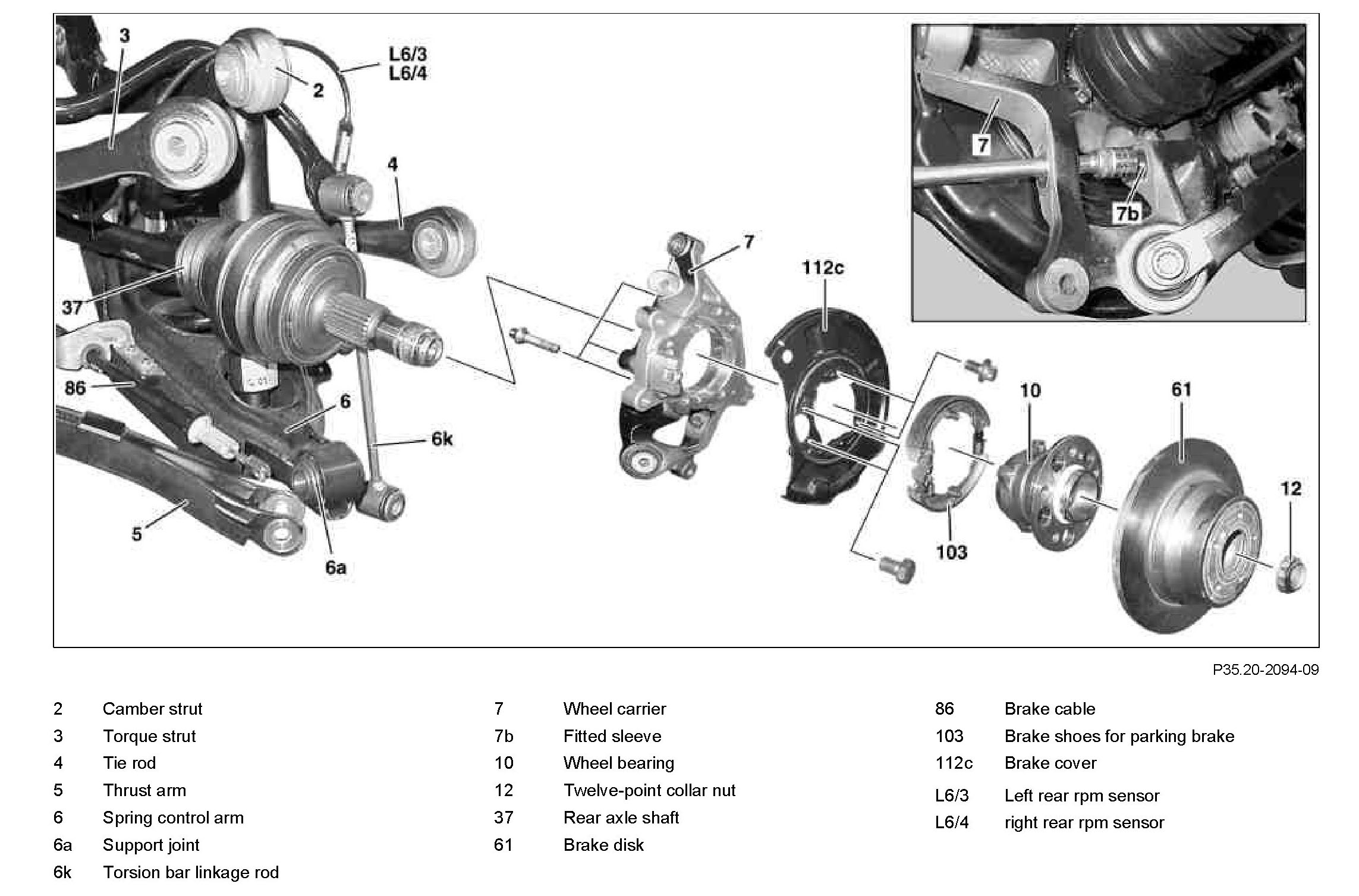

Component Identification:

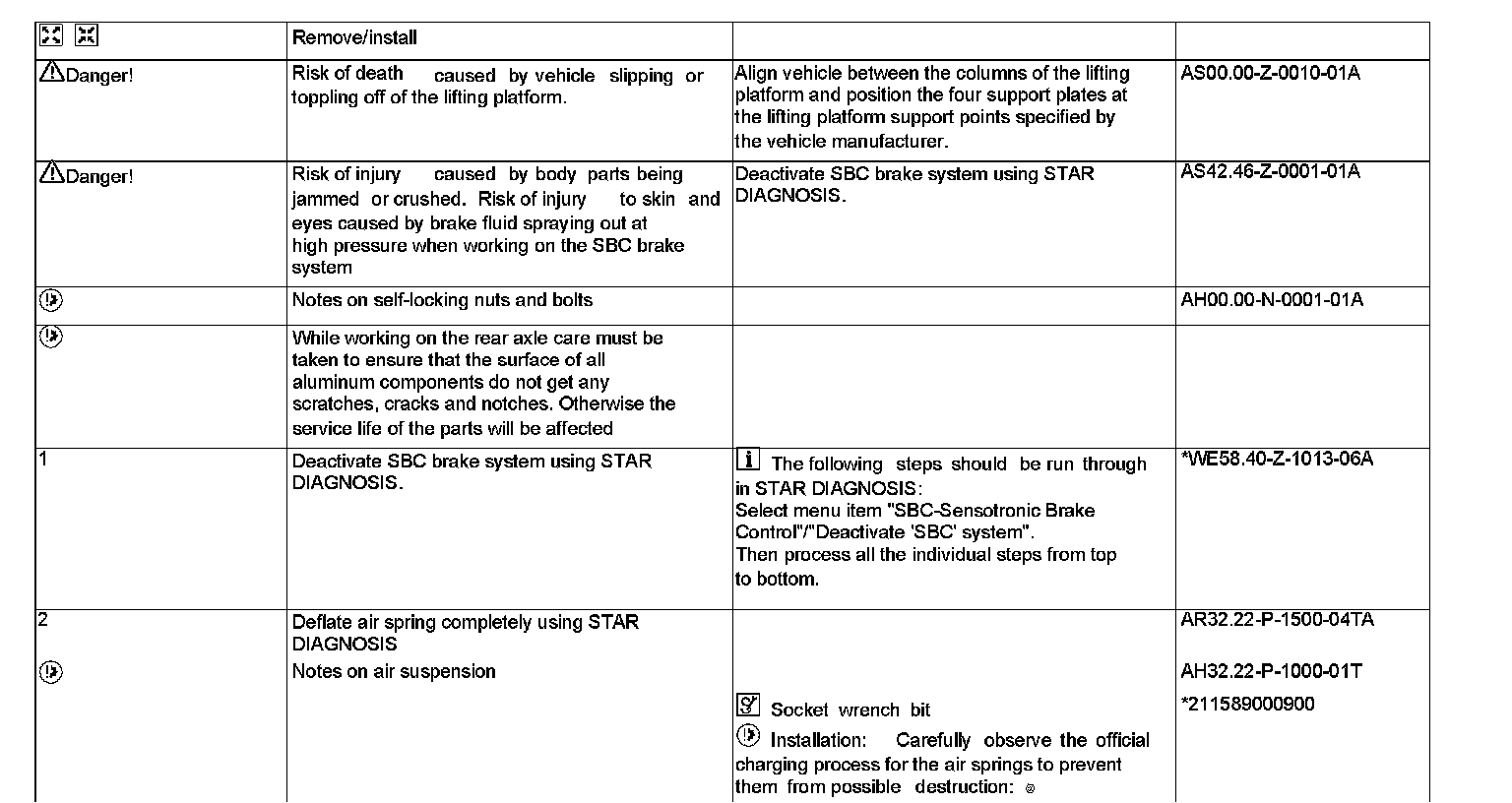

Steps 1 - 2:

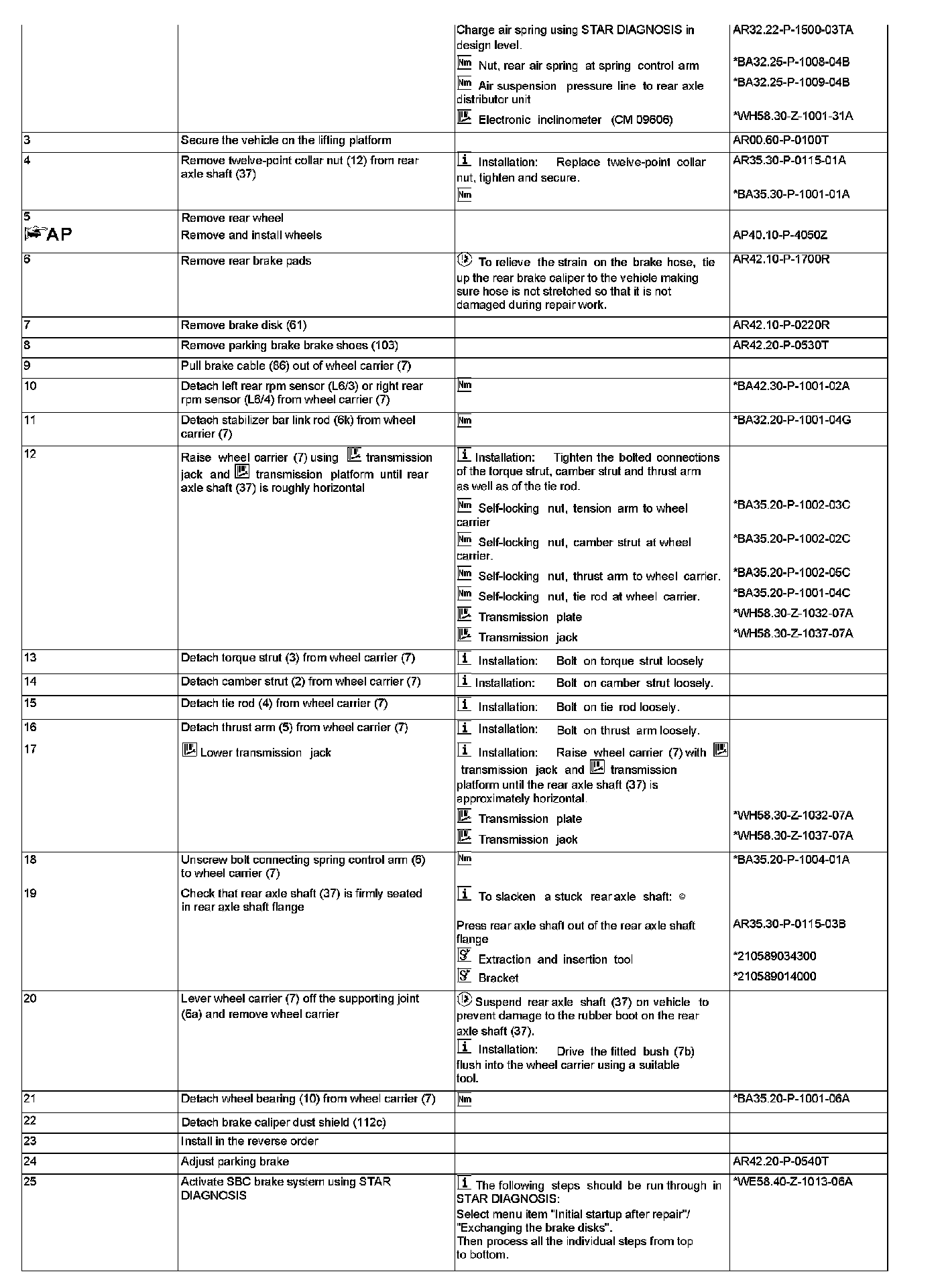

Steps 3 - 25:

Step 26:

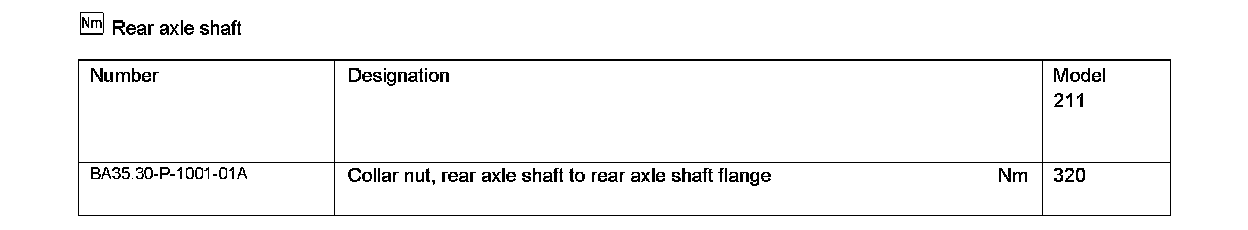

Rear Axle Shaft:

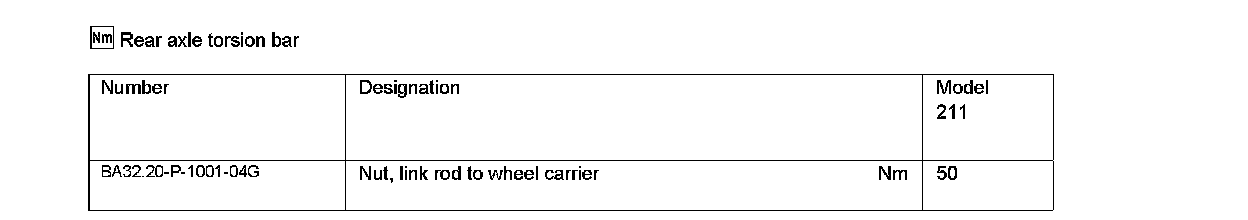

Rear Axle Torsion Bar:

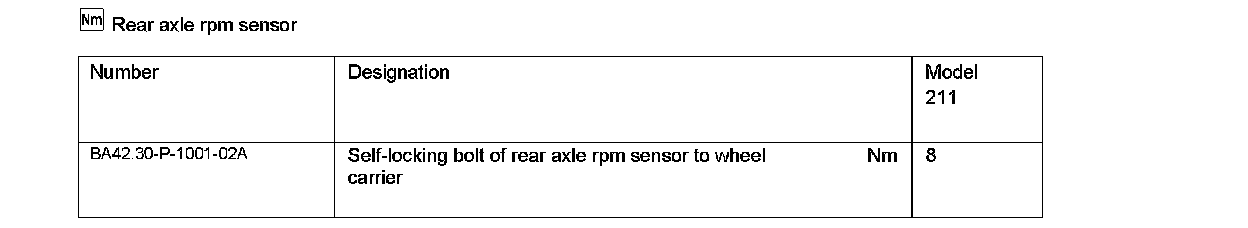

Rear Axle RPM Sensor:

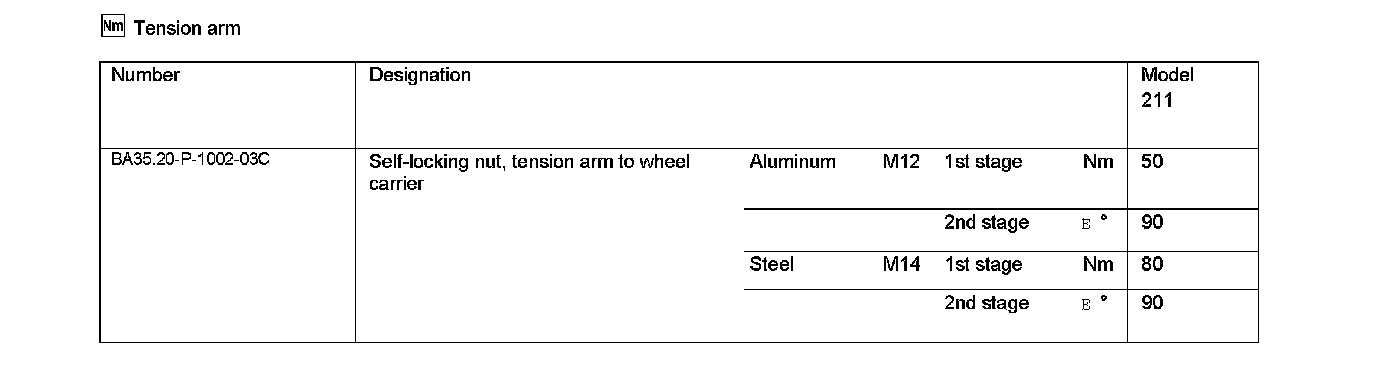

Tension Arm:

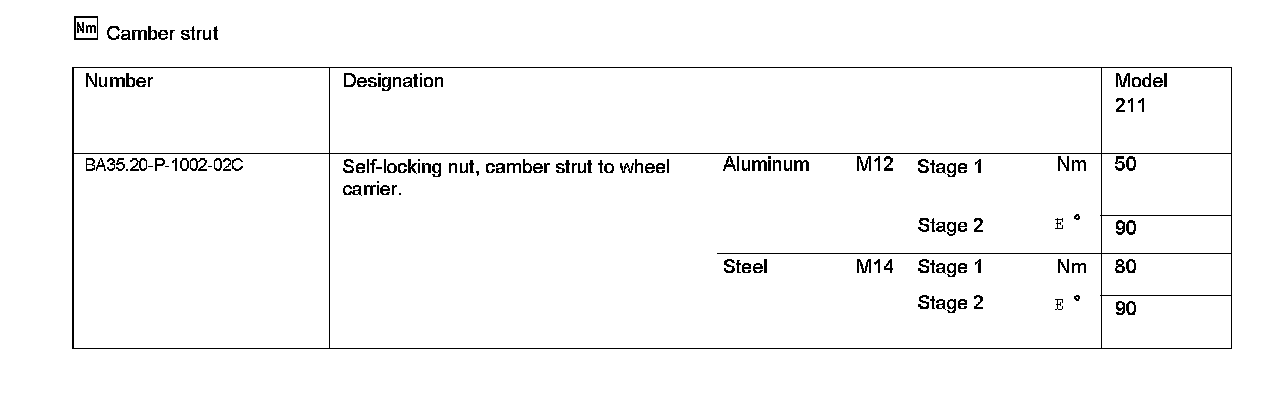

Camber Strut:

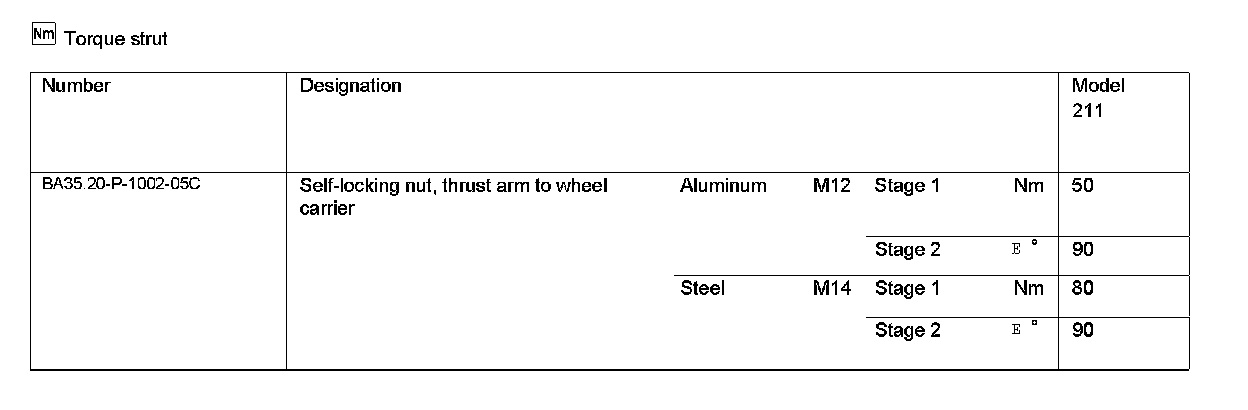

Torque Strut:

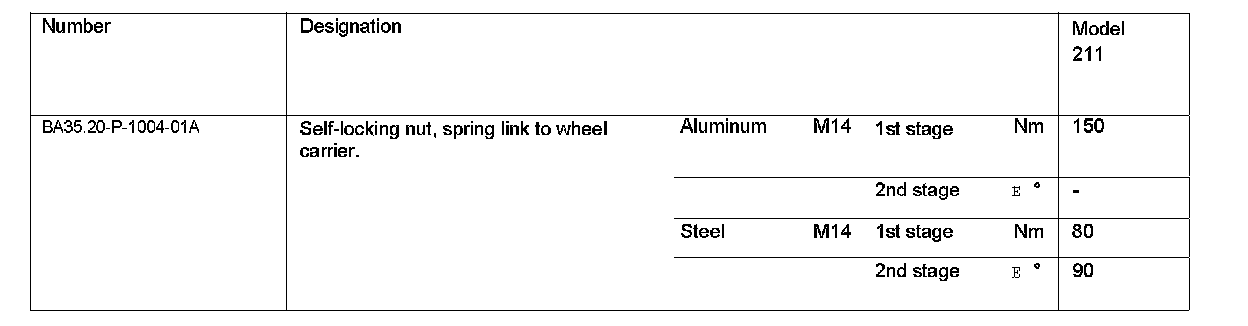

Spring Link:

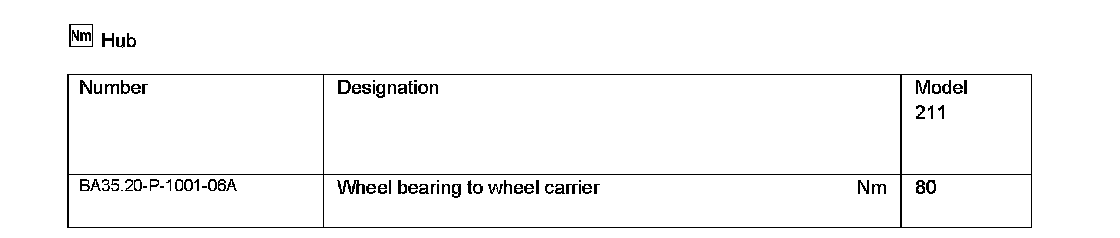

Hub:

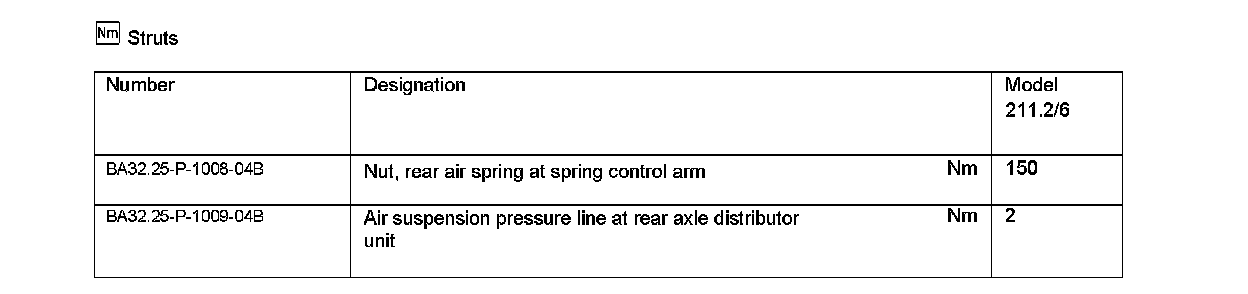

Struts:

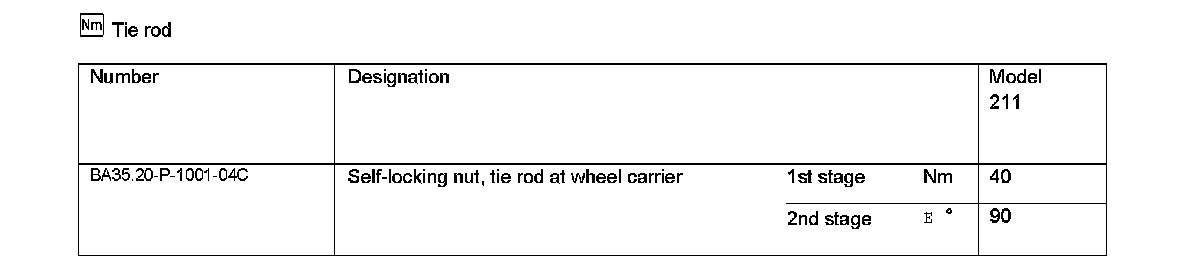

Tie Rod:

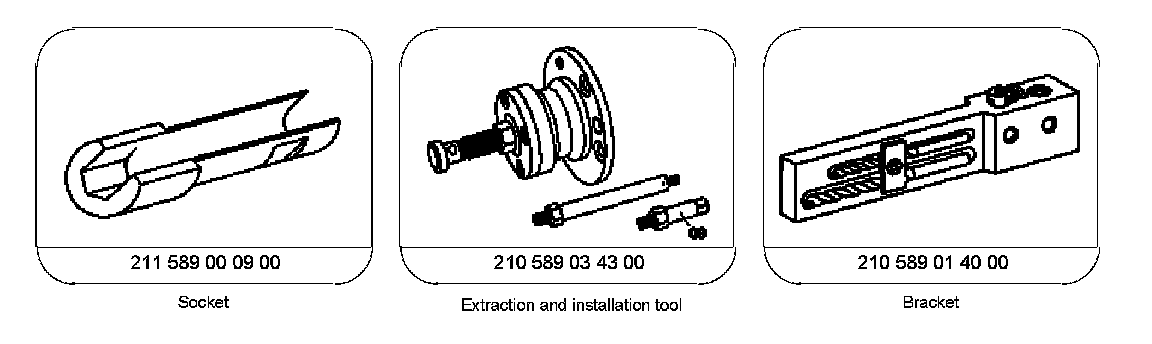

Special Tools:

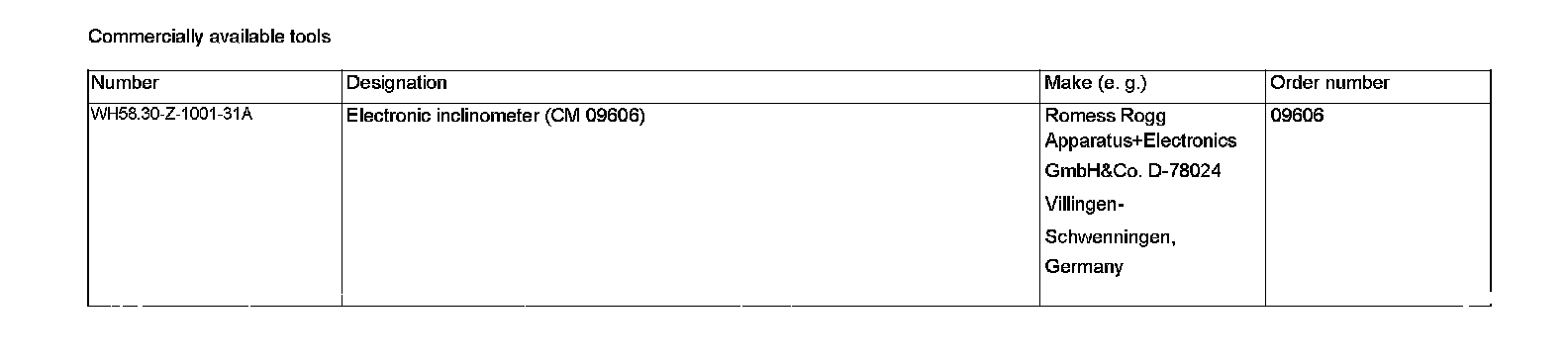

Commercially Available Tools:

Commercially Available Tools:

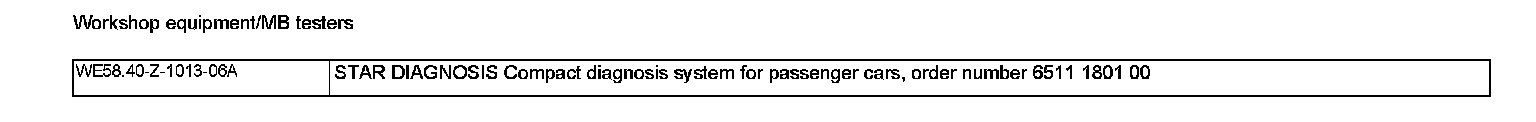

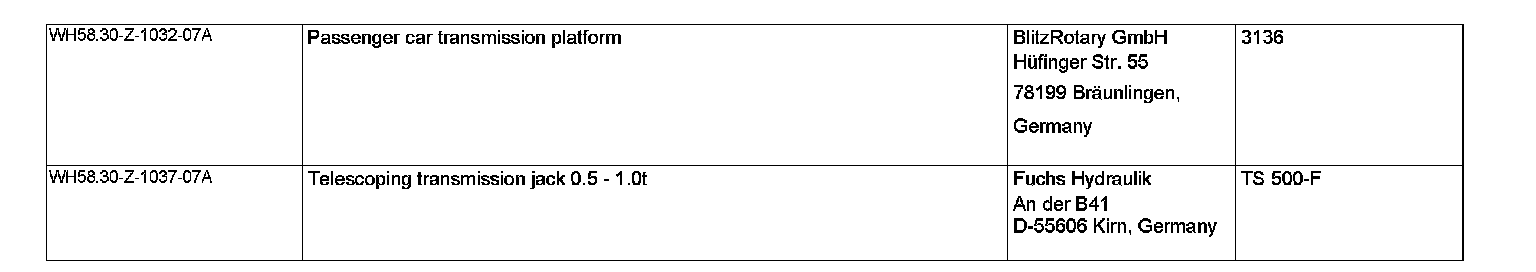

Workshop Equipment/MB Testers:
