GF82.10-P-0003-02TMB Exterior Lights, Location of Components
GF82.10-P-0003-02TMB Exterior Lights, Location of Components
GF82.10-P-0003-02TMB Exterior Lights, Location Of Components
- except CODE (614) Bi-xenon headlamp unit
- except CODE (618) Bi-xenon headlamps

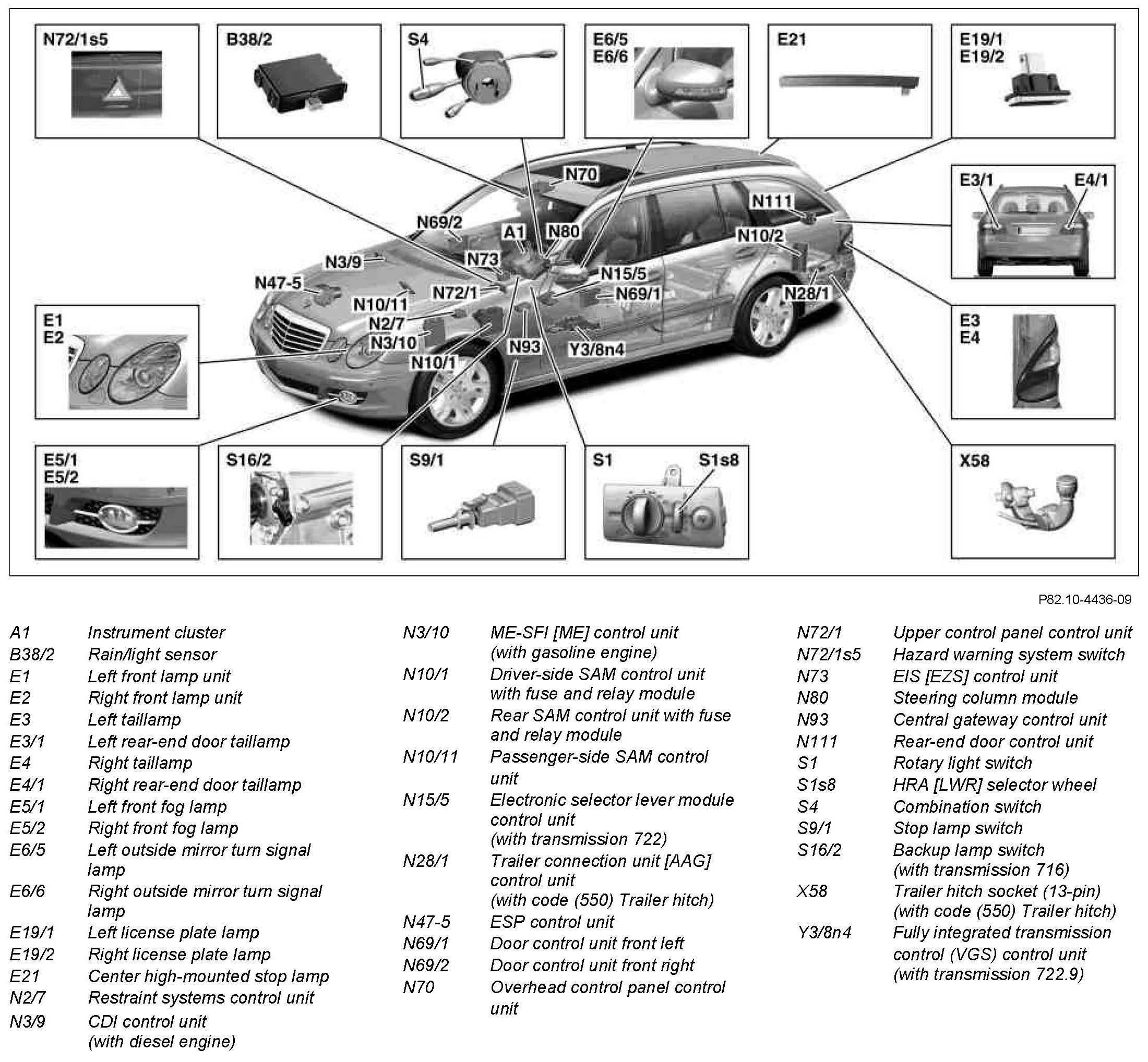

Component Identification:
