Home >> Mercedes Benz >> 2006 >> E 55 AMG Wagon (211.276) V8-5.5L SC (113.990) >> Repair and Diagnosis >> Heating and Air Conditioning >> Auxiliary Cabin Heater >> Auxiliary Heater Element >> Service and Repair

Auxiliary Heater Element: Service and Repair

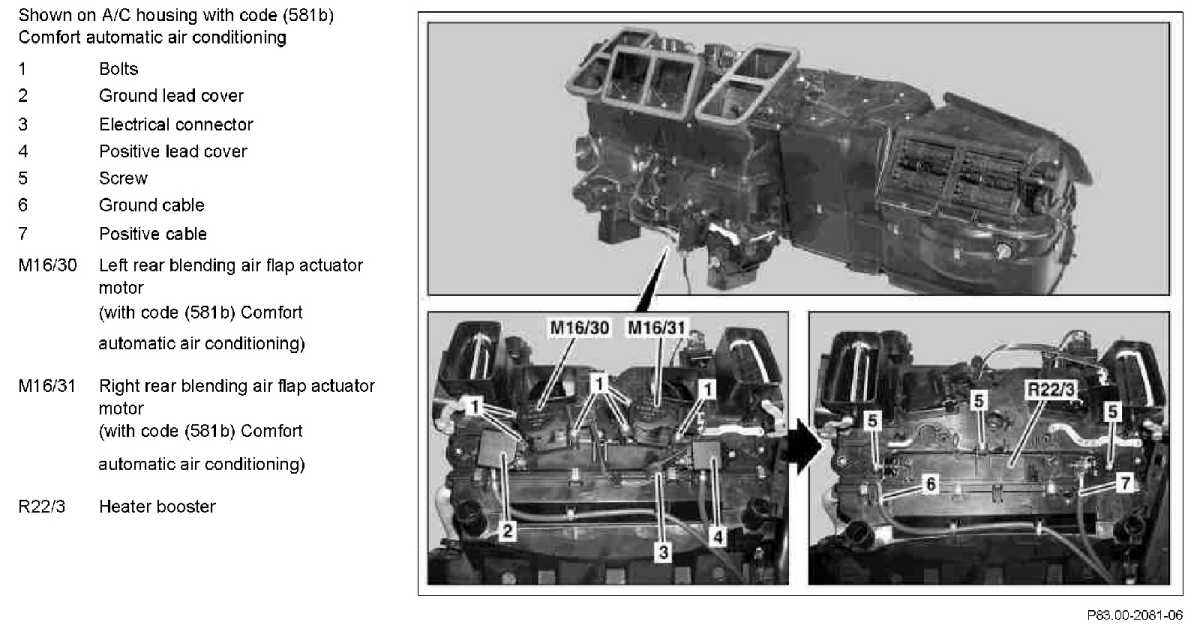

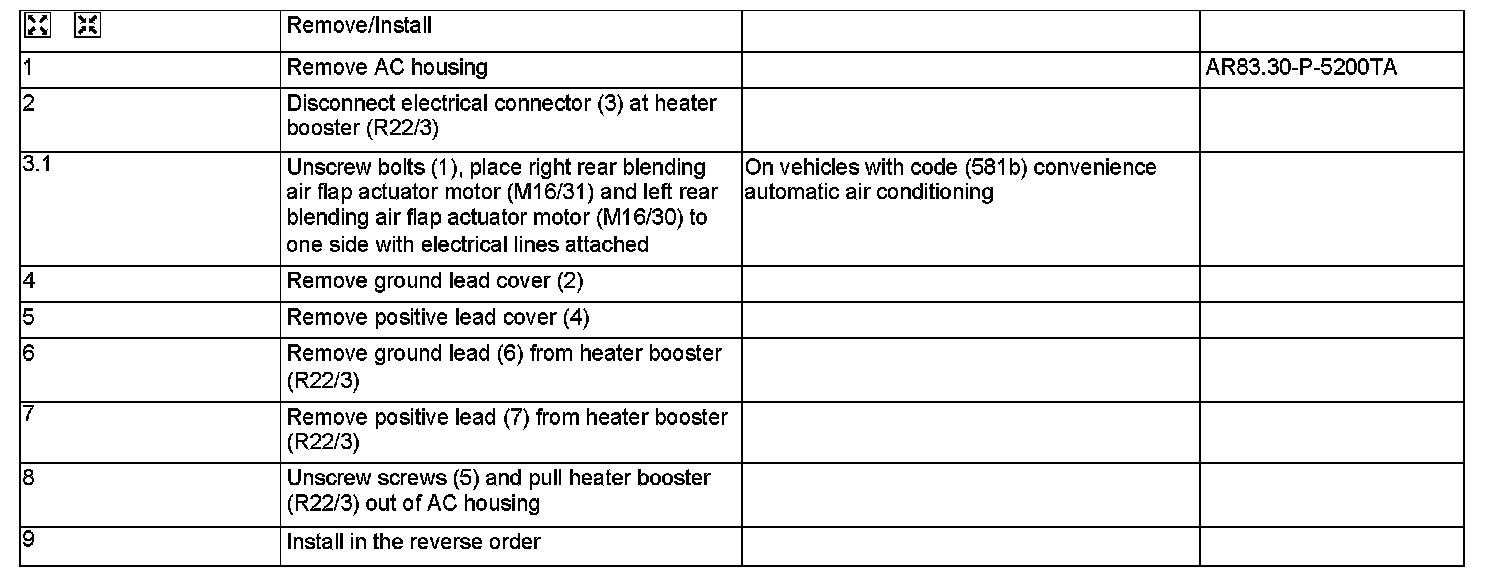

AR83.70-P-8000T Remove/Install PTC Heater Booster
- with heater booster
