Home >> Mercedes Benz >> 2006 >> E 55 AMG Wagon (211.276) V8-5.5L SC (113.990) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Drive Belts, Mounts, Brackets and Accessories >> Drive Belt >> Service and Repair >> AR13.22-P-1202RV Remove/Install Poly V-Belt

AR13.22-P-1202RV Remove/Install Poly V-Belt

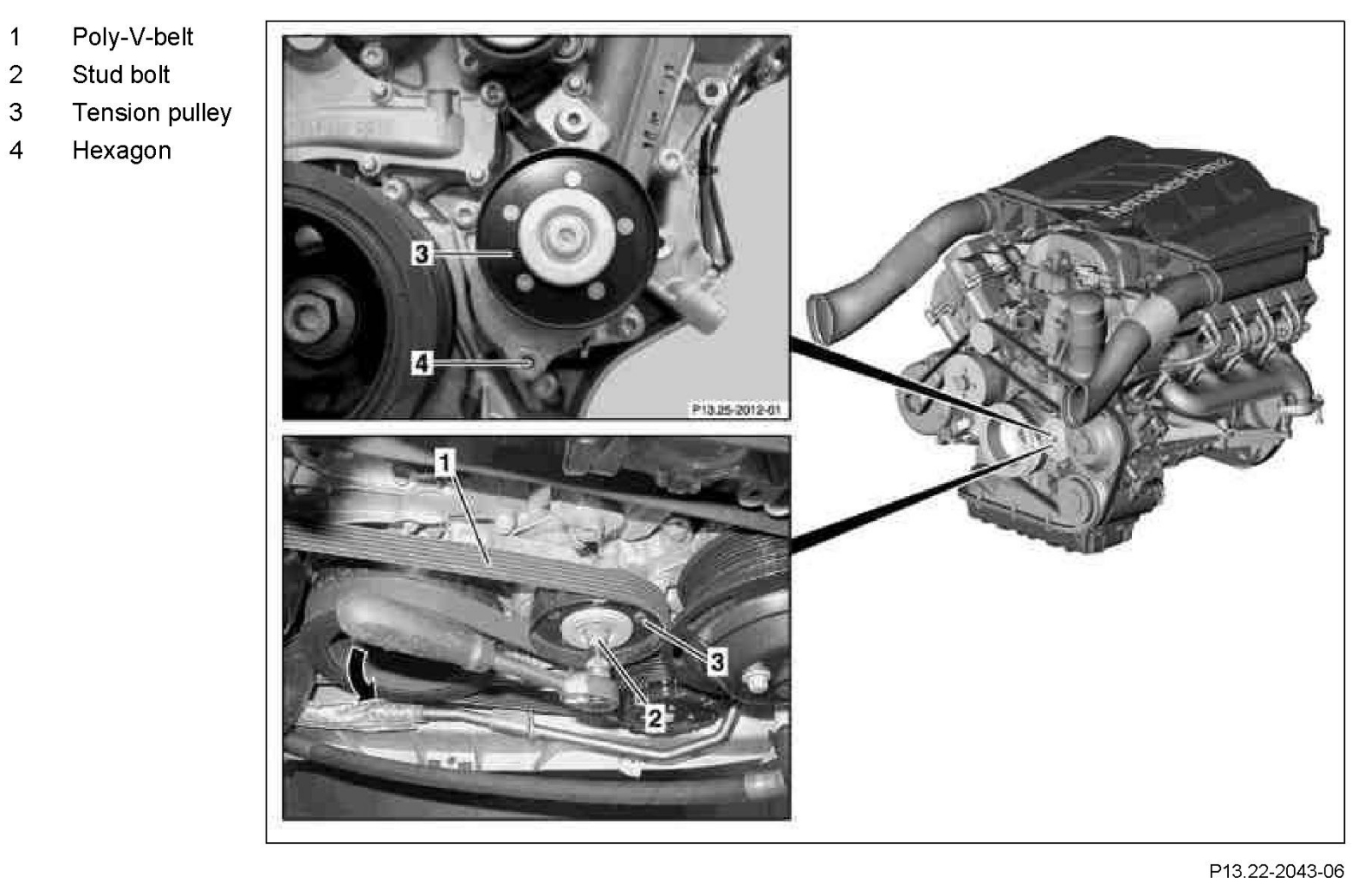

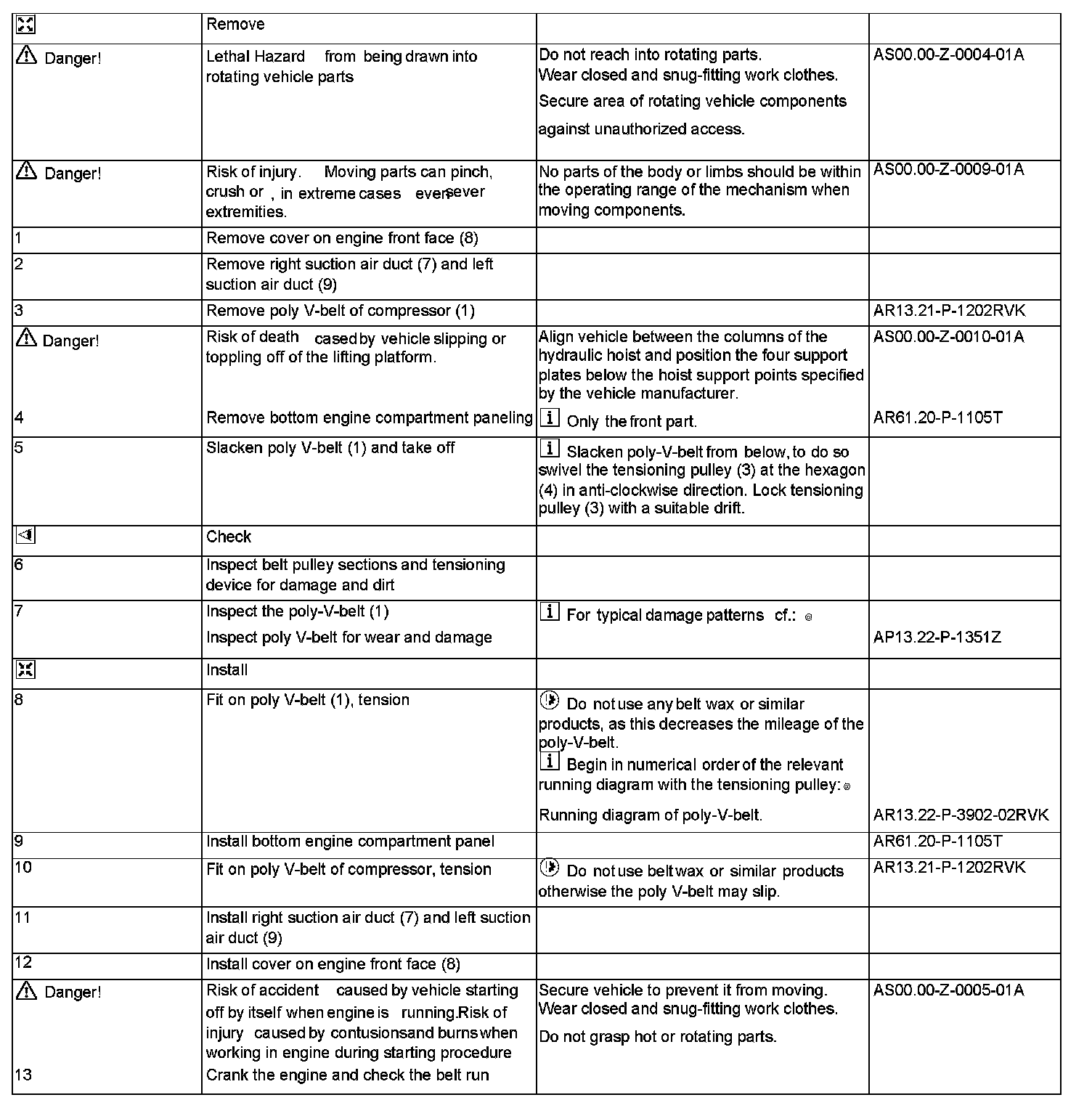

Remove/Install Poly V-belt
