AR13.25-P-3200R Remove/Install Poly V-Belt Tensioning Device

Remove/Install Poly V-belt Tensioning Device

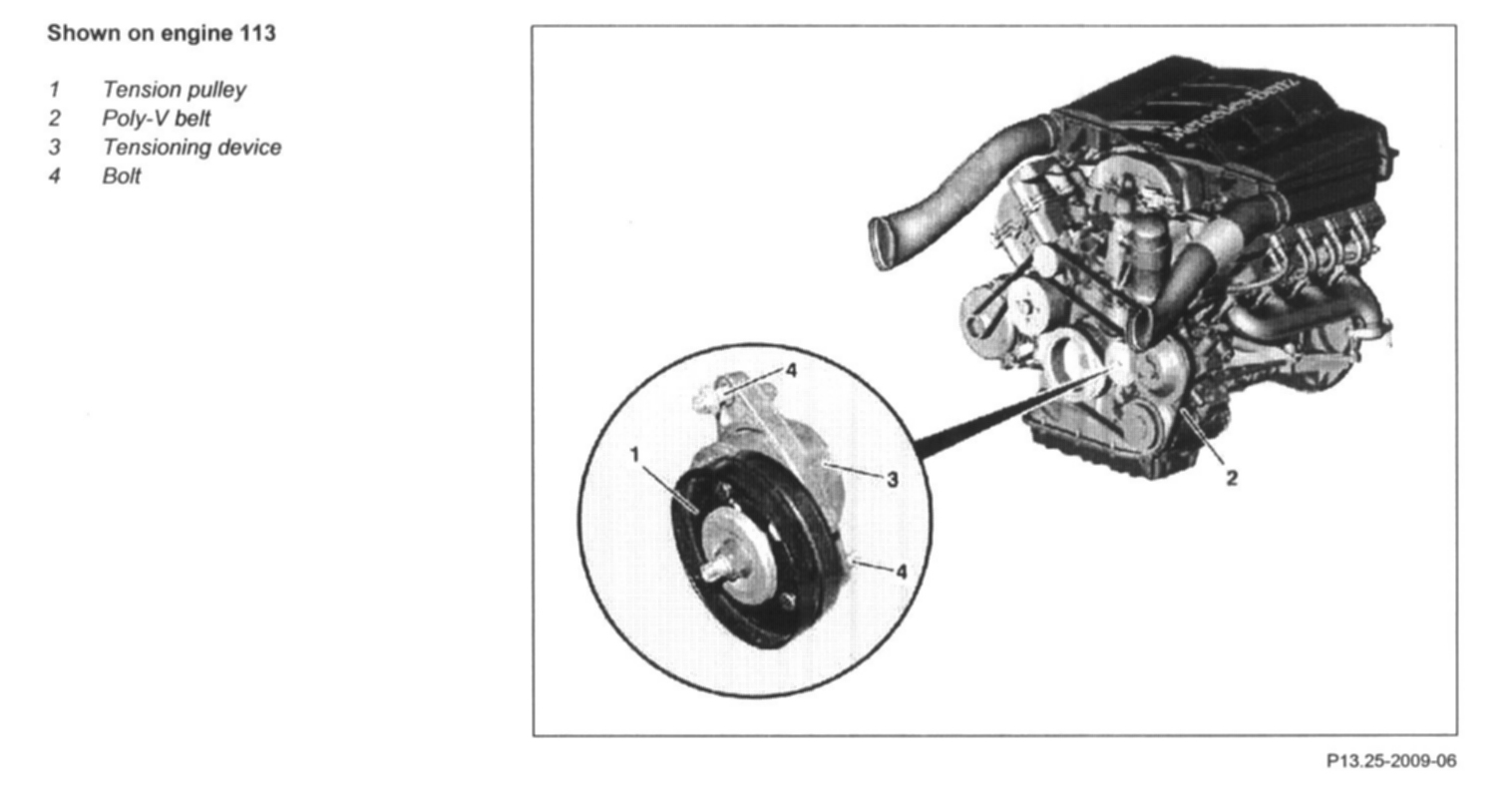

Shown On Engine 113:

1 Remove poly V-belt of supercharger
- Vehicles with supercharger
2 Remove poly V-belt (2)
3 Unbolt tensioning pulley (1) at tensioning device (3)
4 Unscrew bolts (4) of tensioning device
- Self-tapping bolt of belt tensioner to timing case cover
- Thread not pre-tapped: 35 N.m
- Thread pretapped: 25 N.m
- Bolt of belt tensioner to timing case cover: 35 N.m
5 Install in the reverse order
