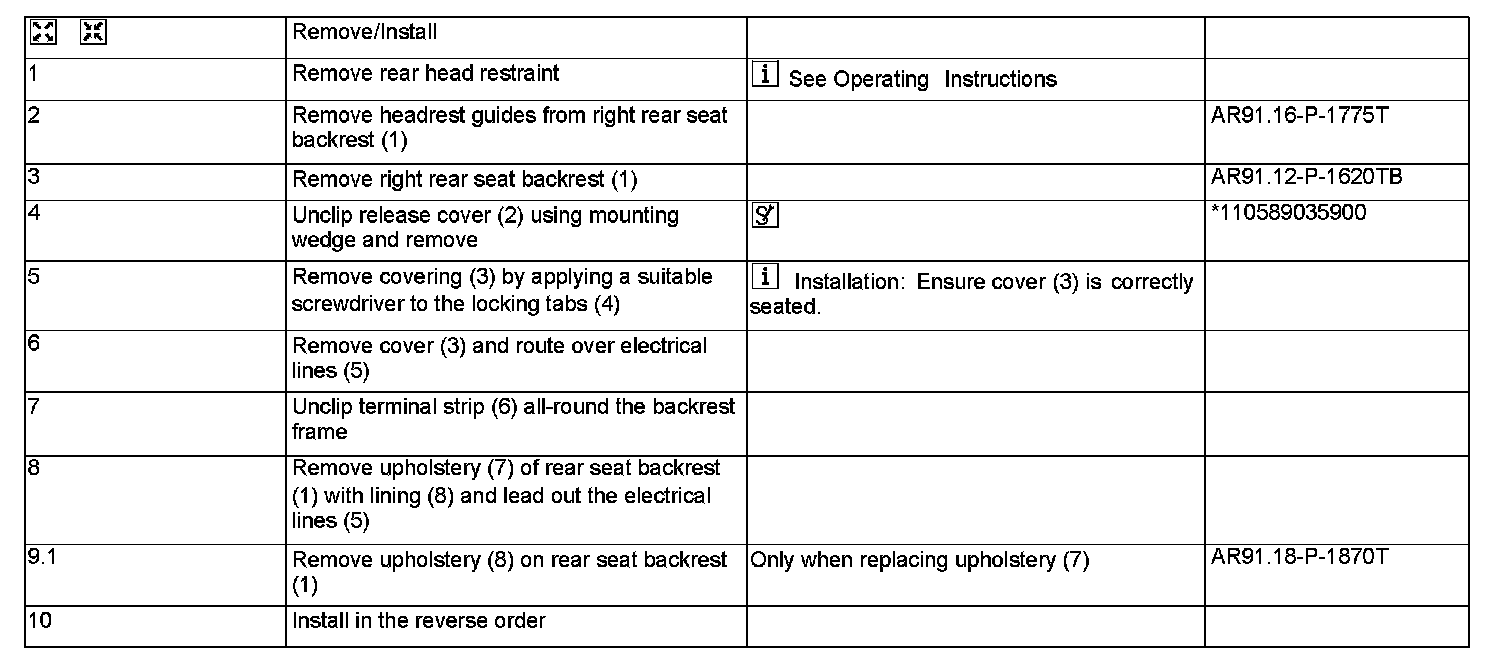

AR91.12-P-1030TD Remove/Install Upholstery of Right Rear Seat Backrest



AR91.12-P-1030TD Remove/Install Upholstery of Right Rear Seat Backrest

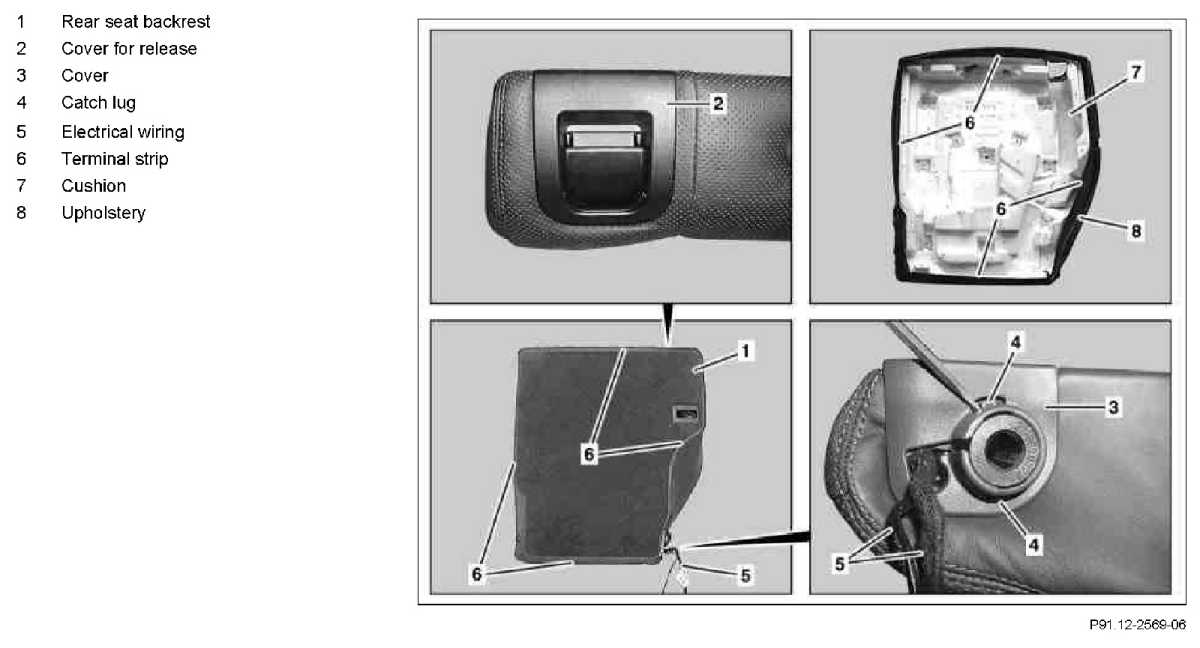

- Right rear backseat
