Home >> Mercedes Benz >> 2006 >> E 55 AMG Wagon (211.276) V8-5.5L SC (113.990) >> Repair and Diagnosis >> Body and Frame >> Seats >> Head Rest >> Service and Repair >> Removal and Replacement >> AR91.16-P-1800T Remove/Install Pneumatic Pump For Head Restraint Lowering Mechanism In Rear Seat Backrest

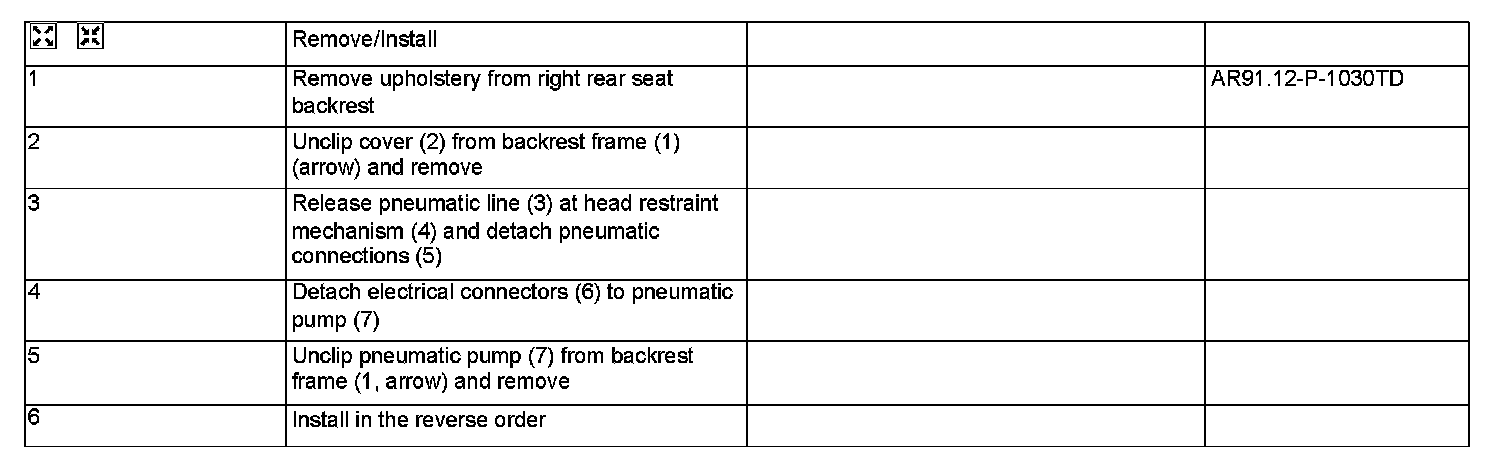

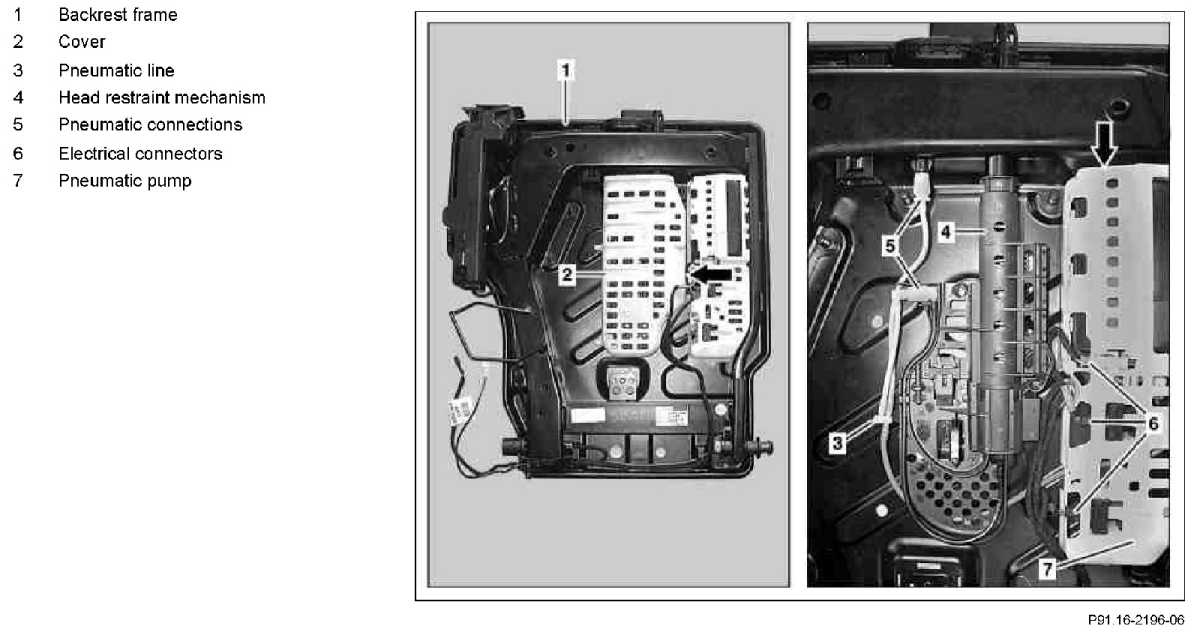

AR91.16-P-1800T Remove/Install Pneumatic Pump For Head Restraint Lowering Mechanism In Rear Seat Backrest



AR91.16-P-1800T Remove/Install Pneumatic Pump For Head Restraint Lowering Mechanism In Rear Seat Backrest
