Home >> Mercedes Benz >> 2006 >> E 55 AMG Wagon (211.276) V8-5.5L SC (113.990) >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Trunk / Liftgate >> Trunk / Liftgate Latch >> Service and Repair

Trunk / Liftgate Latch: Service and Repair

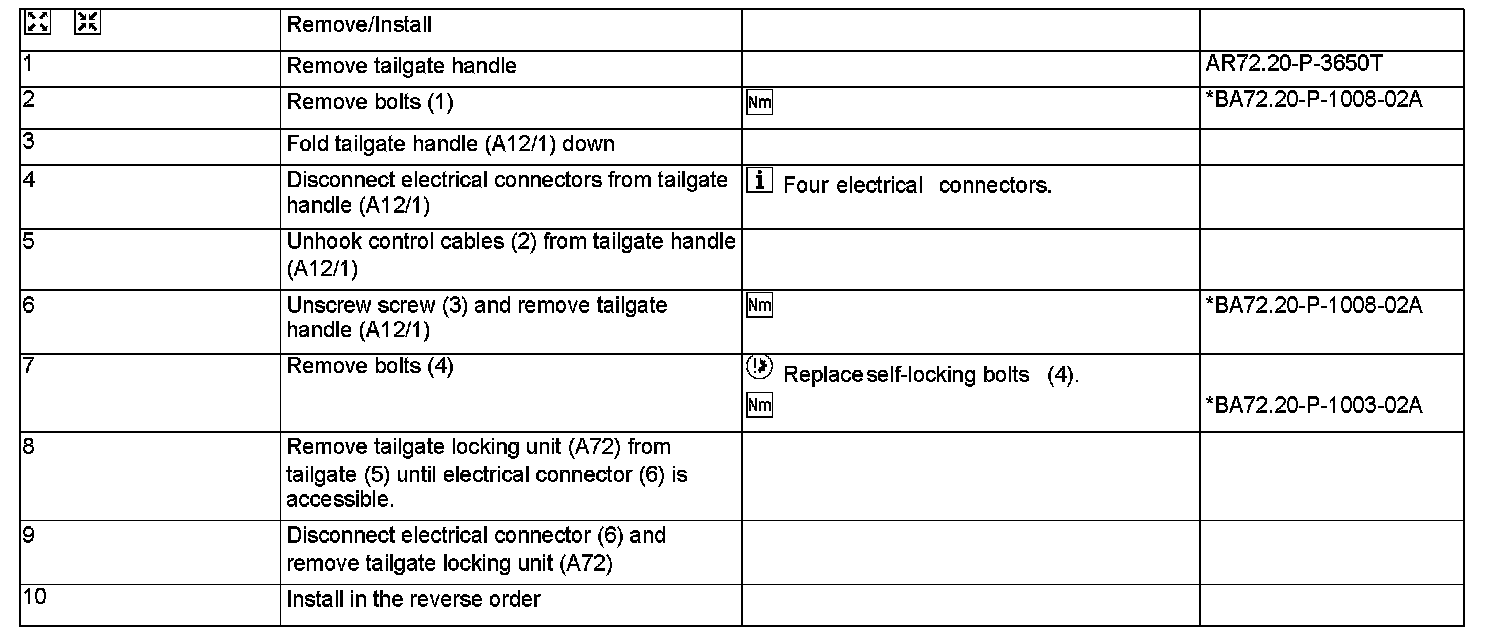

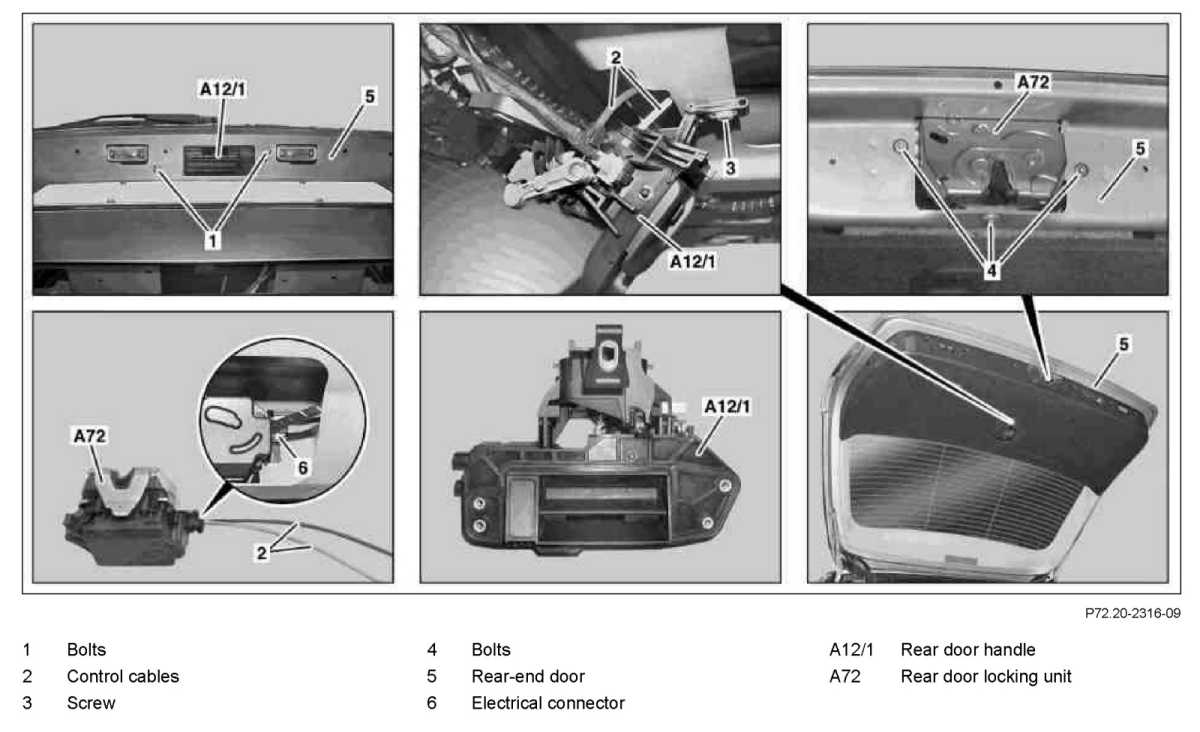

AR72.20-P-2556T Remove/Install Tailgate Locking Unit

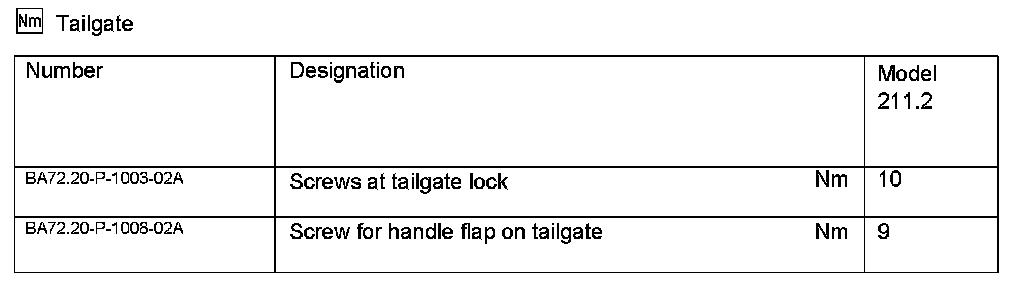

Tailgate:
