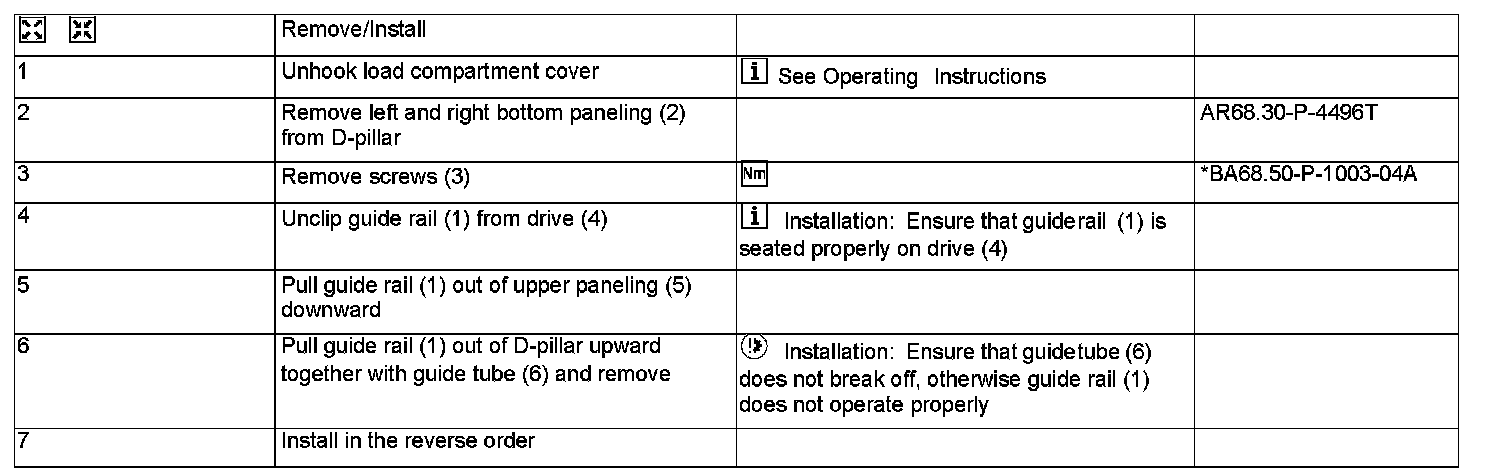

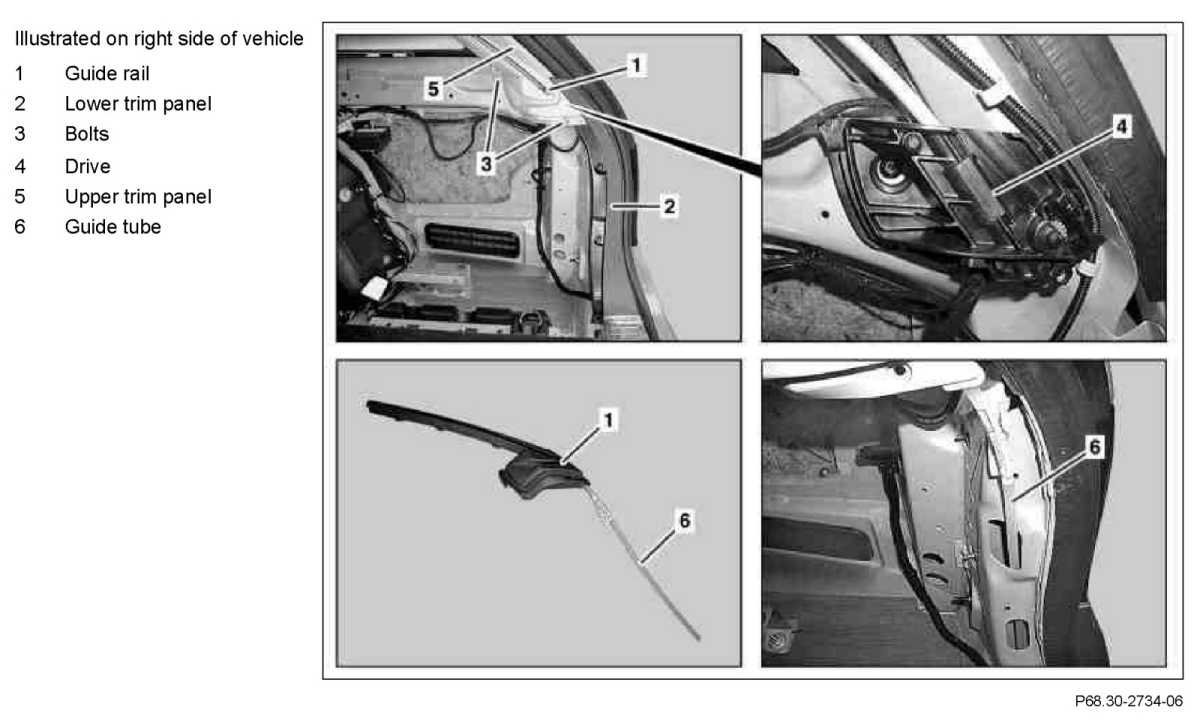

AR68.30-P-1100T Remove/Install Load Compartment Floor Cover Guide Rail
AR68.30-P-1100T Remove/Install Load Compartment Floor Cover Guide Rail
AR68.30-P-1100T Remove/Install Load Compartment Floor Cover Guide Rail

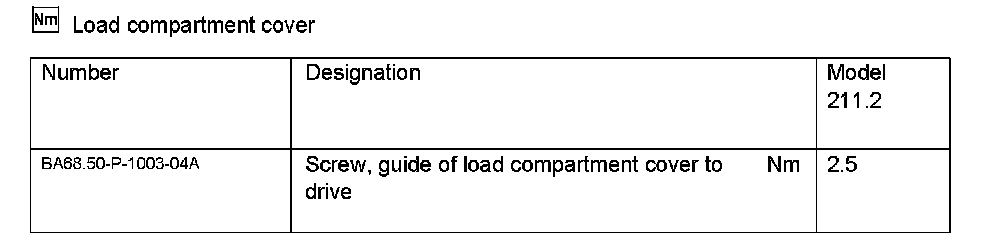

Load Compartment Cover:
