Home >> Mercedes Benz >> 2006 >> E 55 AMG Wagon (211.276) V8-5.5L SC (113.990) >> Repair and Diagnosis >> Body and Frame >> Bumper >> Rear Bumper >> Service and Repair >> Removal and Replacement

Removal and Replacement



AR88.20-P-2200TA Remove/Install Rear Bumper

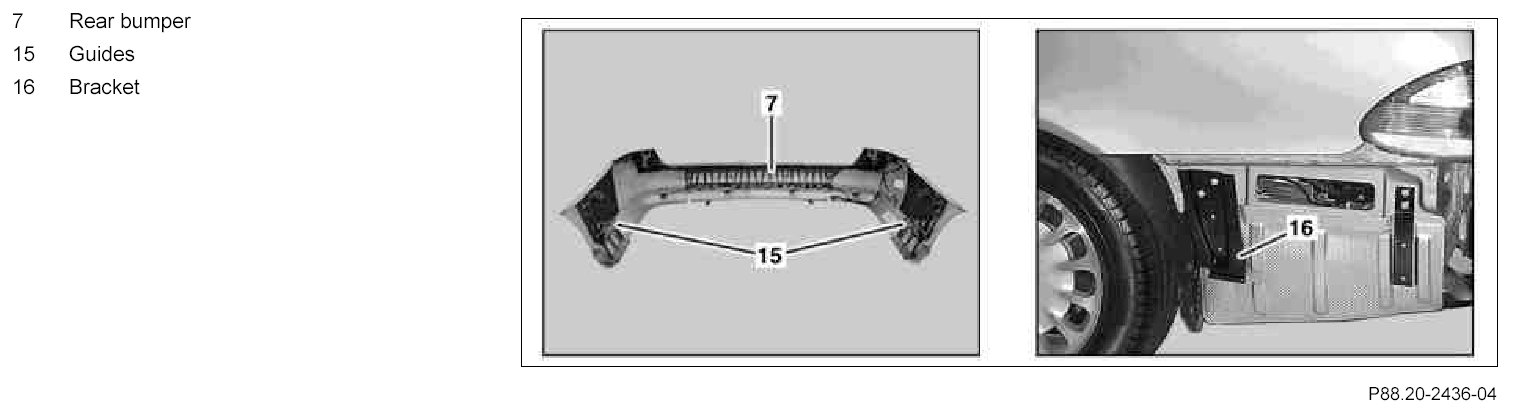

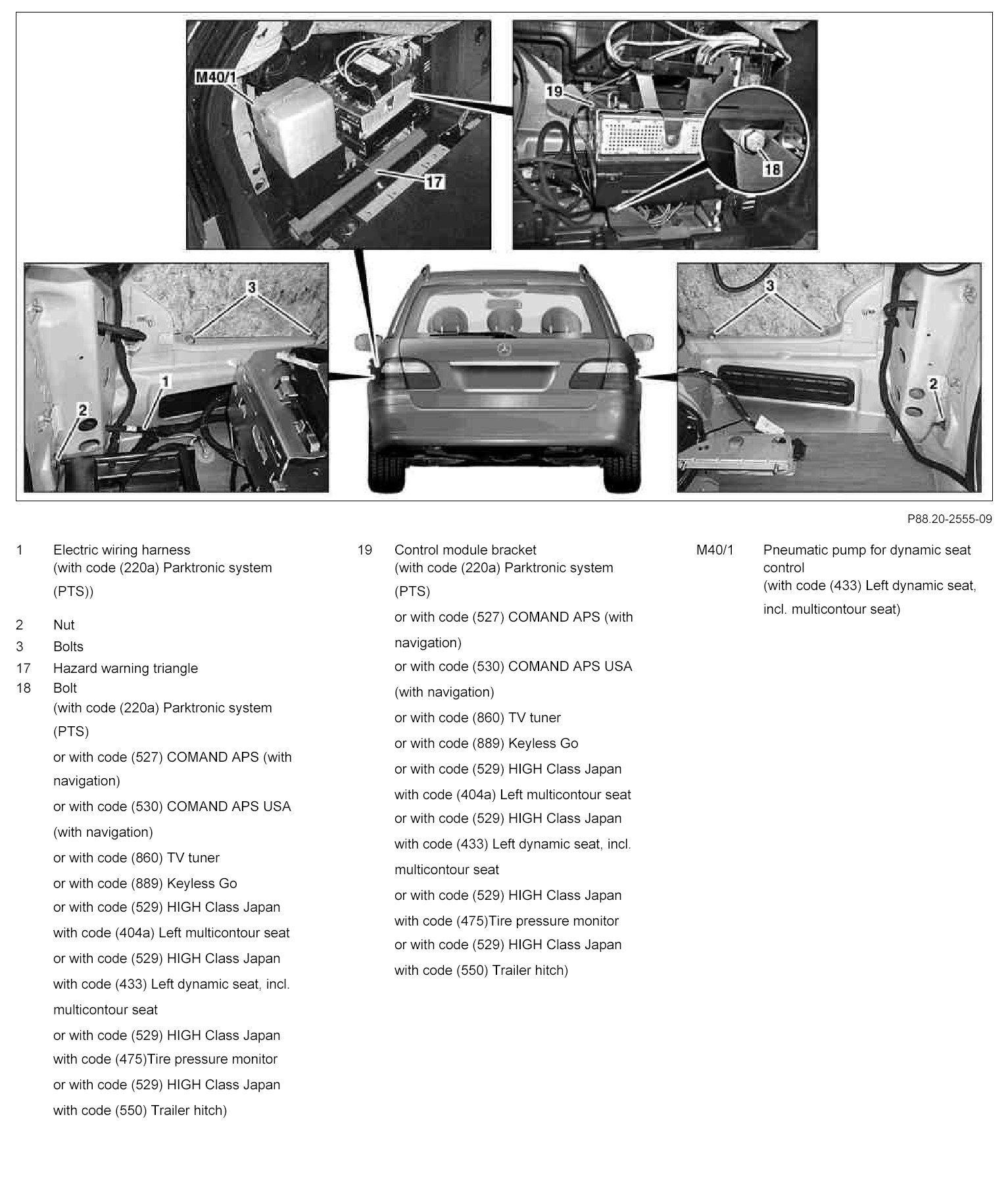

Component Identification:




Component Identification:




Component Identification:




Modification Notes:

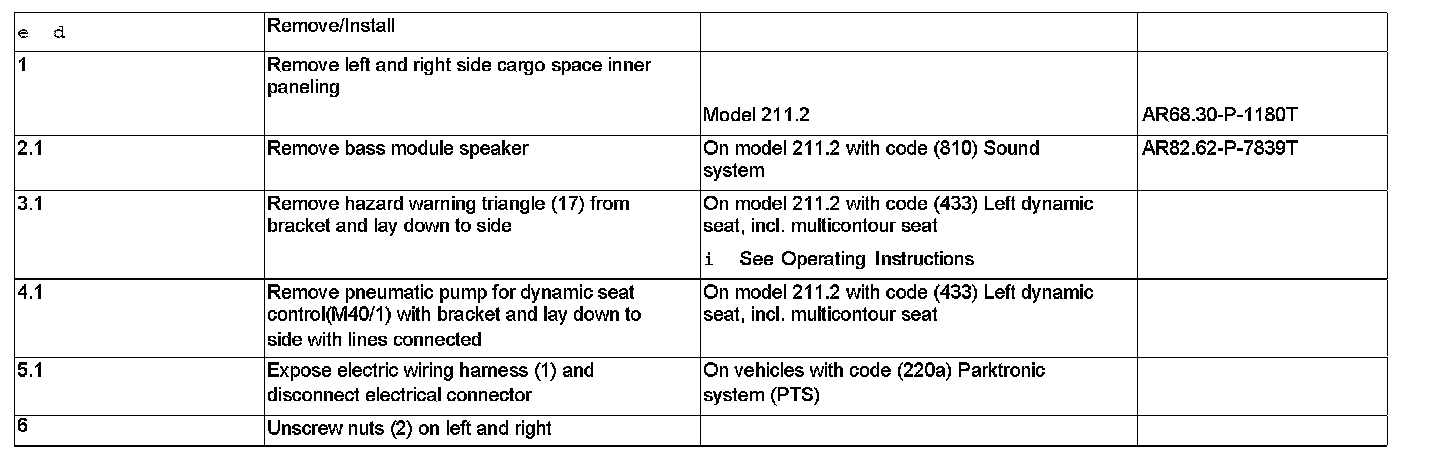

Steps 1 - 6:

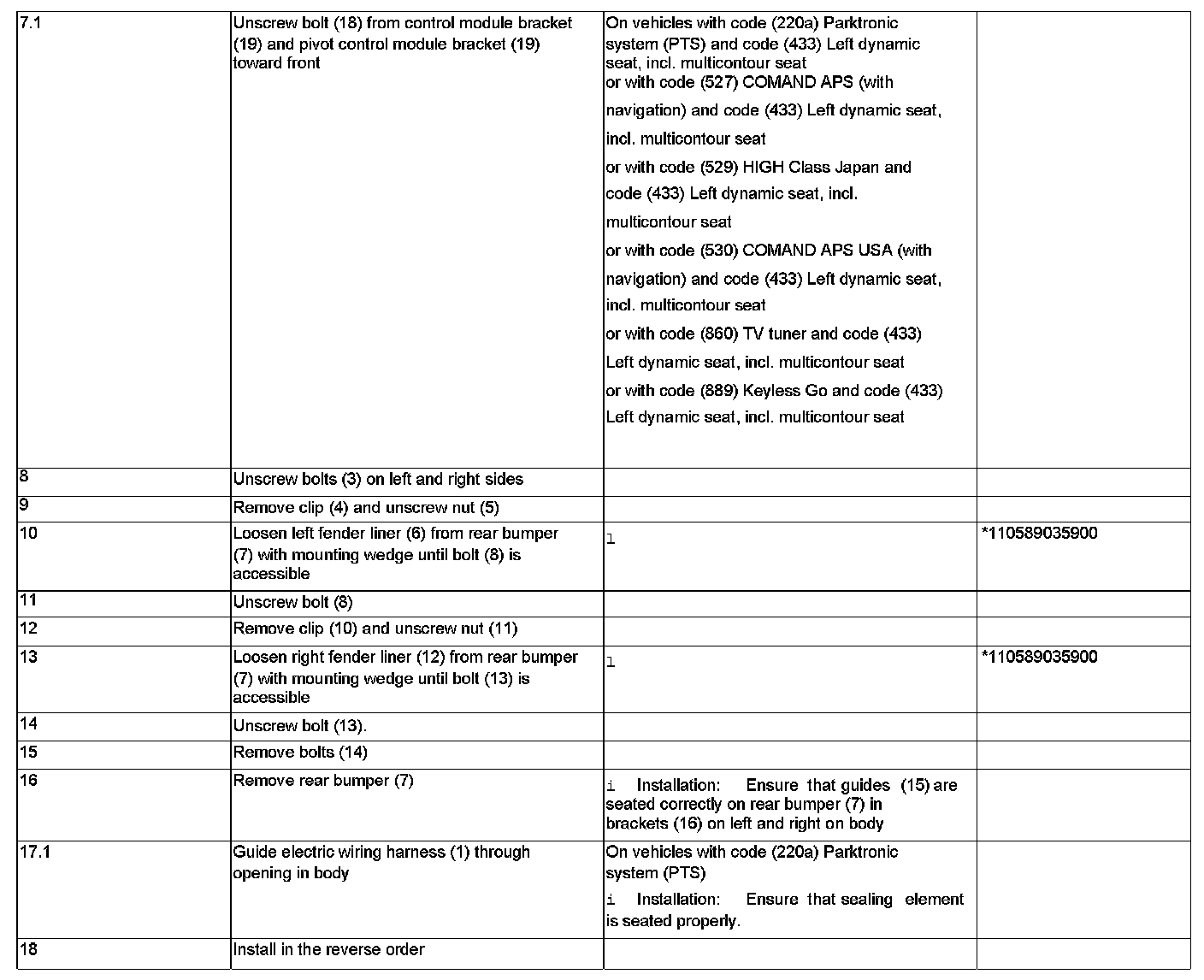

Steps 7.1 - 18:

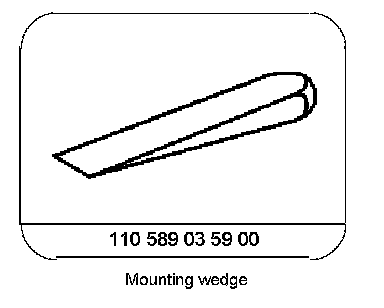

Special Tools:
