AR82.62-P-7876T Remove/Install Loudspeaker In Headliner

AR82.62-P-7876T Remove/Install Loudspeaker In Headliner
- with CODE (810) Sound system







1 Disconnect ground cable of battery

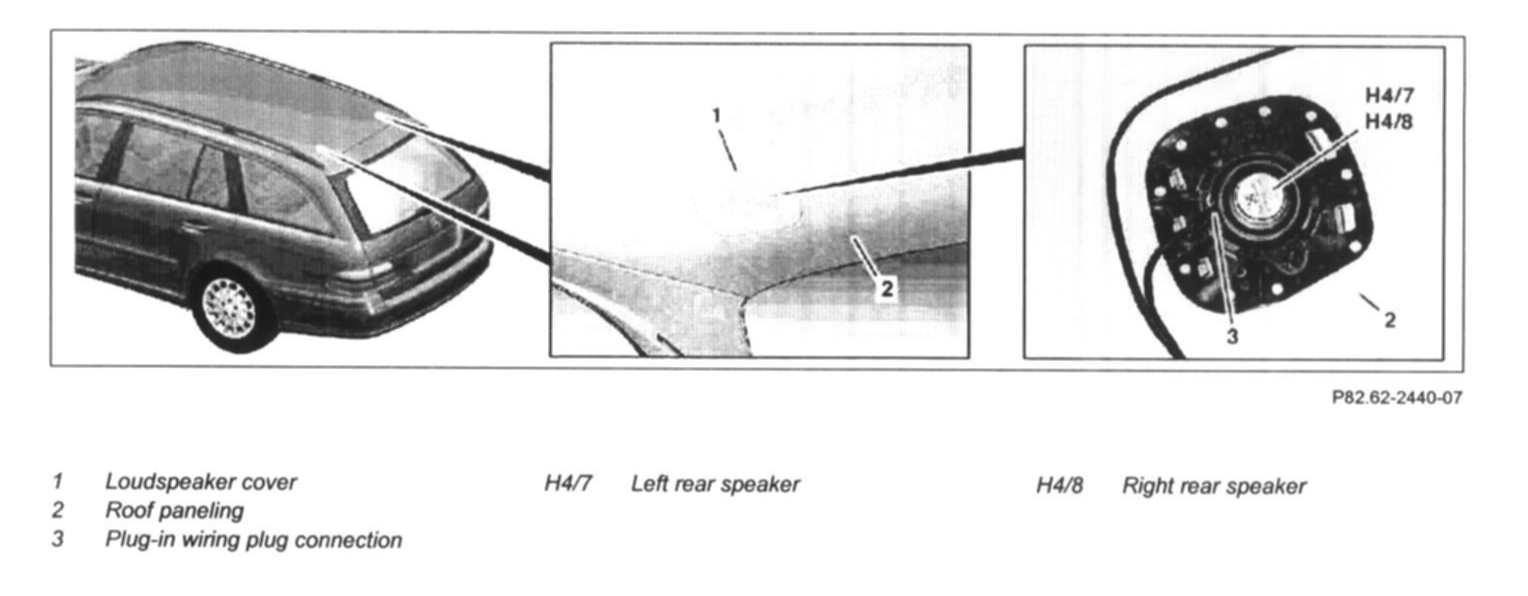

2 Remove left or right speaker cover (1)
3 Undo two screws and remove the left rear speaker (H4/7) or right rear speaker (H4/8) downwards out of the headliner (2) until the electrical connector (3) is accessible
4 Disconnect electrical connector (3) and take off left rear speaker (H4/7) or right rear speaker (H4/8)
5 Install in the reverse order
