AR82.62-P-7839T Remove/Install Bass Module Speaker

AR82.62-P-7839T Remove/Install Bass Module Speaker
- with CODE (810) Sound system

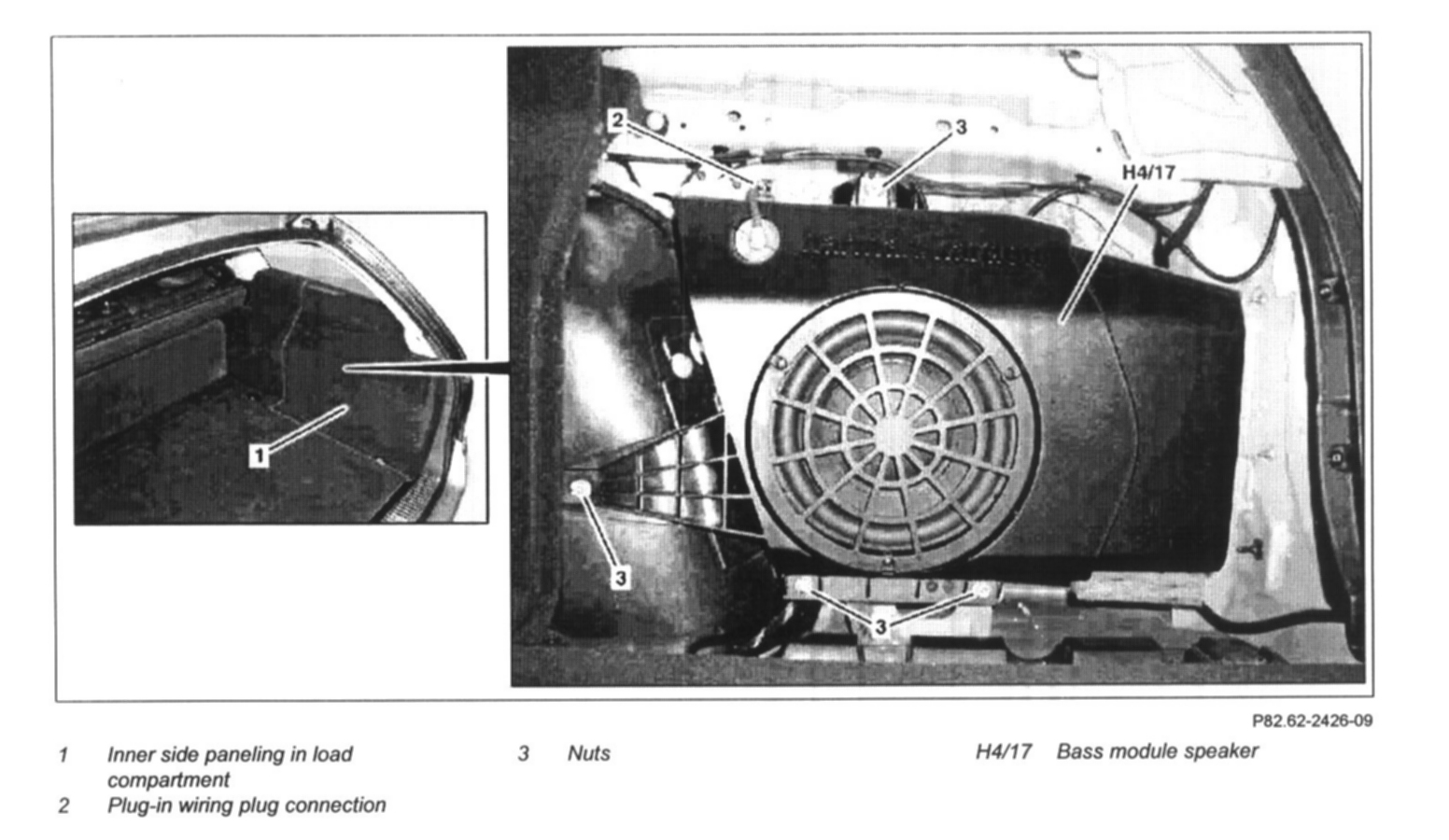

1 Disconnect ground cable of battery
2 Remove right inner paneling of load compartment at side (1)
3 Disconnect electric connector (2)
4 Unscrew nuts (3) and remove bass module speaker (H4/17)
5 Install in the reverse order
