Procedures

AZ82.62-P-0002TA Retrofit Sound System
- with CODE (810) Sound system
- AMG high-end sound system

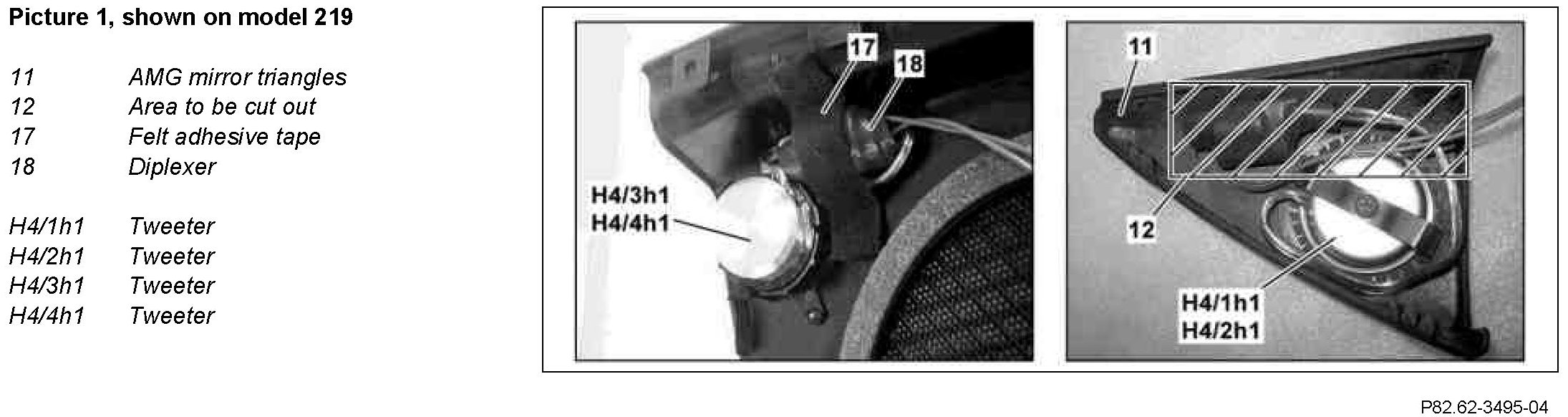

Component Identification:

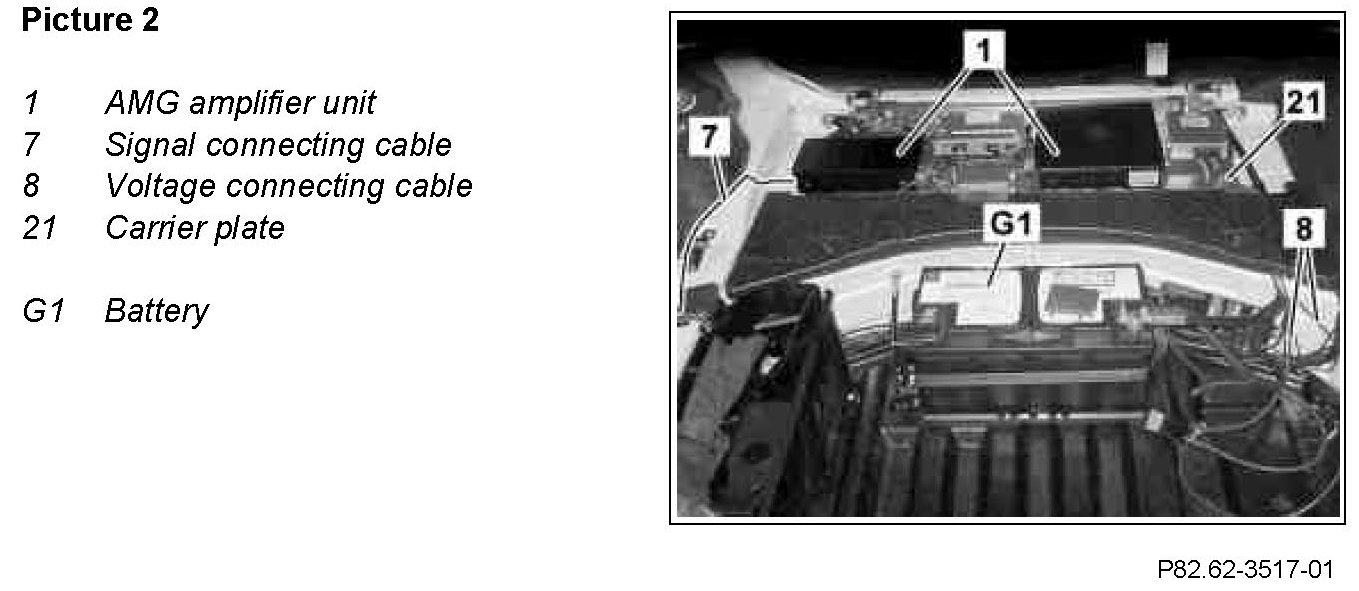

Component Identification:

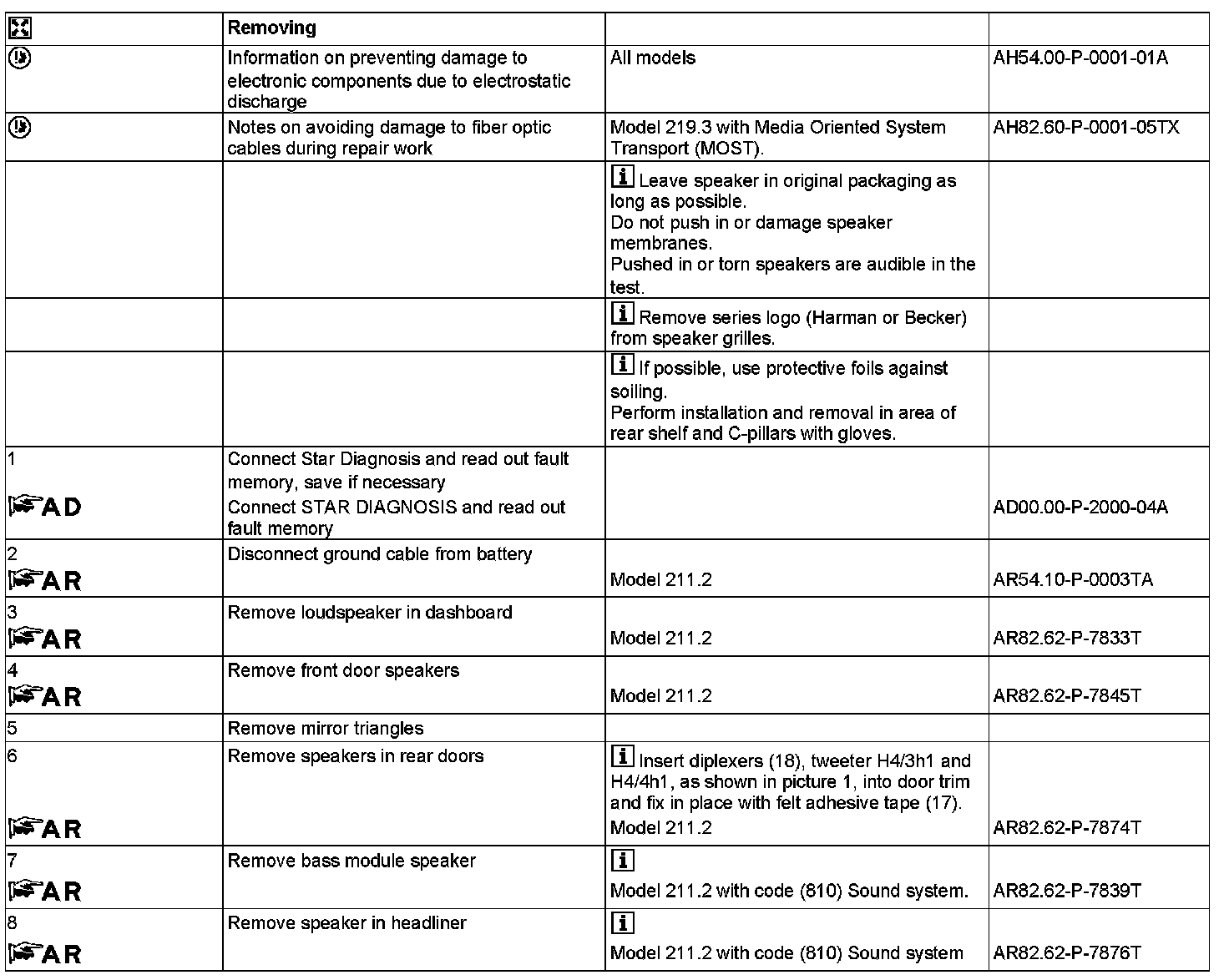

Steps 1 - 8:

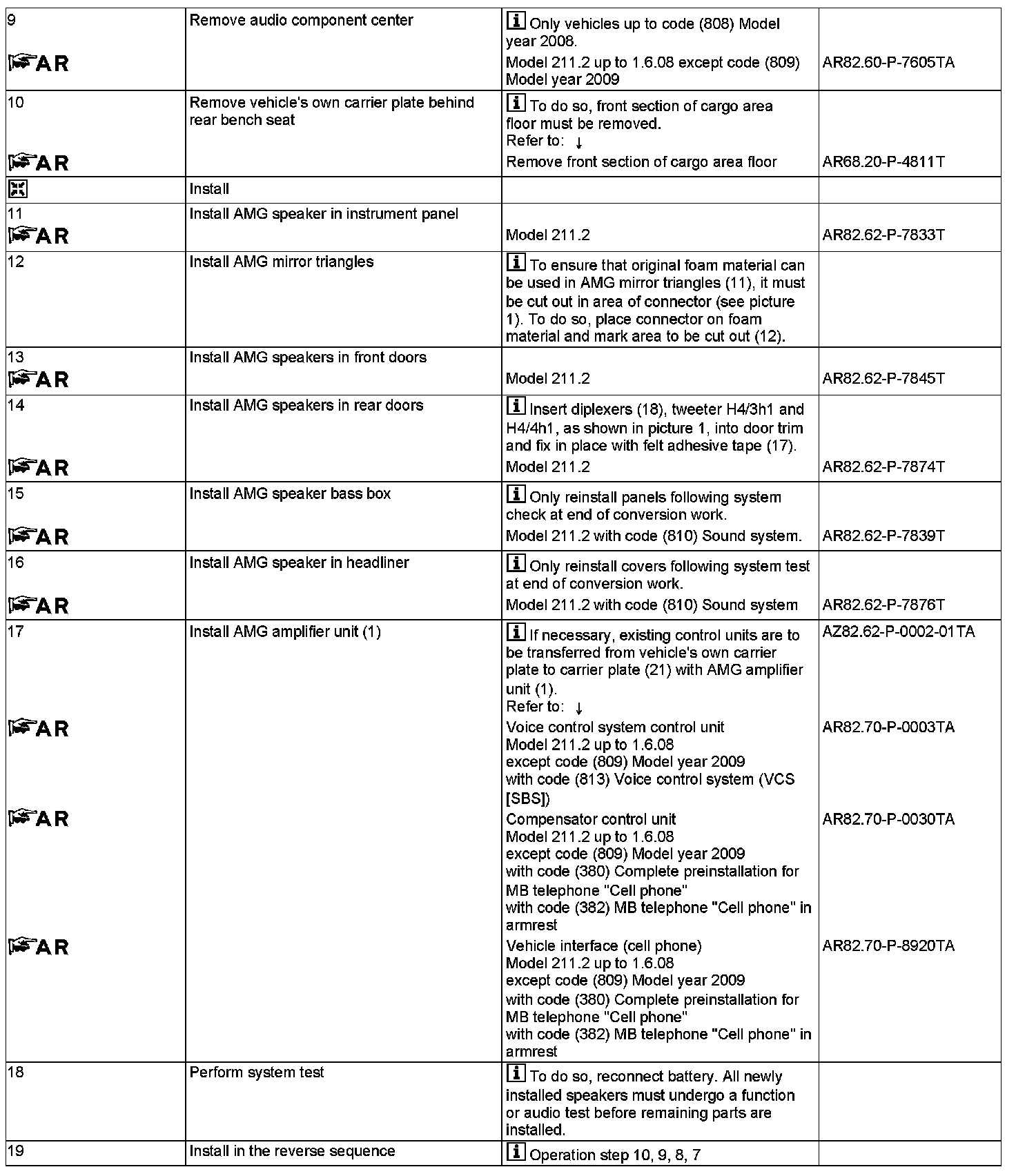

Steps 9 - 19:

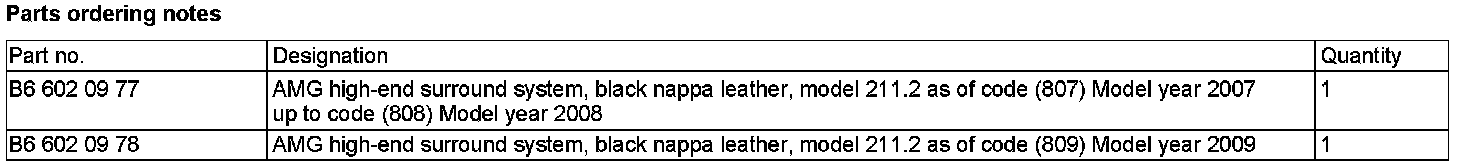

Parts Ordering Notes:
