AZ82.60-P-0007-01TA Retrofit Digital TV Tuner Control Unit

AZ82.60-P-0007-01TA Retrofit Digital TV Tuner Control Unit
- with CODE (860) TV tuner

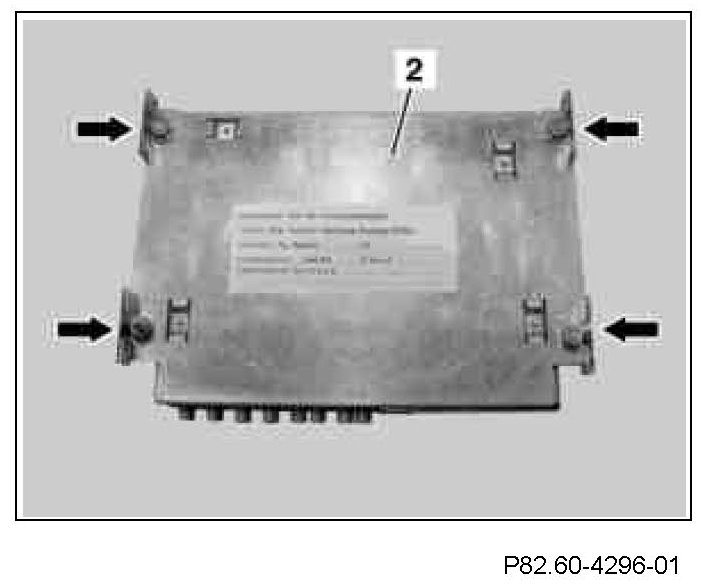

1 Tighten fastening clamps (arrows) as shown to digital TV tuner (2).

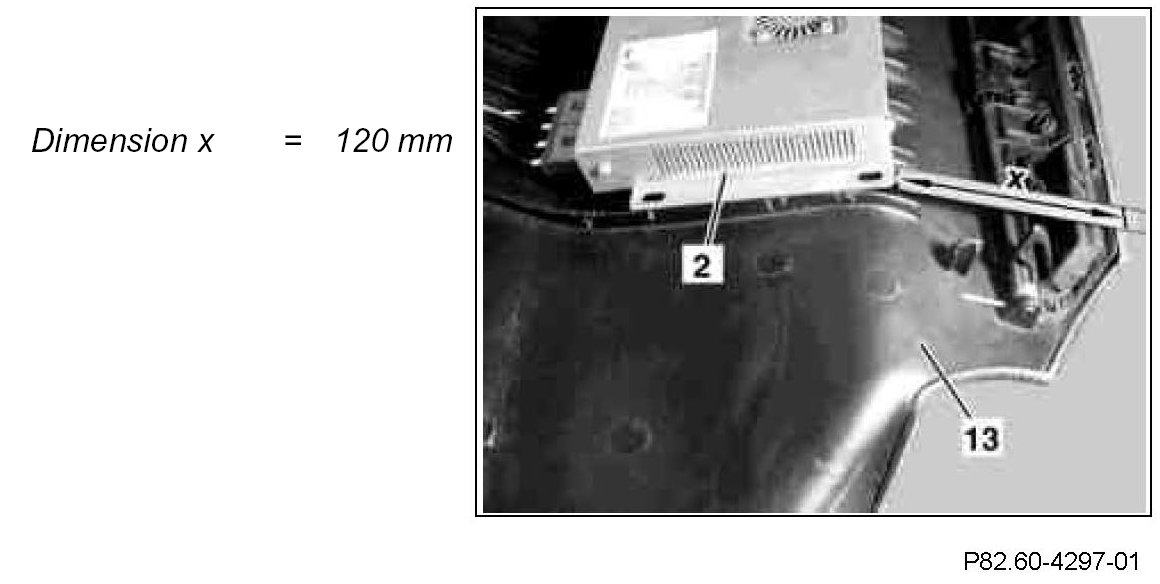

2 Connect wiring harness to digital TV tuner (2) and mount the TV tuner as shown onto the stiffening rib of the storage compartment flap (13) and press together.

Component Identification:

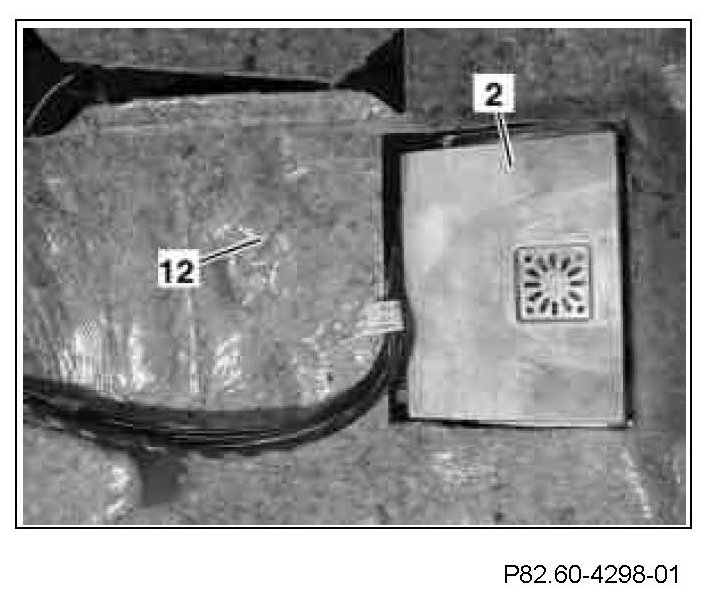

3 Place insulating foil (12) onto storage compartment flap and cut out digital TV tuner (2).
4 Bond insulating foil firmly back onto flap.
