AZ54.65-P-0001-03TT Installing and Connecting Sensors

AZ54.65-P-0001-03TT Installing And Connecting Sensors

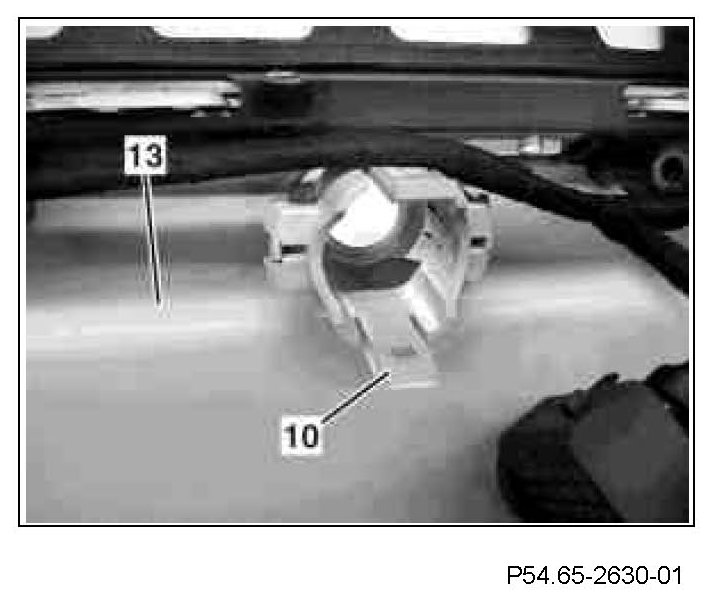

1. Clip sensor holder (10) into ram strip (13).







2. Clip sensors (12) into sensor holder (10) so that the connecting coupling is inside pointing to the left side of the vehicle (arrow).

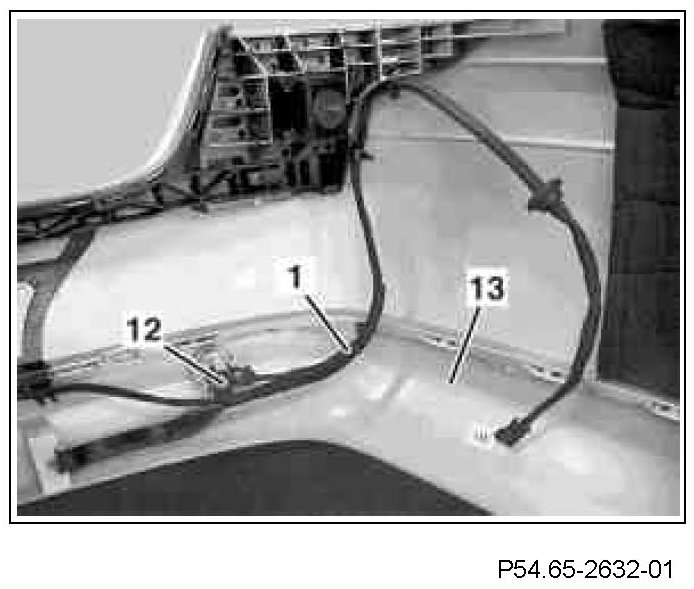

3. Clip ram strip (13) onto bumper and connect bumper wiring harness (1) to sensors (12).
The connecting coupling with the grommet must be on the left-hand side of the bumper.

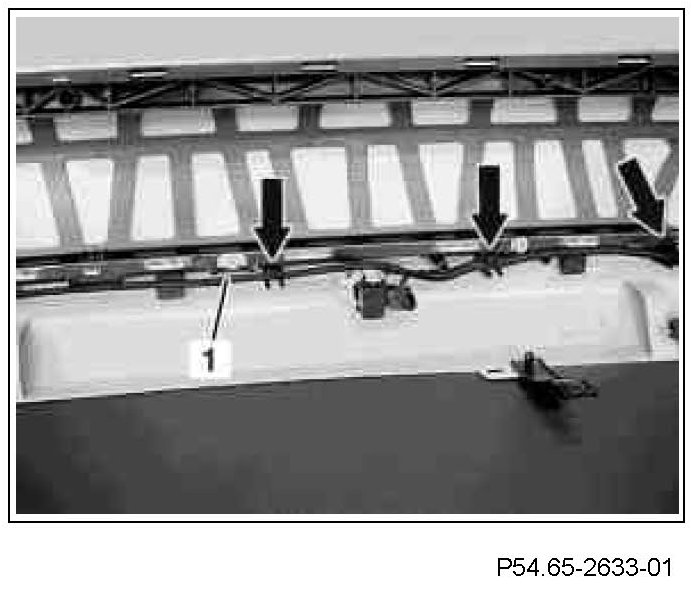

4. Hook wiring harness (1) into the holders (arrows) provided on the bumper.
