AR54.65-P-0002TA Remove/Install Parktronic System (PTS) Sensors In Rear Bumper

AR54.65-P-0002TA Remove/Install Parktronic System (PTS) Sensors In Rear Bumper
- with CODE (220) Parktronic system (PTS)

Shown On Inner Left Sensor, Rear Bumper:

1 Disconnect ground cable of battery
2 Separate electrical plug connection (3)
3 Use the unlocking tool to unlock the inner left sensor, rear bumper (A43b9) from the bracket (2) in the direction of the arrow

See "Special Tools" given below.

4 Remove inner left sensor, rear bumper (A43b9) from the rear bumper (1)

NOTE: Installation: Check sealing ring (4) and replace if necessary in the event of damage

5 Install in the reverse order

Special Tools

AR54.65-P-0002TA Remove/Install Parktronic System (PTS) Sensors In Rear Bumper

Shown On Inner Left Sensor, Rear Bumper:

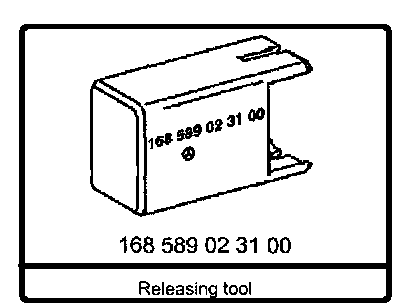

Releasing Tool, P/N # 168 589 02 31 00:
