Home >> Mercedes Benz >> 2006 >> E 55 AMG Wagon (211.276) V8-5.5L SC (113.990) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Description and Operation >> GF80.50-P-4107TA Glass Breakage Sensor, Location/Purpose/Design/Function

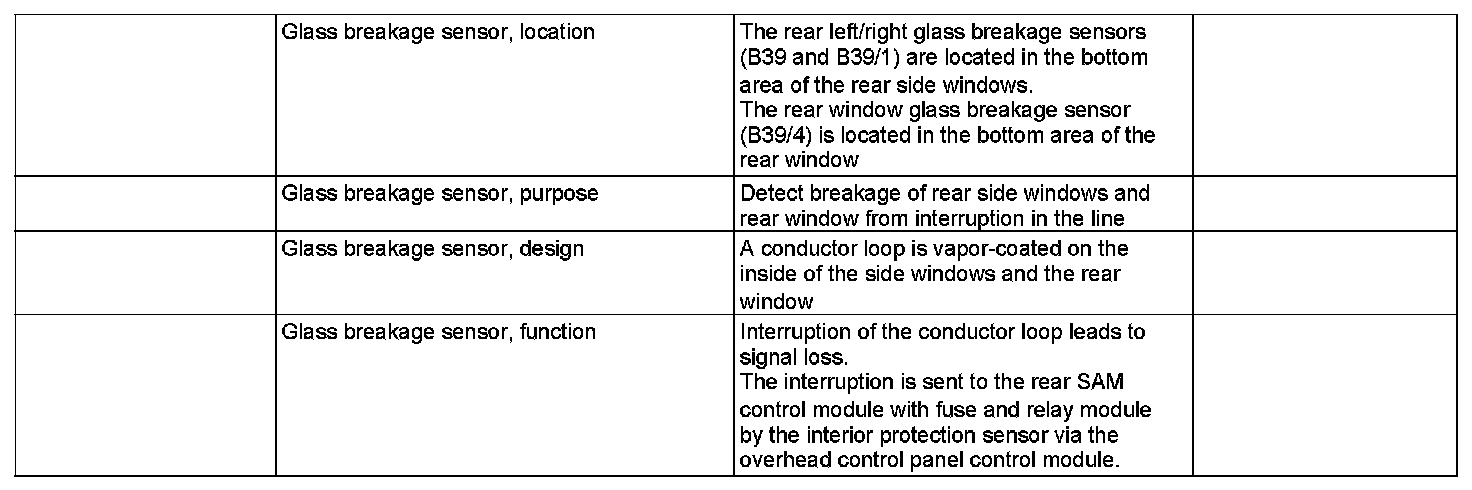

GF80.50-P-4107TA Glass Breakage Sensor, Location/Purpose/Design/Function



GF80.50-P-4107TA Glass Breakage Sensor, Location/Purpose/Design/Function
- with CODE (551a) Anti-theft alarm system (ATA)
- with CODE (882b) Interior motion sensor (only with anti-theft alarm system)

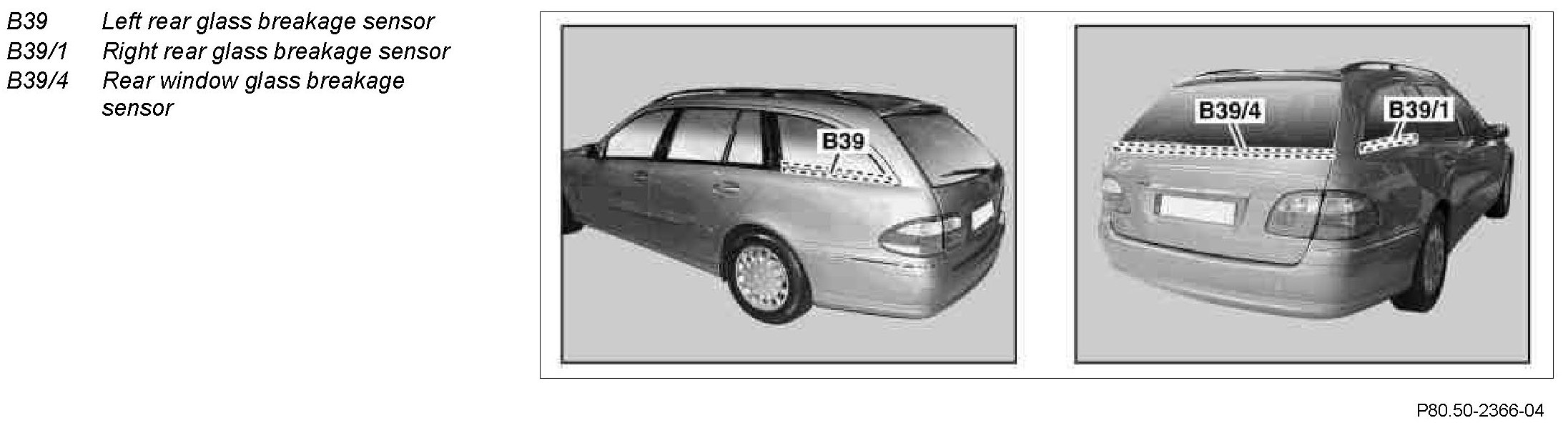

Component Identification:
