AR82.62-P-7200T Remove/Install Blocking Circuit of Rear Window Antenna




AR82.62-P-7200T Remove/Install Blocking Circuit of Rear Window Antenna
- with CODE (521) MB Audio 50 radio (without navigation)
- with CODE (525) MB Audio 50 APS radio
- with CODE (526) COMAND (without navigation)
- with CODE (530) COMAND APS (with navigation system)
- with CODE (761) Radio remote control with reduced range without panic button

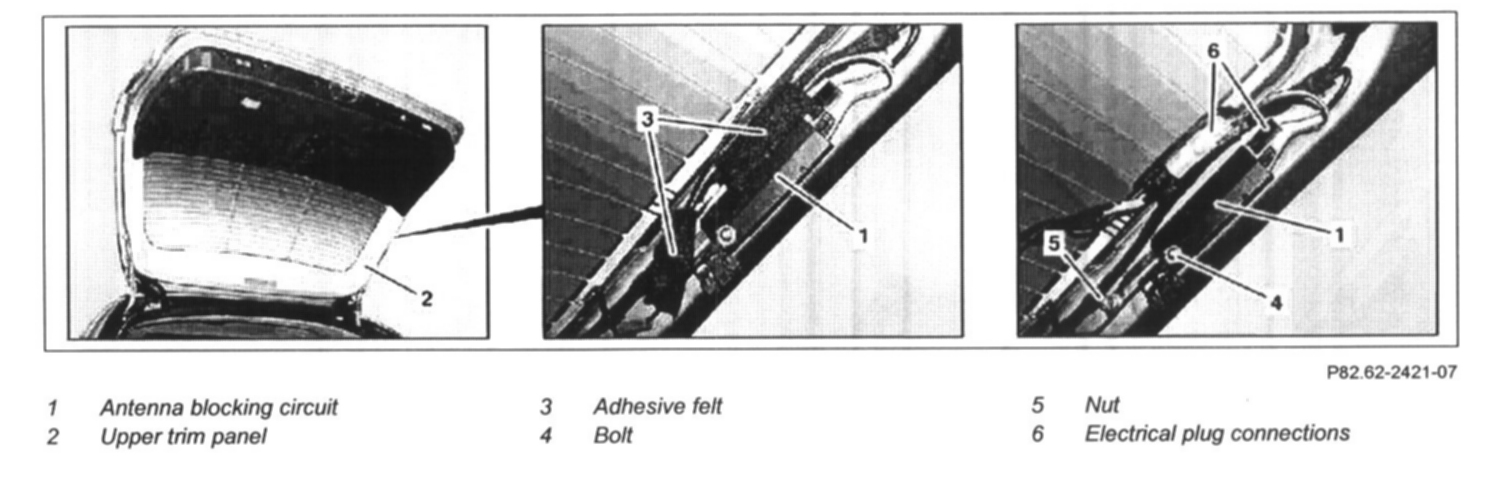

1 Remove liner on tailgate

NOTE: Only remove top paneling (2)

2 Disconnect ground cable of battery
3 Remove adhesive felt (3)
4 Unscrew screw (4)
5 Unscrew nut (5)
6 Separate electrical connectors (6)
7 Unclip antenna blocking circuit (1) from rear end door using longitudinal wedge and remove

CAUTION: Unclip carefully risk of breaking latching hook on antenna blocking circuit (1)

See "Special Tools" given below.

8 Install in the reverse order

Special Tools


Longitudinal Wedge P/N # 115 589 03 59 00:
