AR82.62-P-8302T Remove/Install TV Antenna Amplifier

AR82.62-P-8302T Remove/Install TV Antenna Amplifier
- with CODE (860) TV tuner







1 Remove liner on tailgate

NOTE: Only remove top paneling

2 Disconnect ground cable of battery

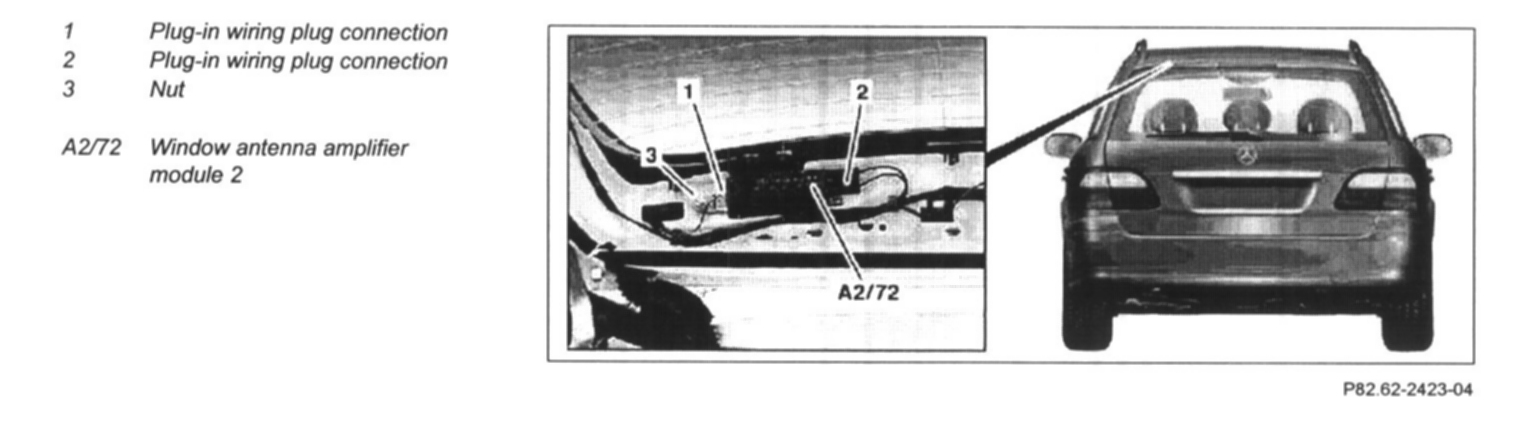

3 Disconnect electrical connector (1, 2) from amplifier module 2, windshield antenna (A2/72)
4 Unscrew nut (3) and remove amplifier module 2 windshield antenna (A2/72)
5 Install in the reverse order
