AR82.62-P-8300TB Remove/Install Antenna Amplifier Module

AR82.62-P-8300TB Remove/Install Antenna Amplifier Module
- Right Side
- with CODE (860) TV tuner
- with CODE (889) Keyless go

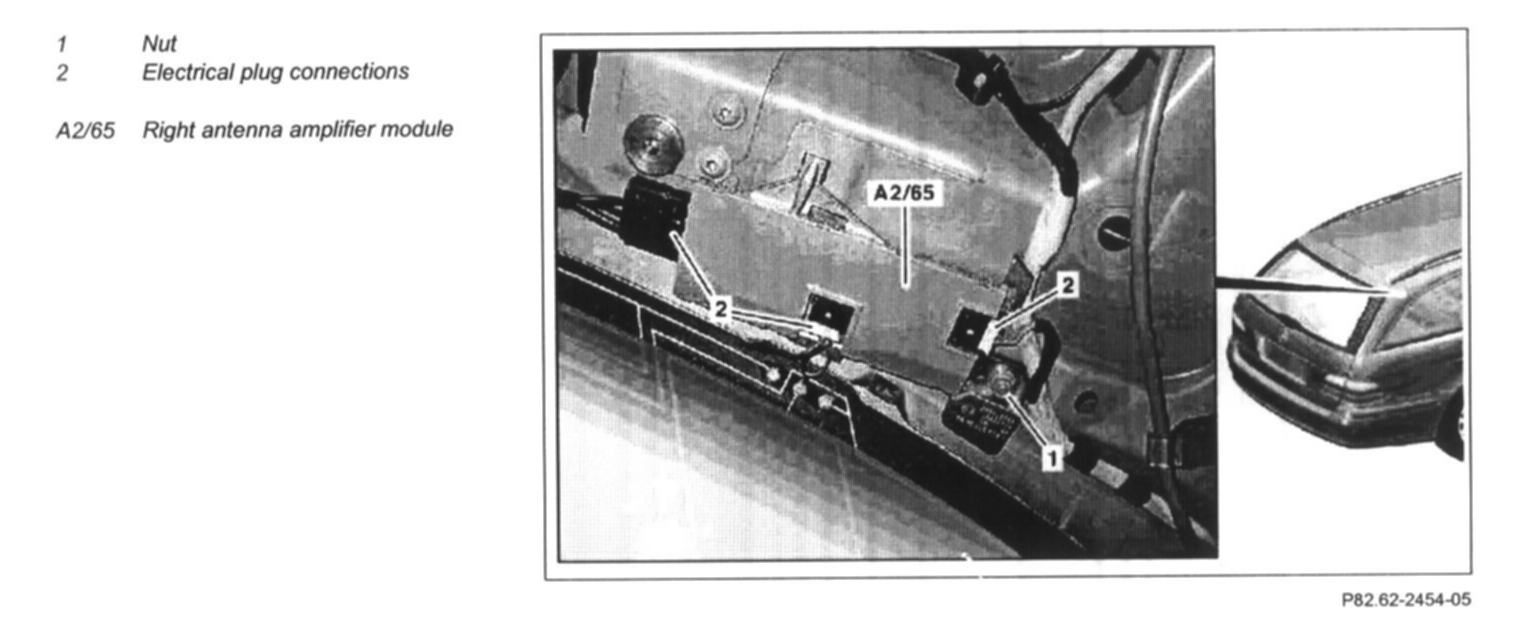

1 Remove paneling on right D-pillar
2 Unscrew nuts (1)
3 Disconnect electrical connectors (2) and right antenna amplifier module (A2/65)
4 Install in the reverse order
