AR82.62-P-8300TA Remove/Install Antenna Amplifier Module

AR82.62-P-8300TA Remove/Install Antenna Amplifier Module

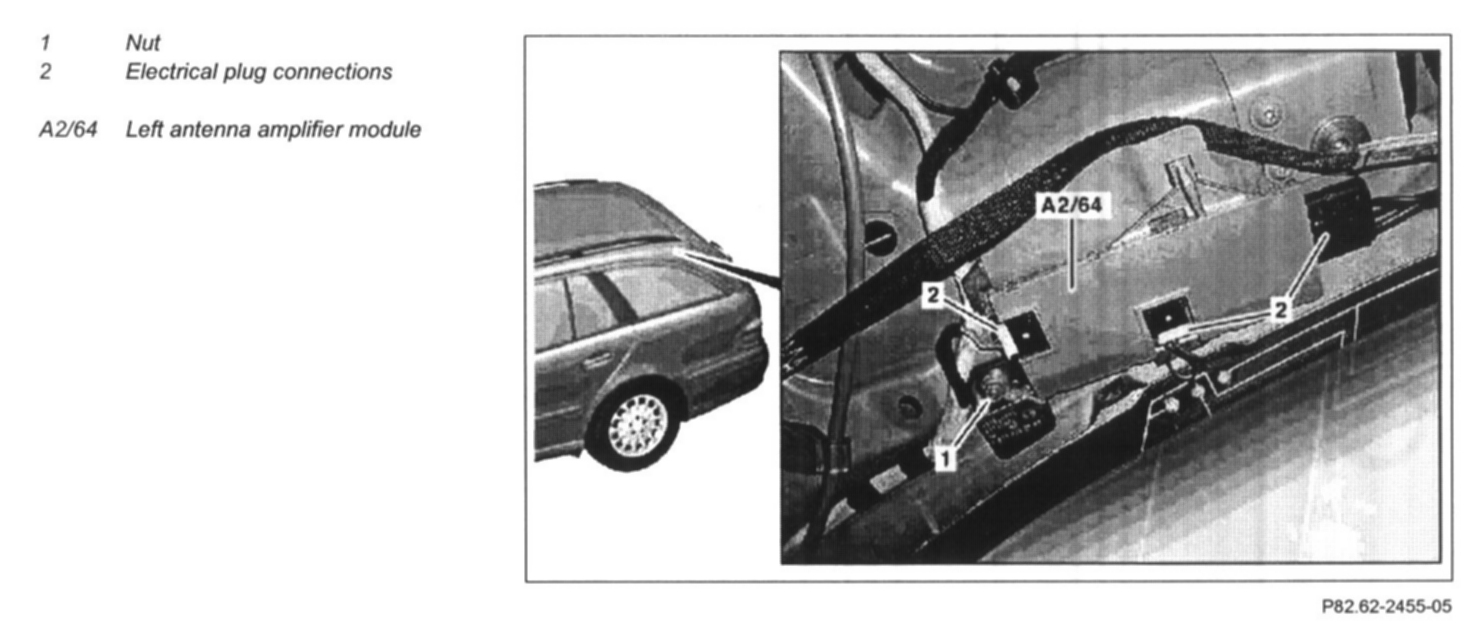

- Left antenna amplifier module






1 Remove paneling on left
2 Unscrew nuts (1)
3 Disconnect electrical connectors (2) and left antenna amplifier module (A2/64)
4 Install in the reverse order
