GF82.62-P-3135TM Right Antenna Amplifier, Component Description

GF82.62-P-3135TM Right Antenna Amplifier, Component Description
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (530) COMAND APS USA (with navigation system)

Component Identification:

Location

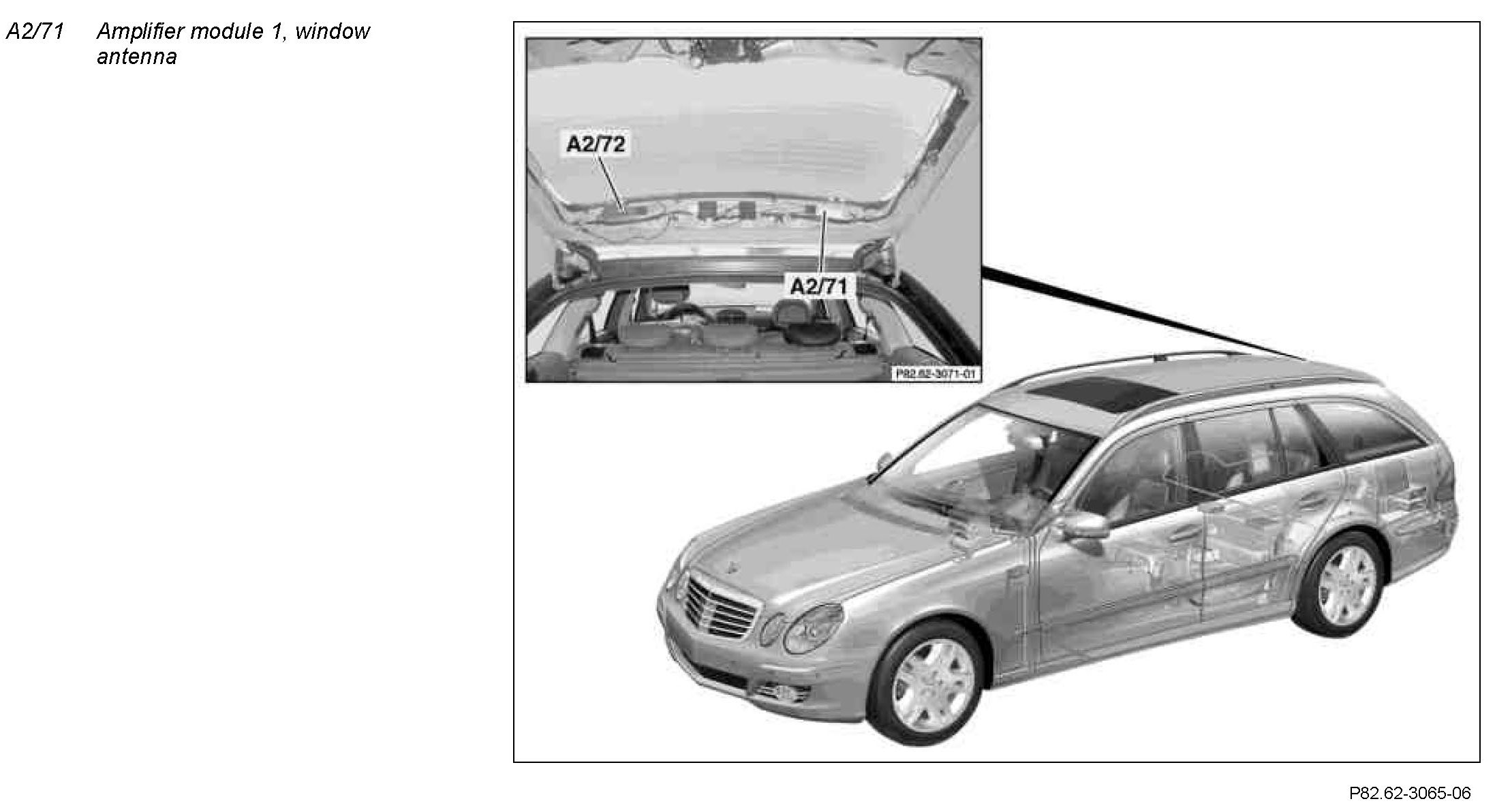

The amplifier module 1, window antenna is installed in the tailgate on the right above the rear window.

Tasks
Amplifying the FM signals supplied by the left antenna amplifier module (A2/64) and forwarding them to the audio gateway control unit (N93/1).
