AN82.85-P-0003TD Retrofit Comand With APS Navigation System

AN82.85-P-0003TD Retrofit COMAND With APS Navigation System
- except CODE (596) Heat-insulating glass
- except CODE (494) USA version
- except CODE (498) Japan version
- Vehicles as of model year 2003 (code 803) with Audio 20 CD radio

Component Identification:

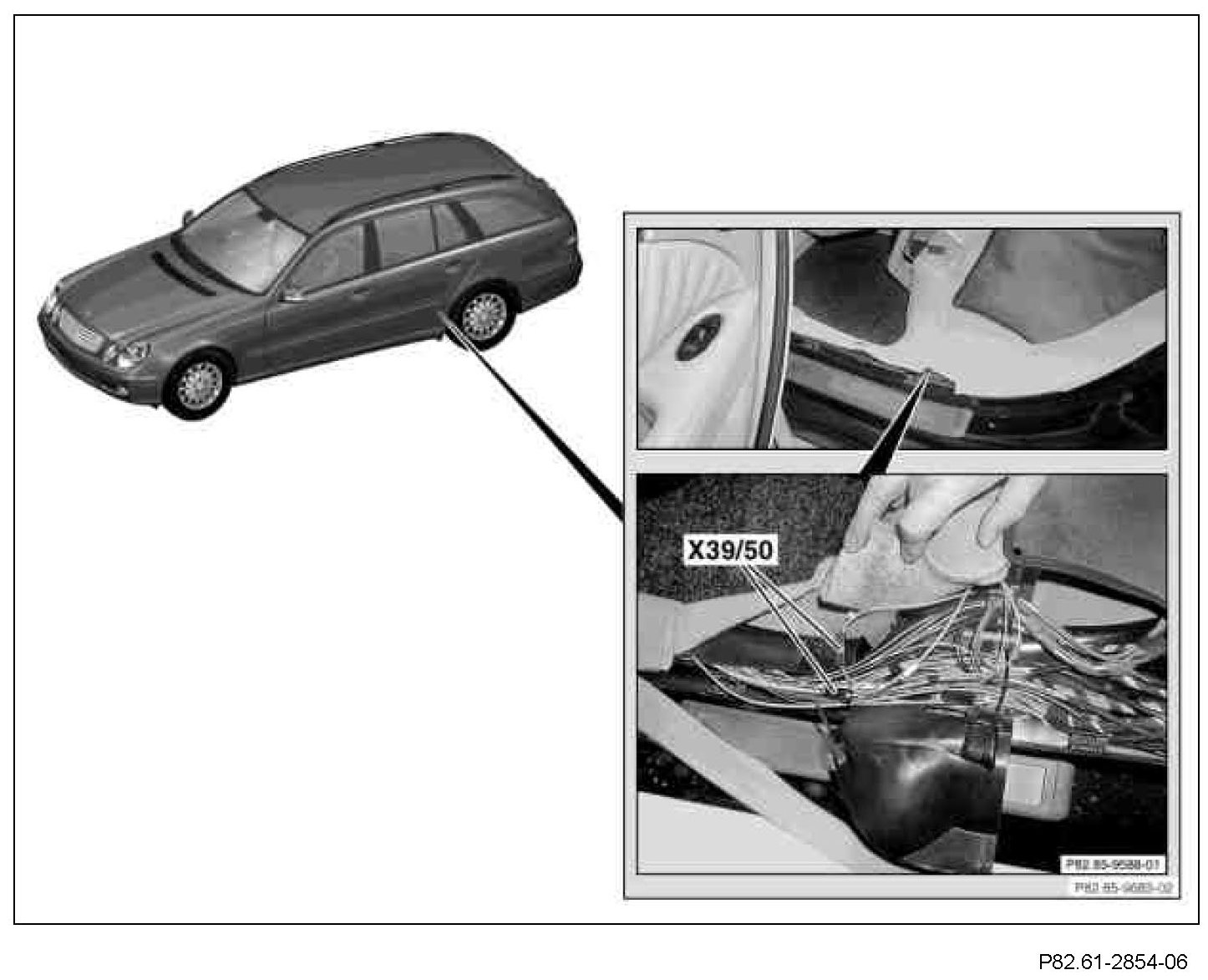

The fiber optic cable connector (MOST) (X39/50) is located in the rear cable duct, left of to the rear bench seat.
To perform step 22, check whether the fiber optic cable connector (MOST) (X39/50) is installed.

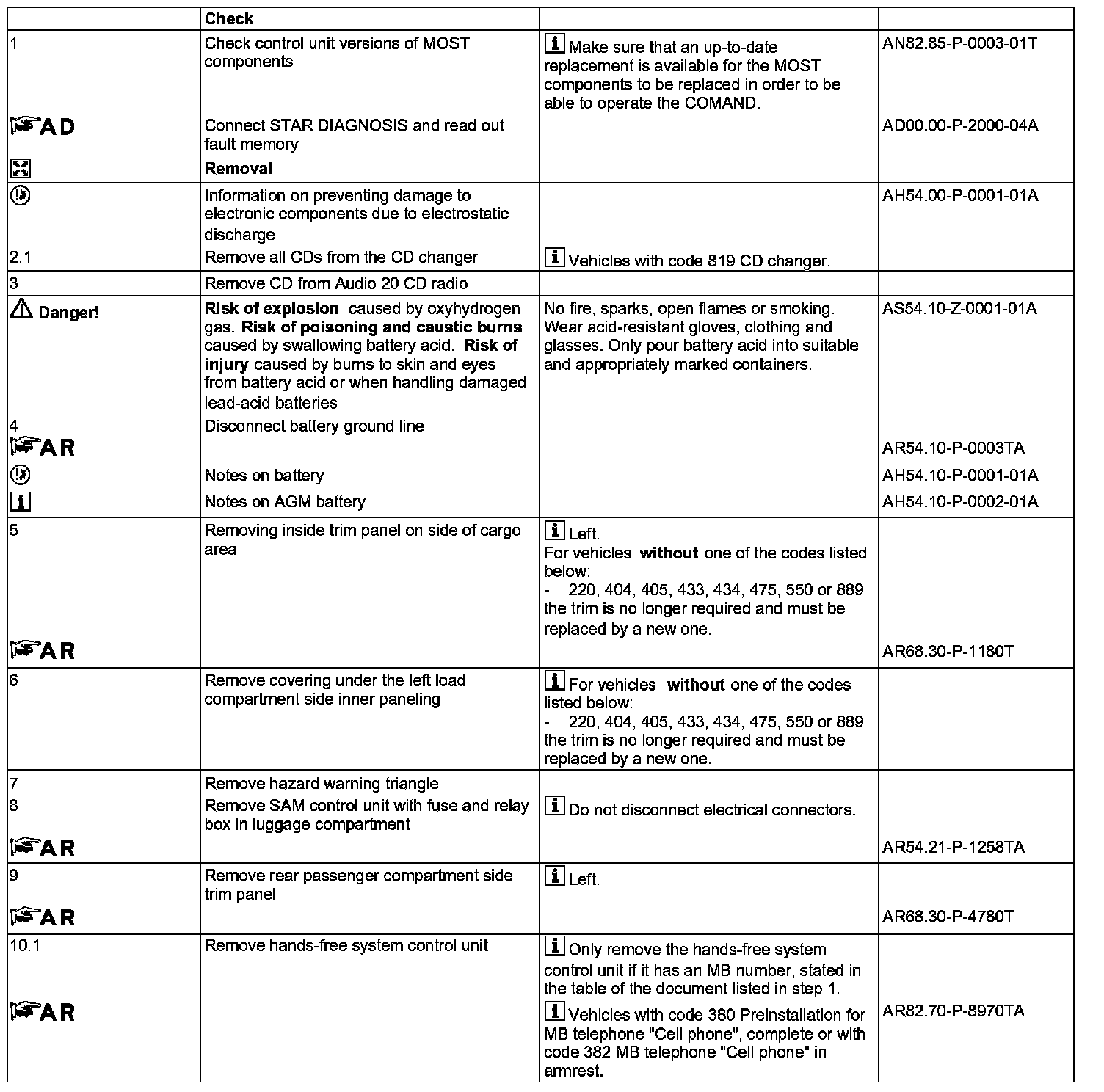

Steps 1 - 10.1:

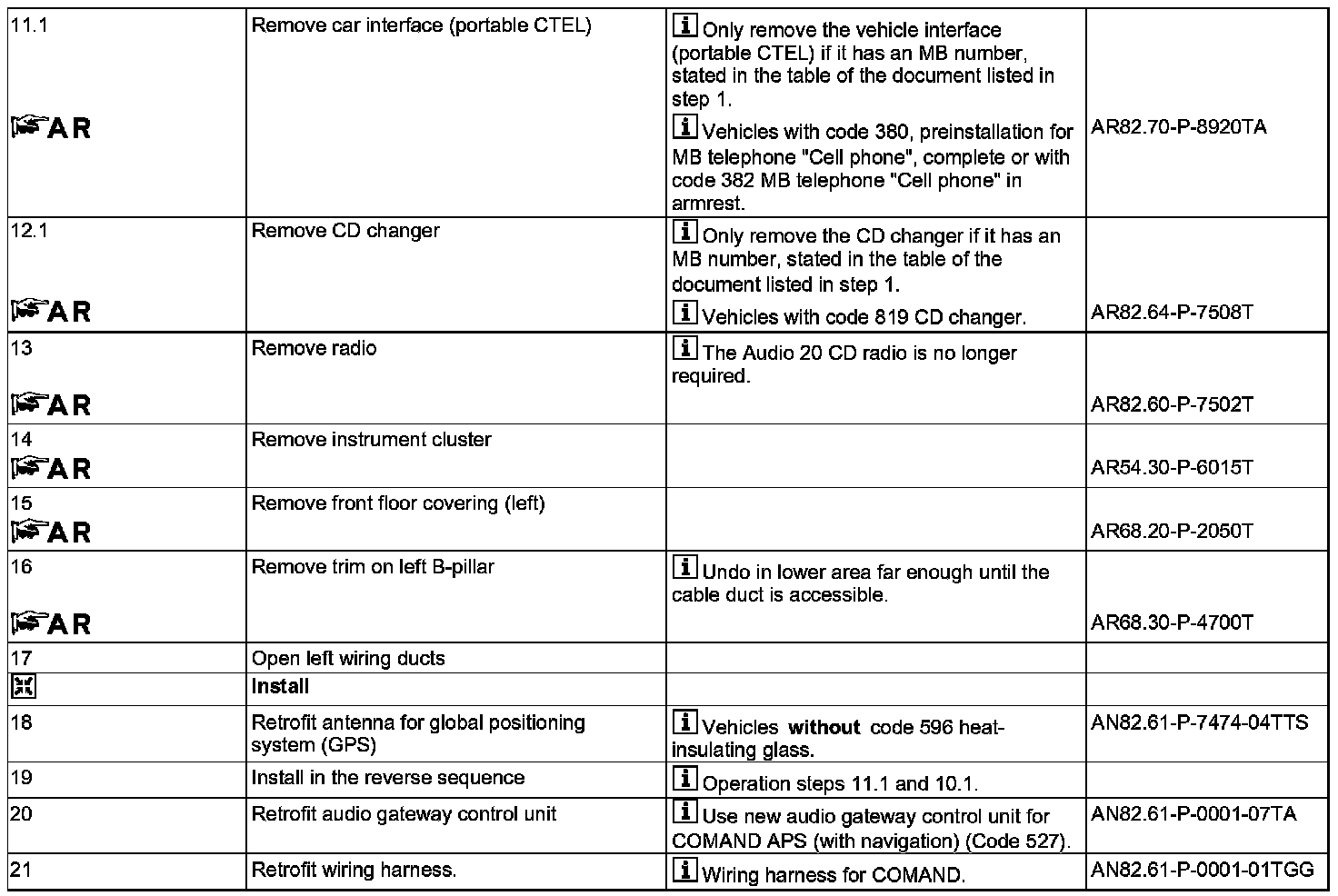

Steps 11.1 - 21:

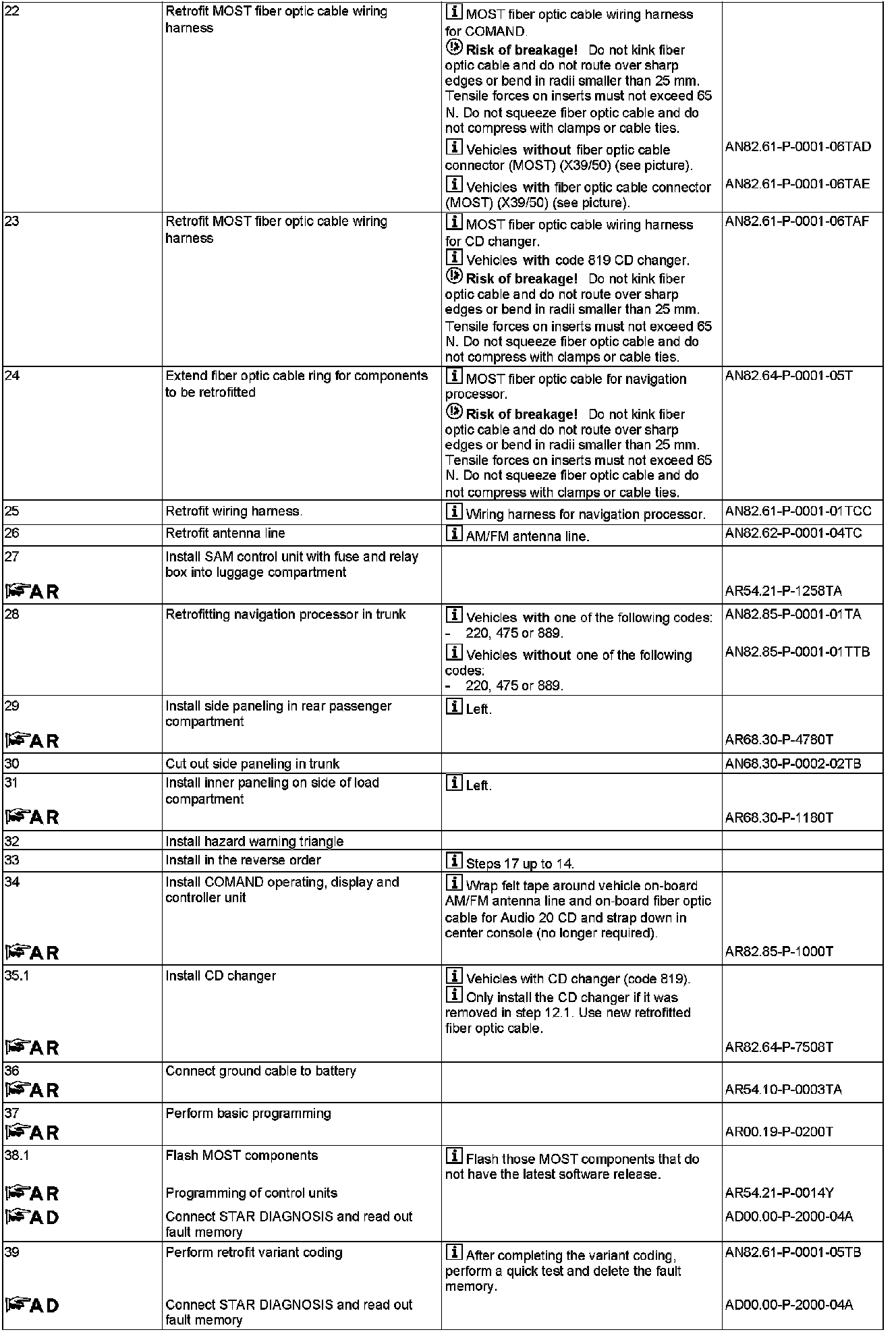

Steps 22 - 39:

Steps 40 - 41:

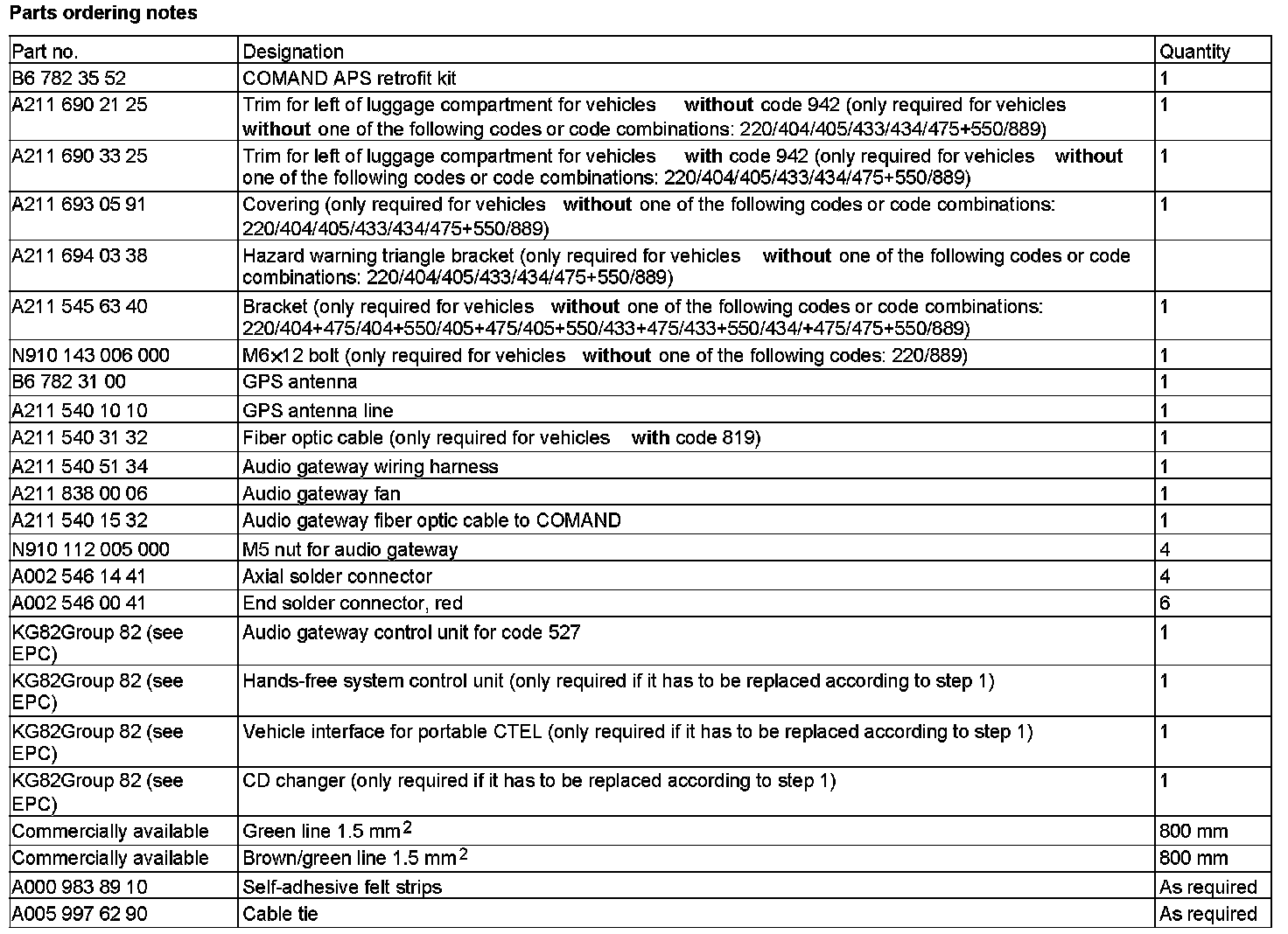

Parts Ordering Notes:
