Home >> Mercedes Benz >> 2006 >> E 500 (211.070) V8-5.0L (113.967) >> Repair and Diagnosis >> Windows and Glass >> Windows >> Window Glass >> Rear Door Window Glass >> Service and Repair >> AR72.12-P-1970TG Remove/Install Fixed Window In Rear Door

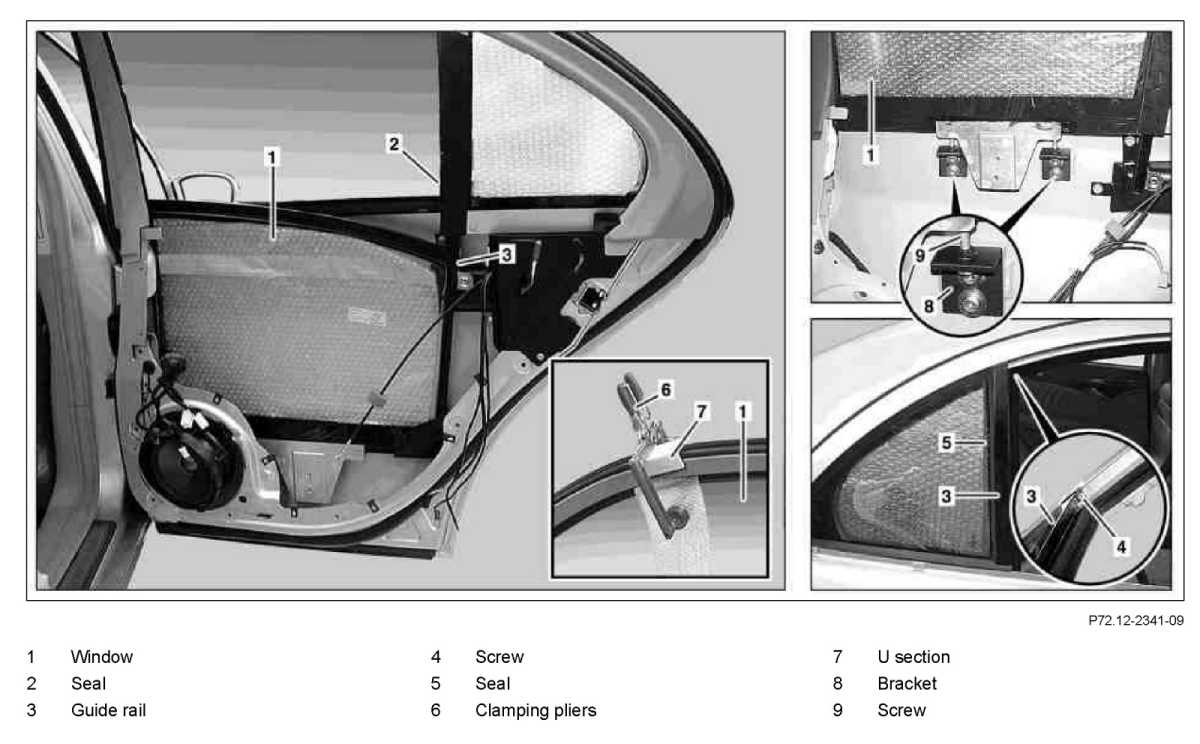

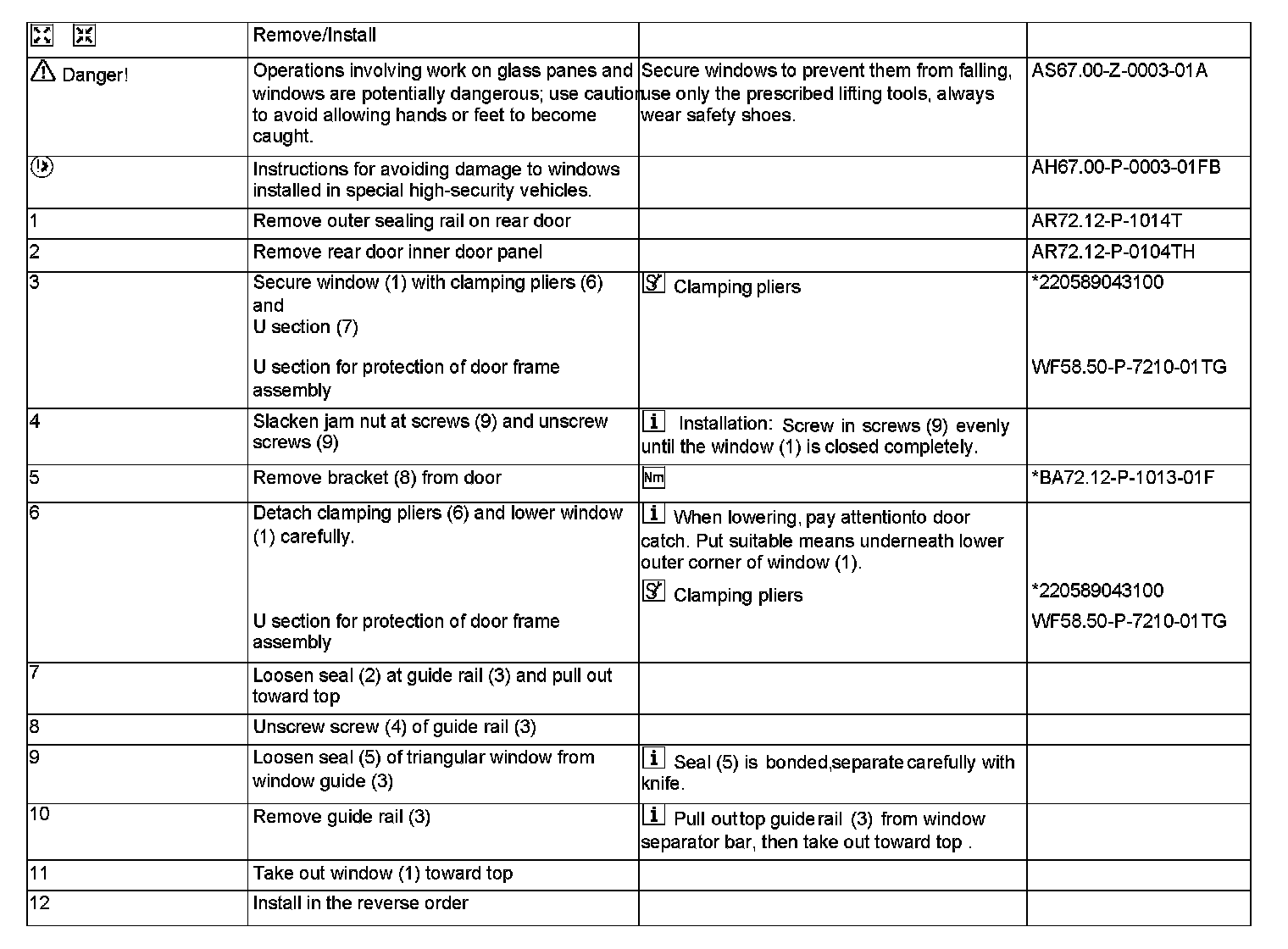

AR72.12-P-1970TG Remove/Install Fixed Window In Rear Door



AR72.12-P-1970TG Remove/Install Fixed Window In Rear Door
- Without rear power windows
- with CODE (Z04) Light armoring

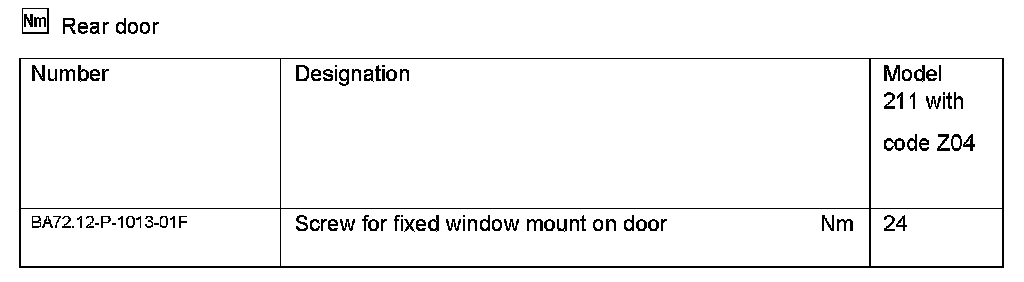

Rear Door:
