Home >> Mercedes Benz >> 2006 >> E 500 (211.070) V8-5.0L (113.967) >> Repair and Diagnosis >> Windows and Glass >> Windows >> Window Glass >> Front Door Window Glass >> Service and Repair >> AR72.10-P-1920TG Remove/Install Fixed Front Door Window

AR72.10-P-1920TG Remove/Install Fixed Front Door Window



AR72.10-P-1920TG Remove/Install Fixed Front Door Window
- Without front power windows
- with CODE (Z04) Light armoring

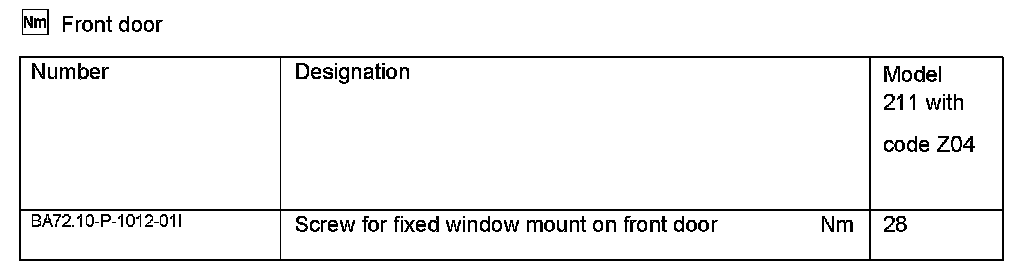

Front Door:
