Suspension - Vehicle Too Low In Front After Cold Soak

Date: February 2, 2007
Order No.: P-B-32.22/15a
Supersedes: P-B-32.22/15 dated March 12, 2003
Group: 32

Revision History

Revision Date Purpose

a 2/2/07 Applicable Models / Part Numbers and Warranty Information Updated
- 03/12/03 Initial issue

SUBJECT:
Model 211.065/070/076, up to VIN A255298

Equipped with Airmatic Suspension (sales code 489)

Vehicle Level Decreases at Front Axle

If you receive customer reports in the above model vehicles of low ride height at the front axle after the vehicle has been parked at cold (15° F or colder) ambient temperatures, replace only the affected suspension air strut. Reference WIS document AR32.25-P-1017TA.

NOTE:
A certain amount of suspension drop due to thermal contraction is normal and should not be regarded as a malfunction. Approximately 30 mm of suspension dropping in cold temperatures is within design parameters.

The following fault codes may be stored within the Airmatic control module:
- 5501-Event: Critical vehicle level at rear axle
- 5500-Event: Critical vehicle level at front axle
- 5507-Suspension strut is implausible

NOTE: In extreme cases the Airmatic compressor will not activate to raise the vehicle. The Airmatic compressor is not defective, and must not be replaced. The compressor is not actuated due to insufficient residual pressure in the suspension struts. In such cases the compressor must be actuated with STAR Diagnosis.

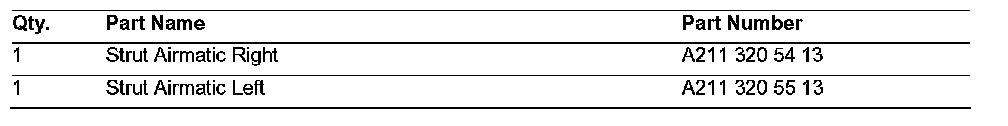

Parts Information

NOTE:

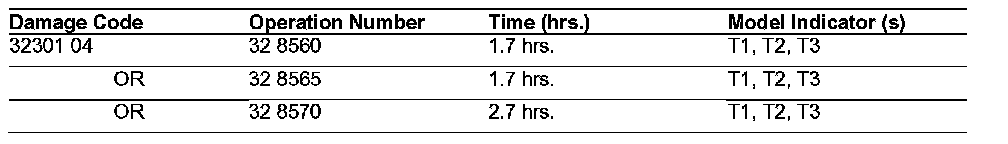

The following allowable labor operations should be used when submitting a warranty claim for this repair

In Case of Warranty





Operation: Strut assembly - left front air suspension (airmatic), replace (32-8560)
Strut assembly - right front air suspension (airmatic), replace (32-8565)
Strut assembly - both front air suspension (airmatic), replace (32-8570)
