Air Injection Pump: Service and Repair

Removing and Installing Air Pump

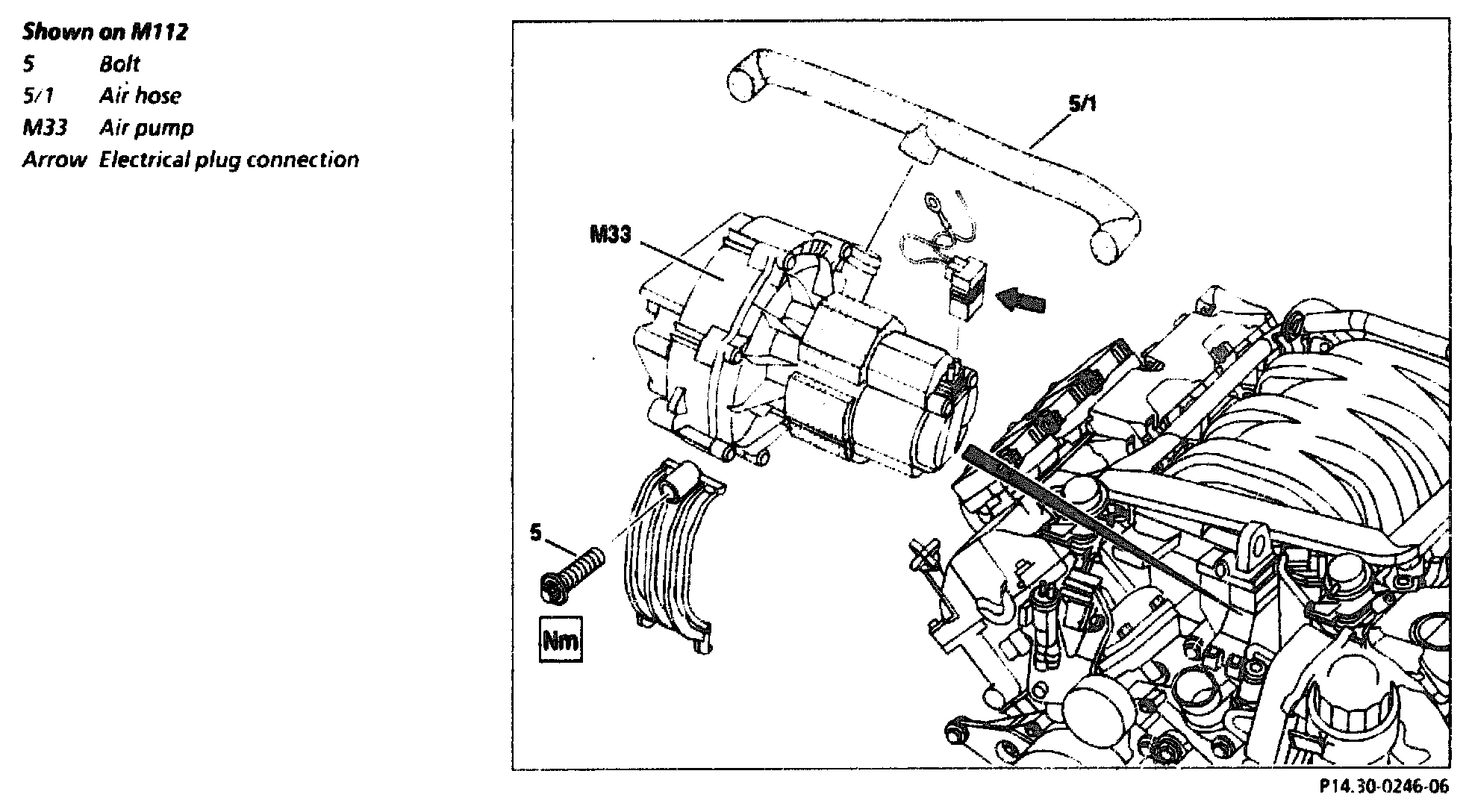

Shown On M112:

Work instructions


NOTE: Trim panel of cylinder head cover or air cleaner
- take off.


Bolt (5)
- unscrew
- Refer to Air Pump


NOTE: Pay attention to ground cable.


5/1 Air hose
- detach.

M33 Air pump
- unplug electrical plug connection (arrow).

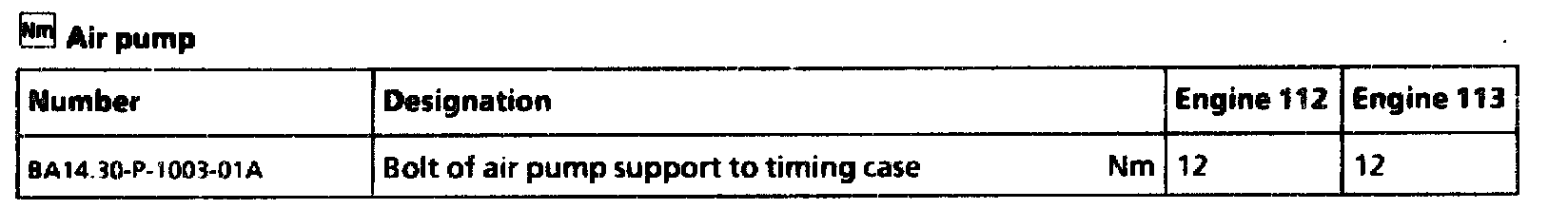

Air Pump:
