Home >> Mercedes Benz >> 2006 >> E 500 (211.070) V8-5.0L (113.967) >> Repair and Diagnosis >> Maintenance >> Filters >> Fuel Filter >> Service and Repair

Fuel Filter: Service and Repair

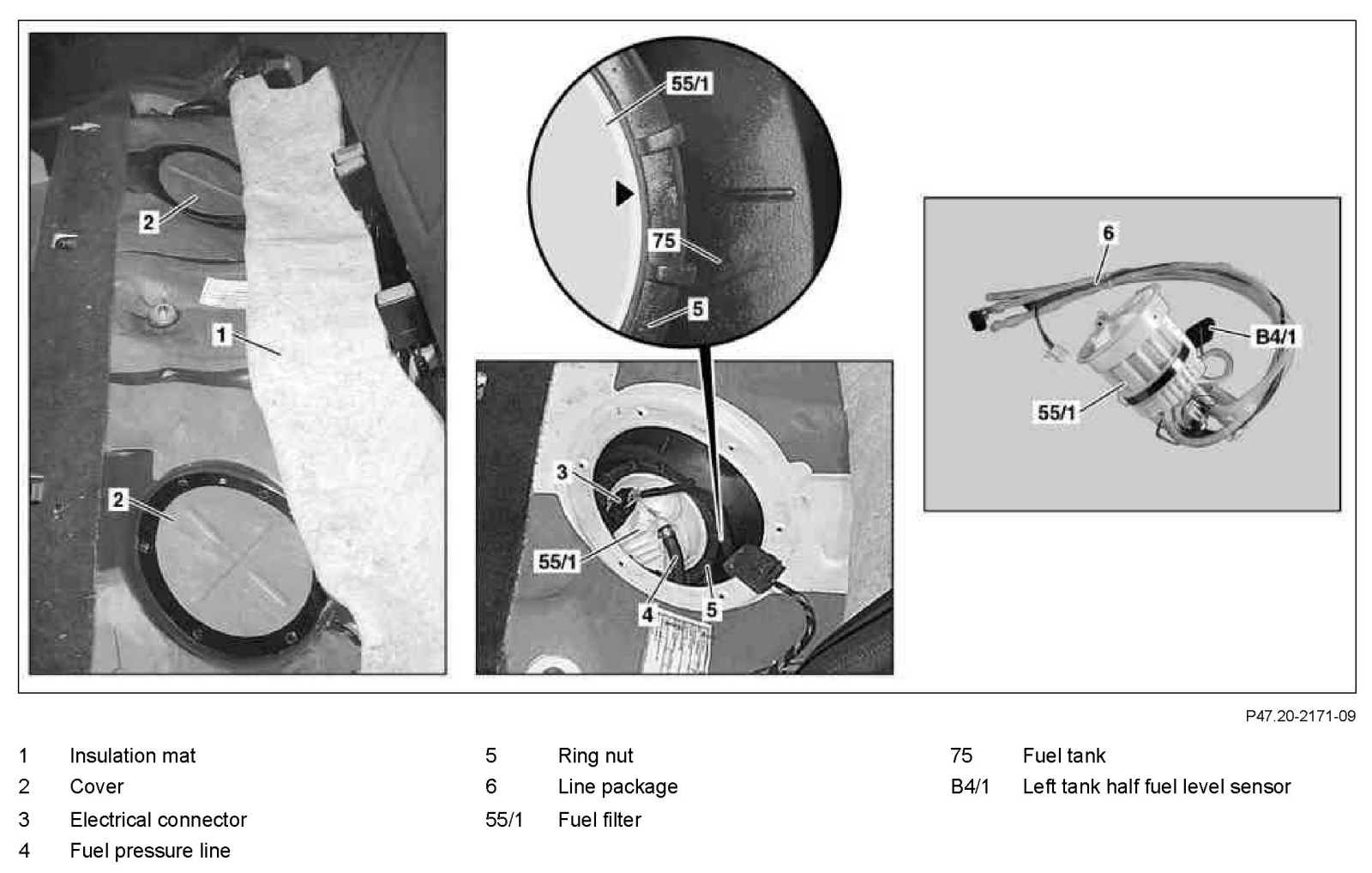

AP47.20-P-0780TC Remove/Install Fuel Filter

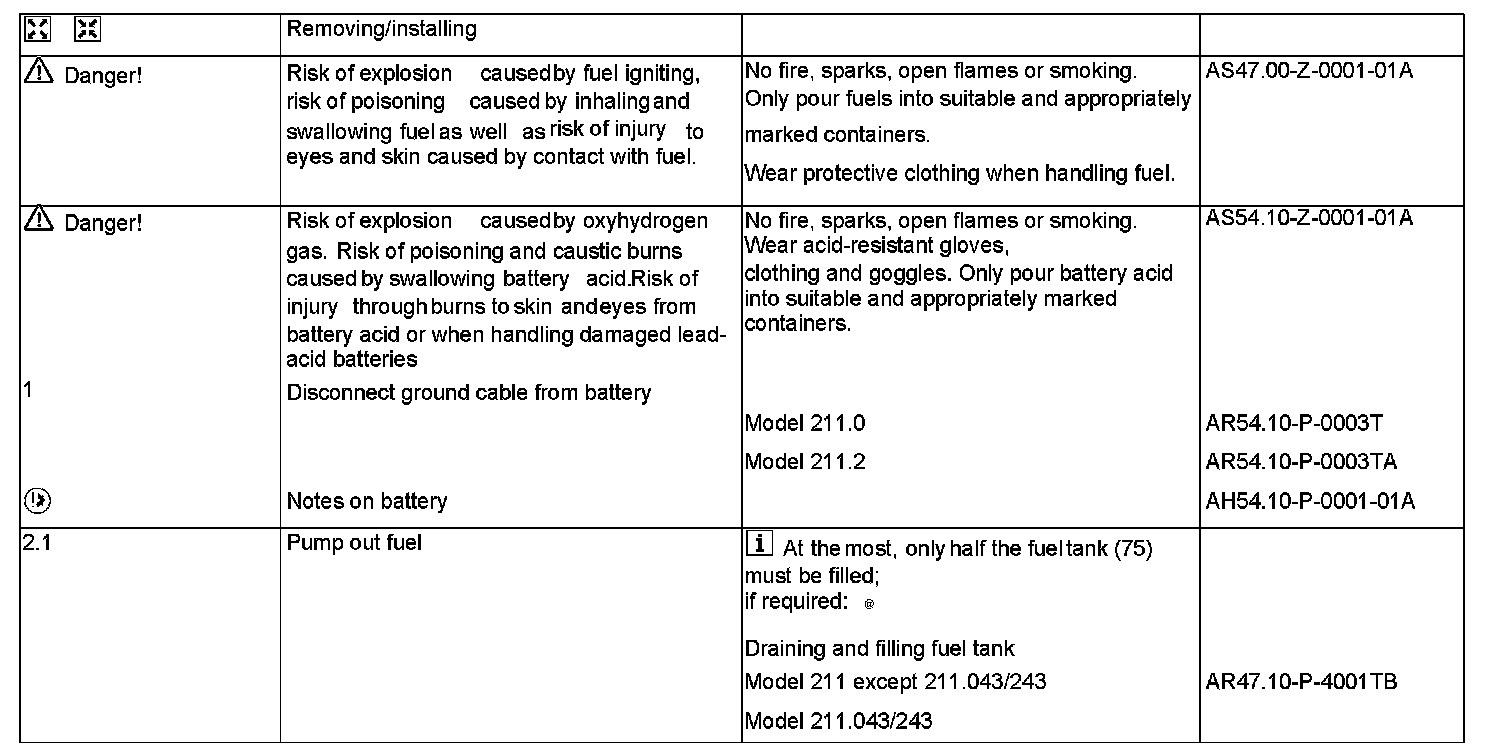

Part 1:

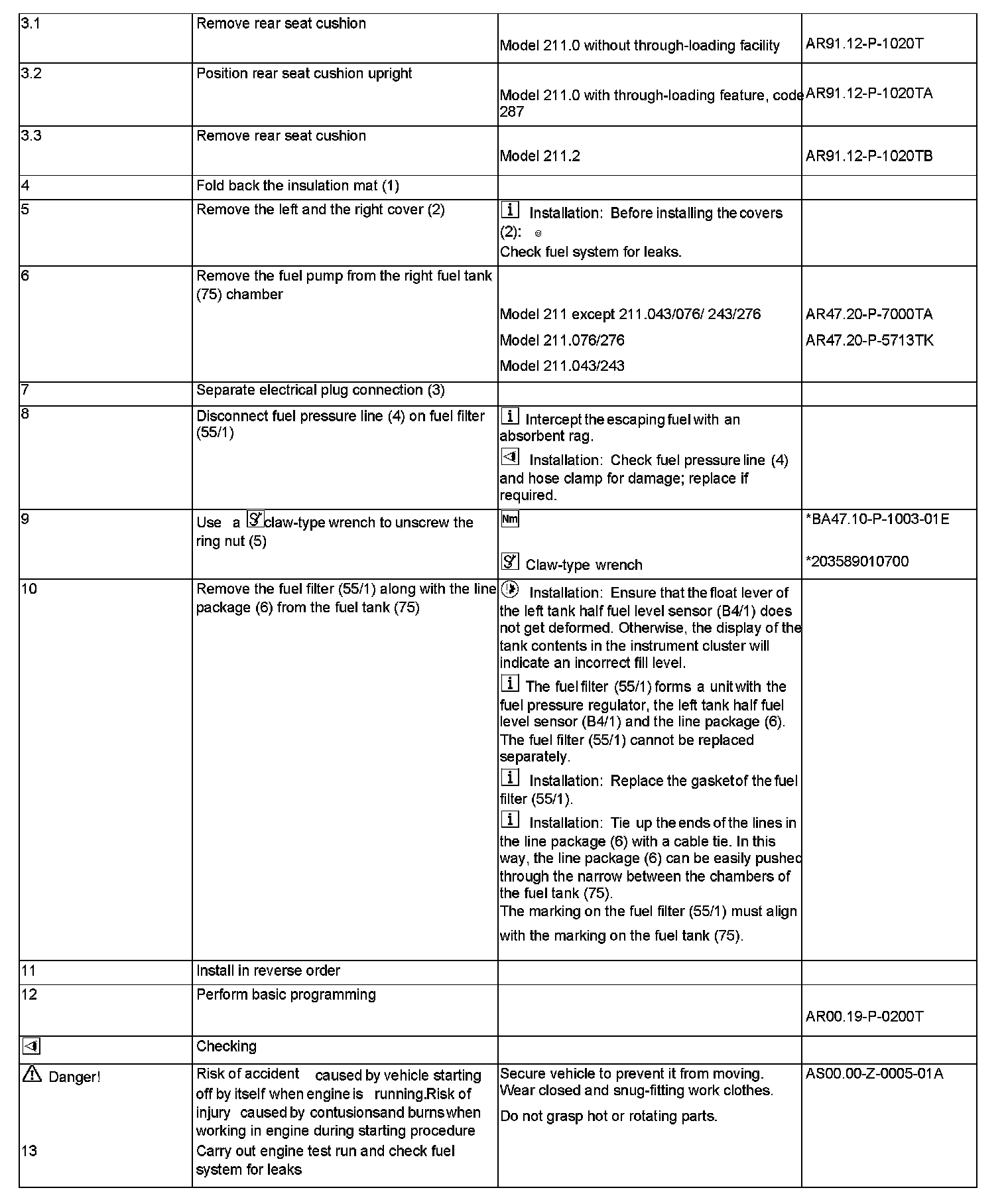

Part 2:

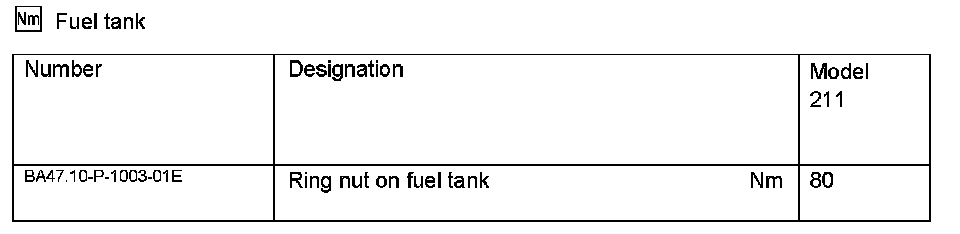

Fuel Tank:
