Rain Sensor
>>
Service and Repair
Rain Sensor: Service and Repair
AR82.30-P-7800T Remove/Install Rain/Light Sensor

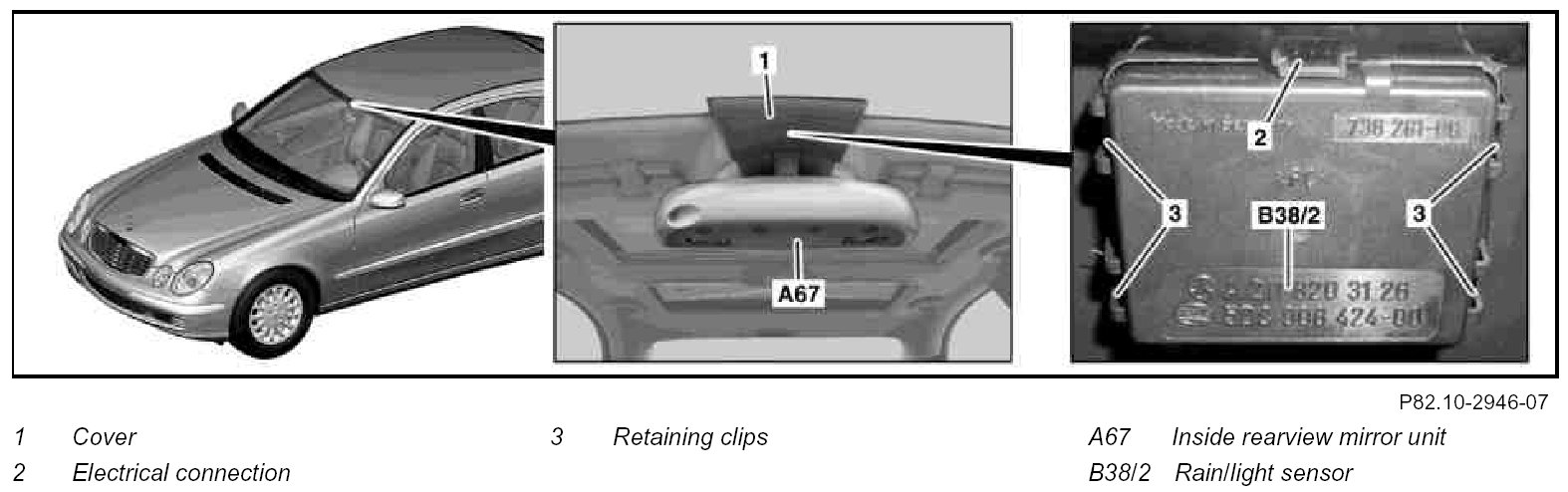

Component Identification:
Modification Notes:

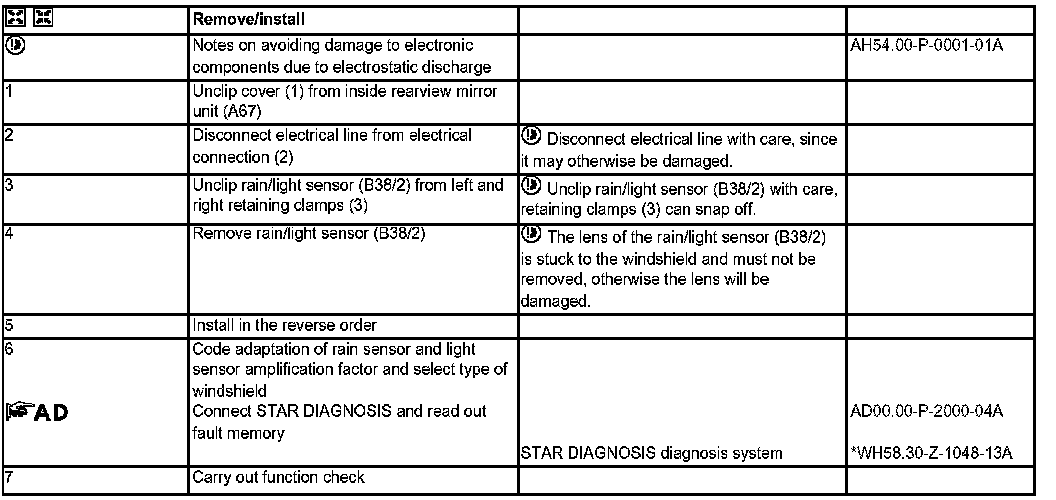

Steps 1 - 7:
Commercially Available Tools:
