Drivetrain - Clicking Noise Accelerating From a Stop

Date: March 6, 2008

Order No.: P-B-41.40/04a

Supercedes: P-B-41.04 dated February 4, 2008

Group: 41

Revision History

Revision Date Purpose

a 3/6/08 Damage Code Revised

- 2/4/08 Initial issue

SUBJECT:
Model 211.026, Up to VIN No. 003652

Clicking Noise When Driving Away from a Standing Start

If you receive customer reports in the above model vehicle of a clicking noise when driving away from a standing start, the cause may be material contamination of the bolts which secure the drive shaft carrier bearing. To resolve, replace the two bolts which secure the drive shaft carrier bearing to the floor pan. Refer to WIS document AR41.10-P-0050T for proper torque values or gaining access to the carrier bearing.

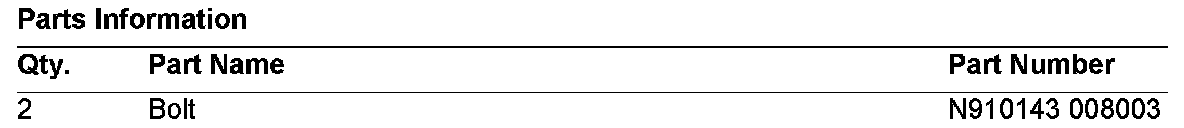

Parts Information

Note:

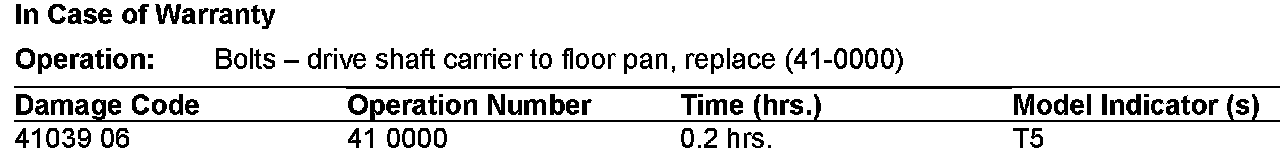

The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on March 6, 2008. Please refer to Netstar --> Star TekInfo --> Star Time for the most current labor time allowance.





In Case of Warranty, use the table above.
