Transmission Mount: Service and Repair

Remove/Install Rear Engine Mount

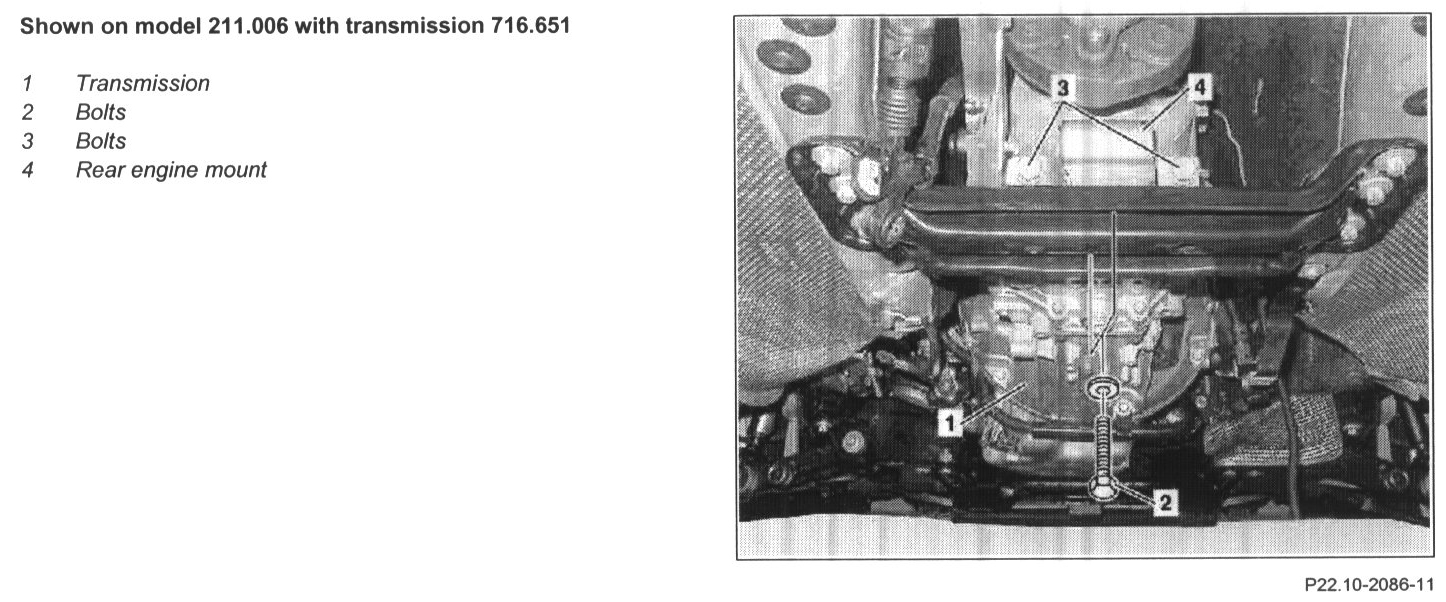

Shown On Model 211.006 With Transmission 716.651:

DANGER:
- Risk of death, Death may result if vehicle slips or topples from the lifting platform.
- Align vehicle between the columns of the hydraulic hoist and position the four support plates below the hoist support points specified by the vehicle manufacturer.

1.1 Remove bottom section of sound-proofing capsule

NOTE: Only rear part.

1.2 Remove engine compartment paneling

NOTE: Only rear part.

2 Support transmission (1) with telescoping transmission lifter
3 Unscrew screws (2 and 3)
4 Remove rear engine mount (4)

NOTE: Installed position.

5 Install in the reverse order
