AR03.30-P-8001T Remove/Install Flywheel / Drive Plate



AR03.30-P-8001T Remove/install flywheel / drive plate

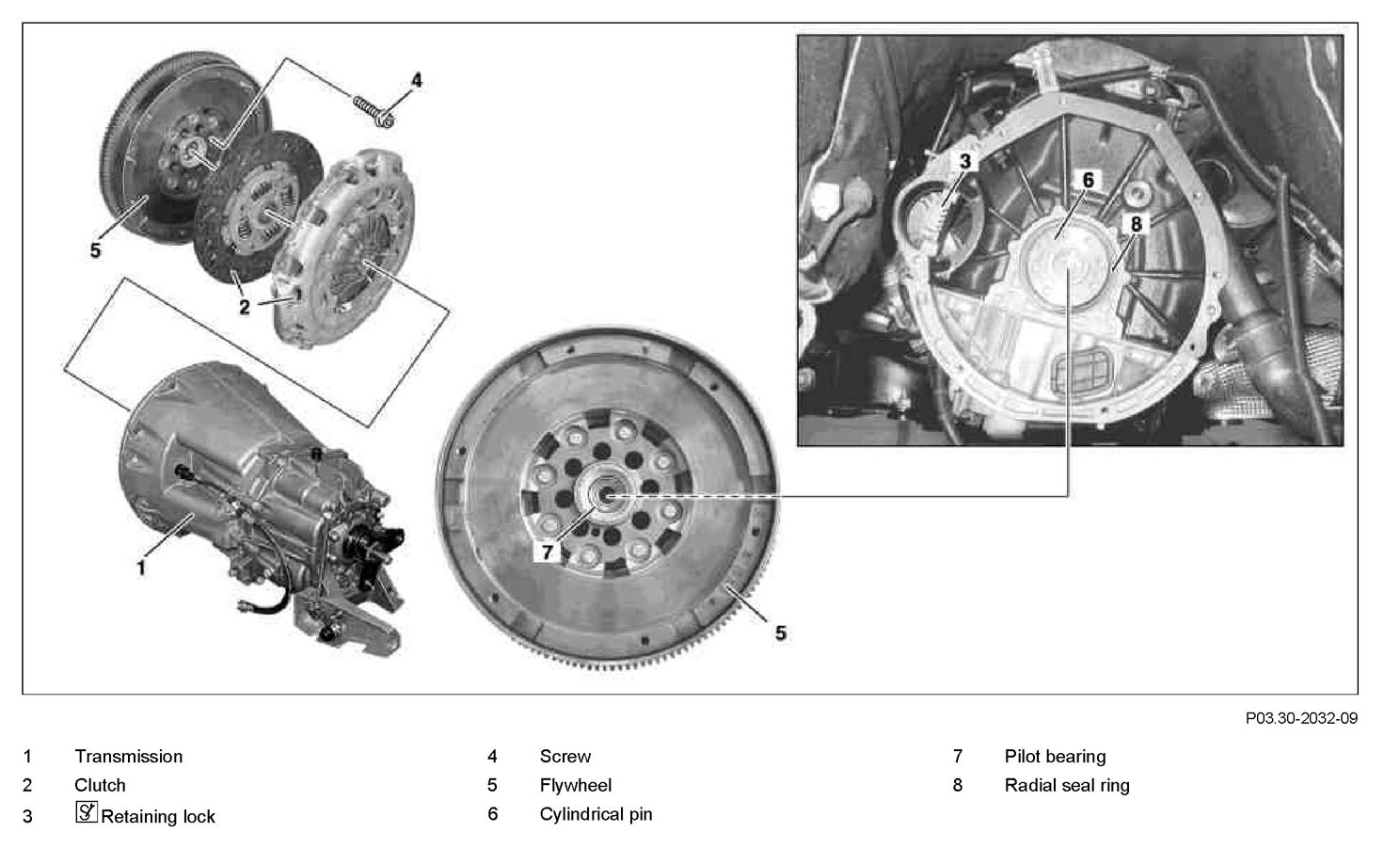

Component Identification:

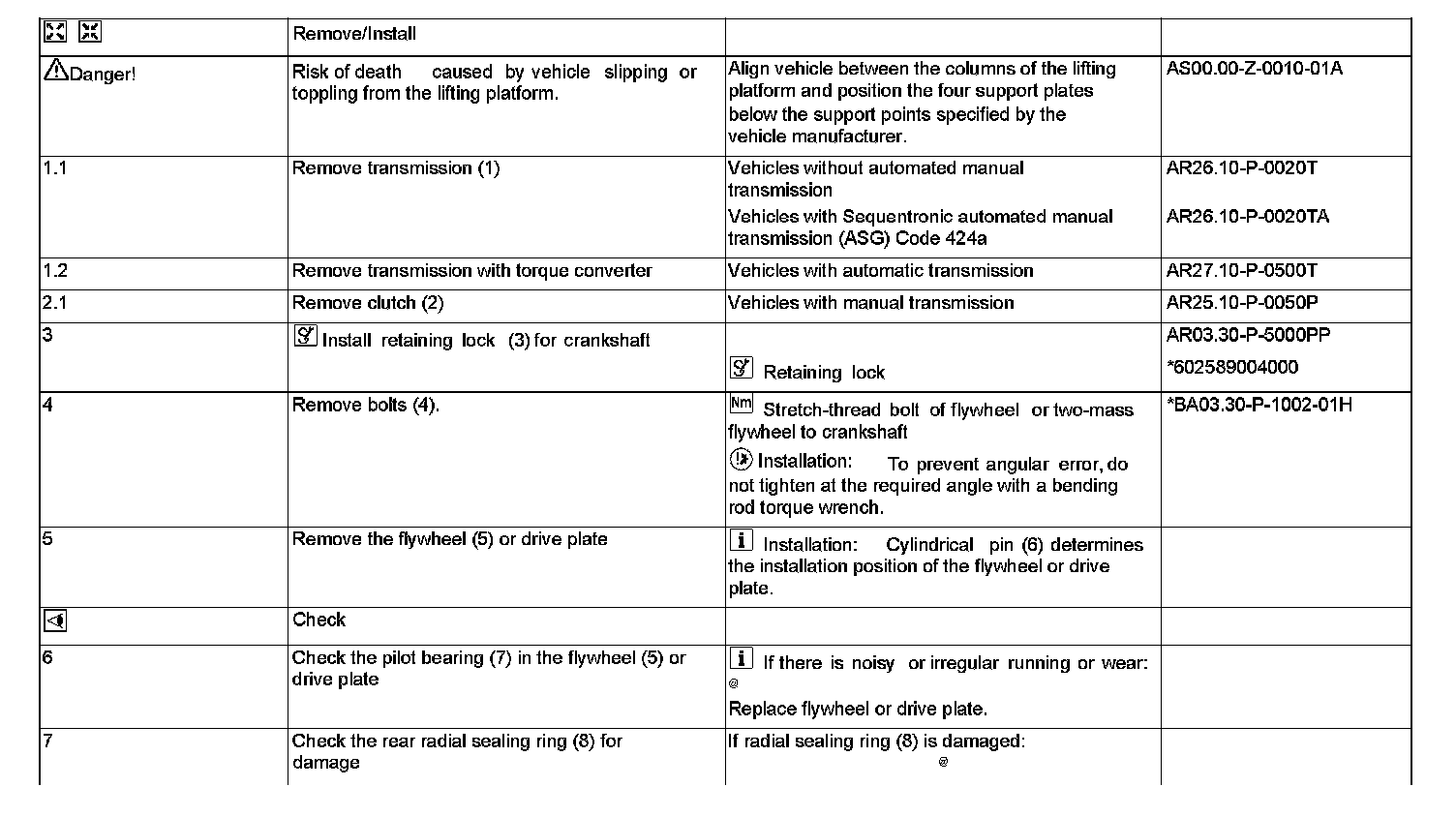

Steps 1-7:




Steps 8:




Flywheel, Drive Plate, Vibration Damper, Starter Ring Gear:

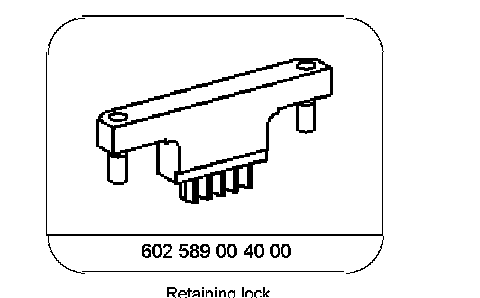

Special Tools:
