Home >> Mercedes Benz >> 2006 >> E 320 CDI (211.026) L6-3.2L DSL Turbo (648.961) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatically Shifted Manual Transmission/Transaxle >> Shift Actuator >> Hydraulic Pump >> Service and Repair

Hydraulic Pump: Service and Repair

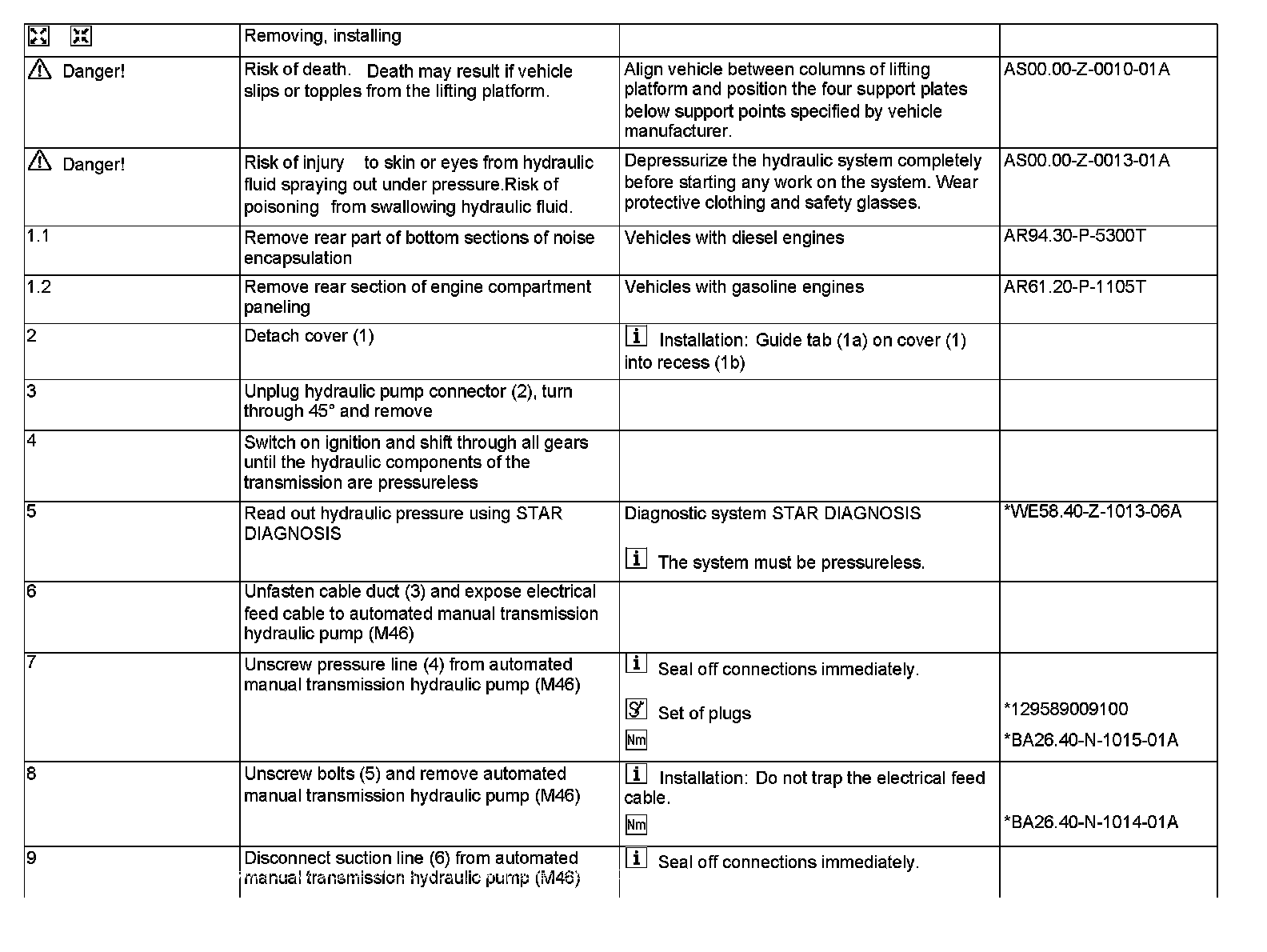

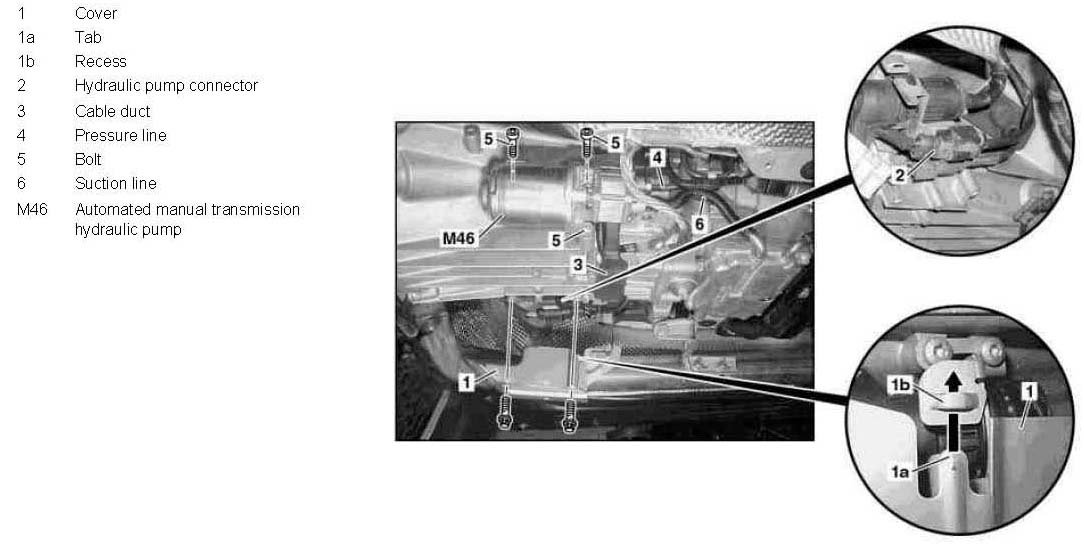

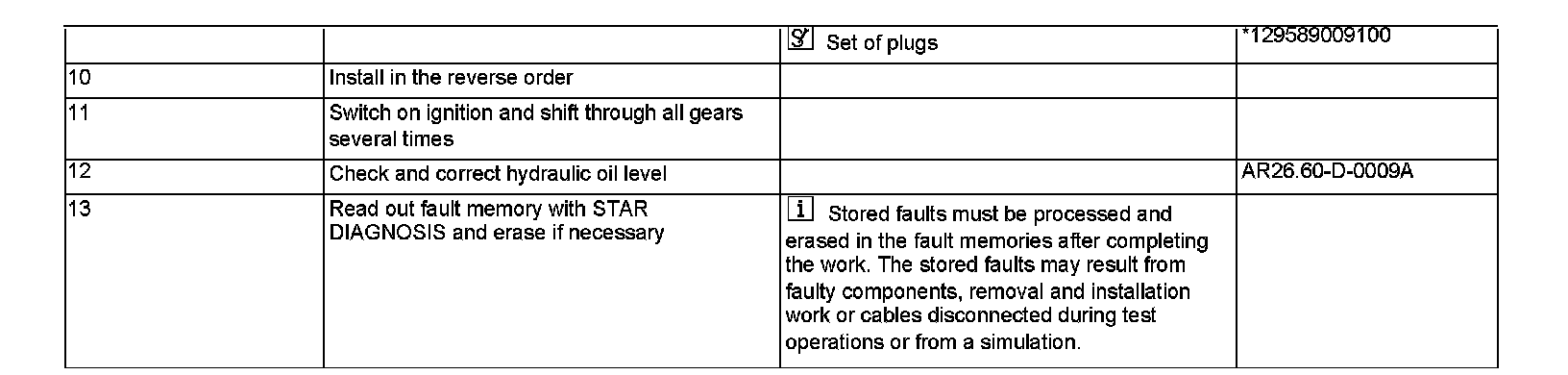

Removing and installing hydraulic pump on transmission
- with CODE (424) Sequentronic (SEQ) manual
