Transmission 722.6

AR27.10-P-0500T Remove/install transmission with torque converter
- with TRANSMISSION 722.6 [MODELS 211.026/065/070/076/265/276]

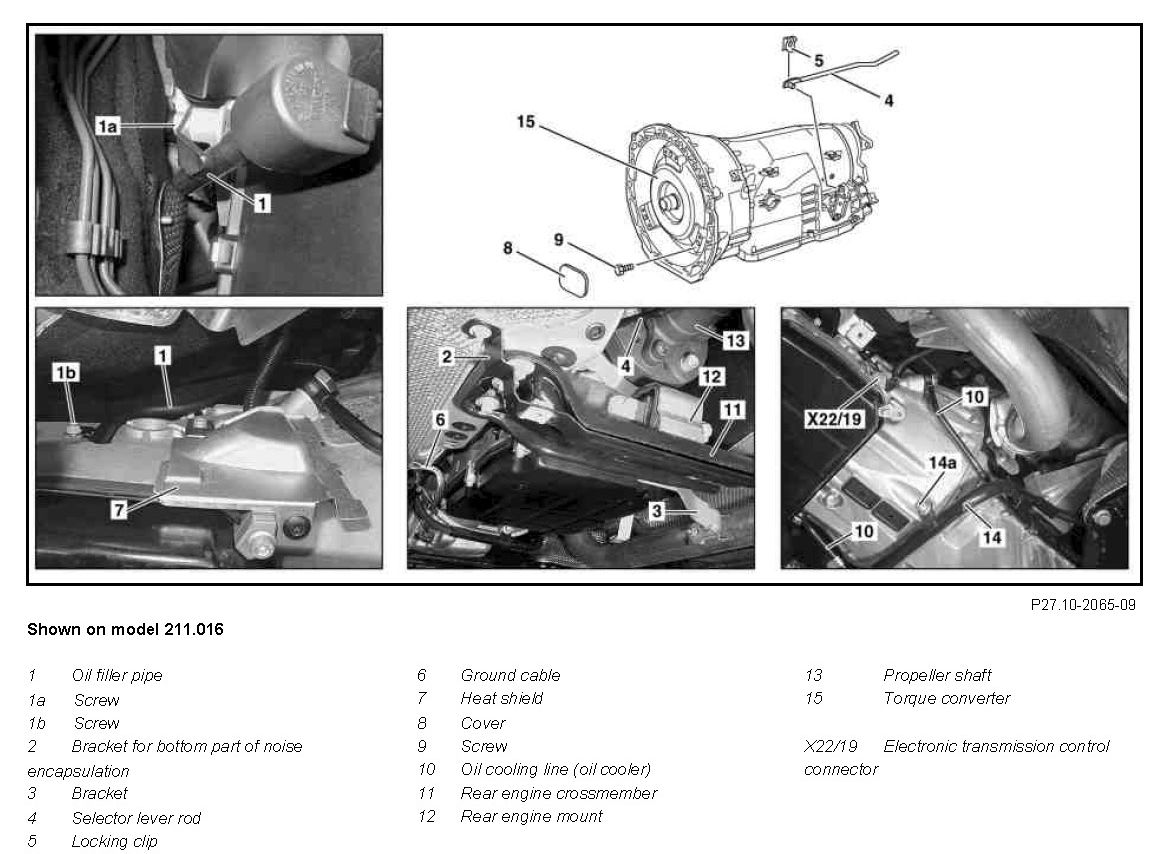

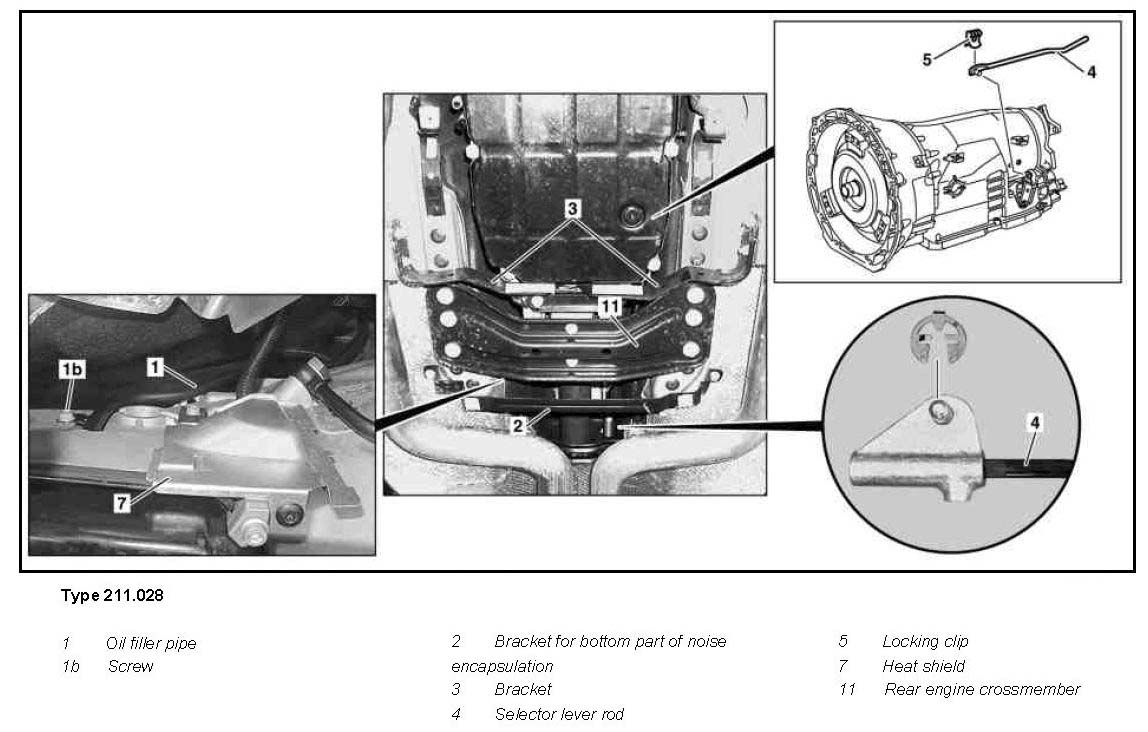

Component Identification:

Component Identification:

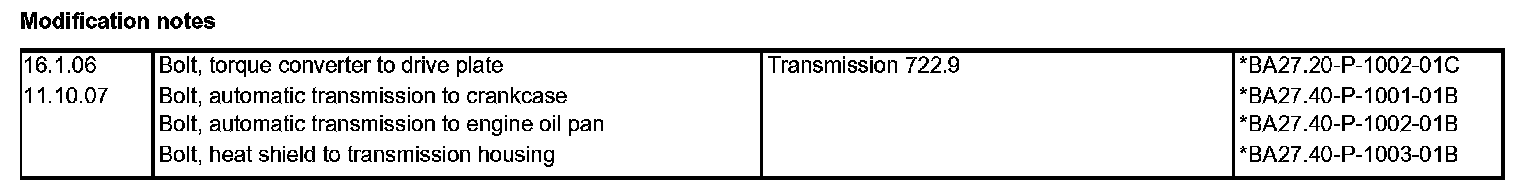

Modification notes:

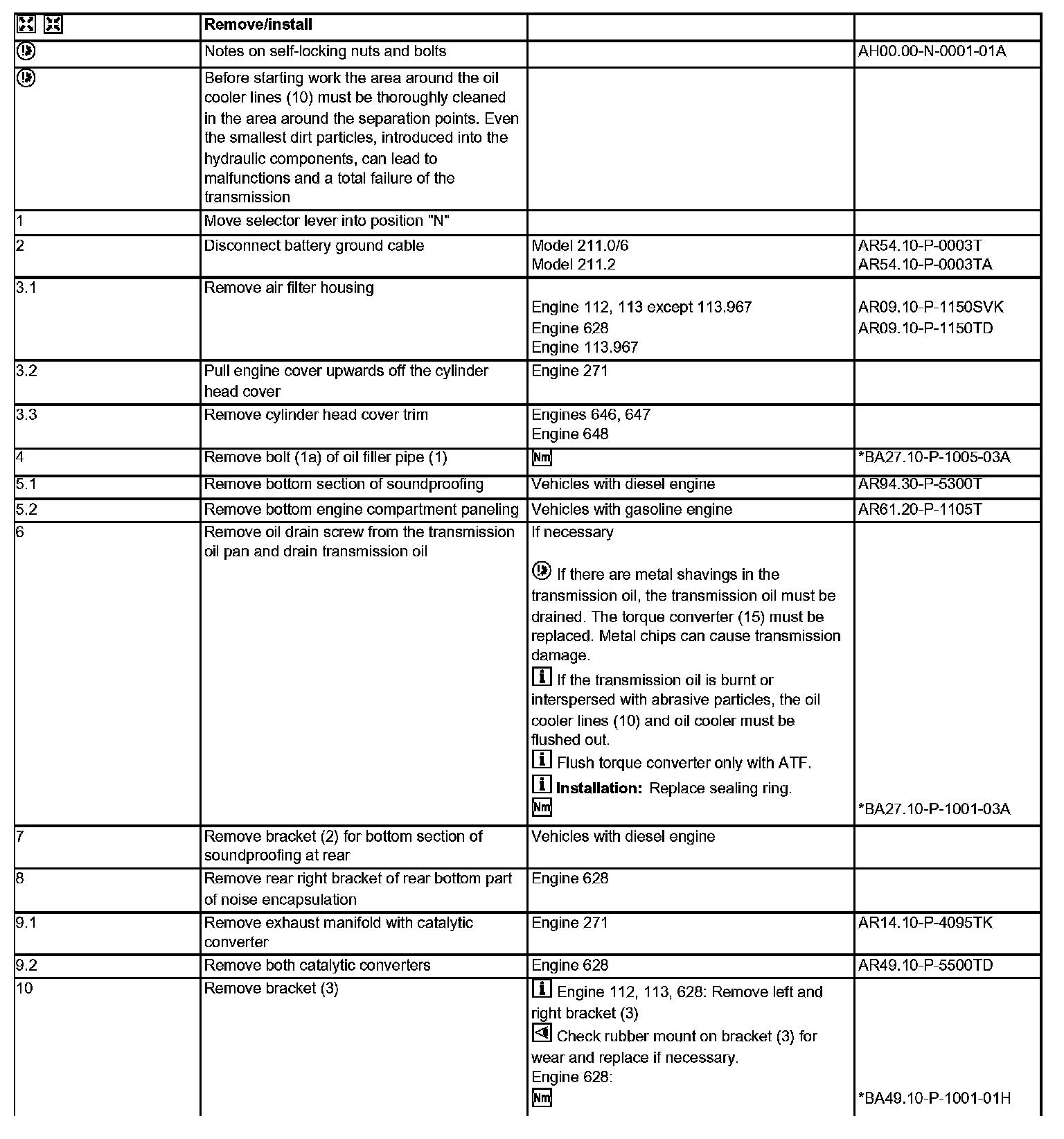

Remove/install Steps 1-10:

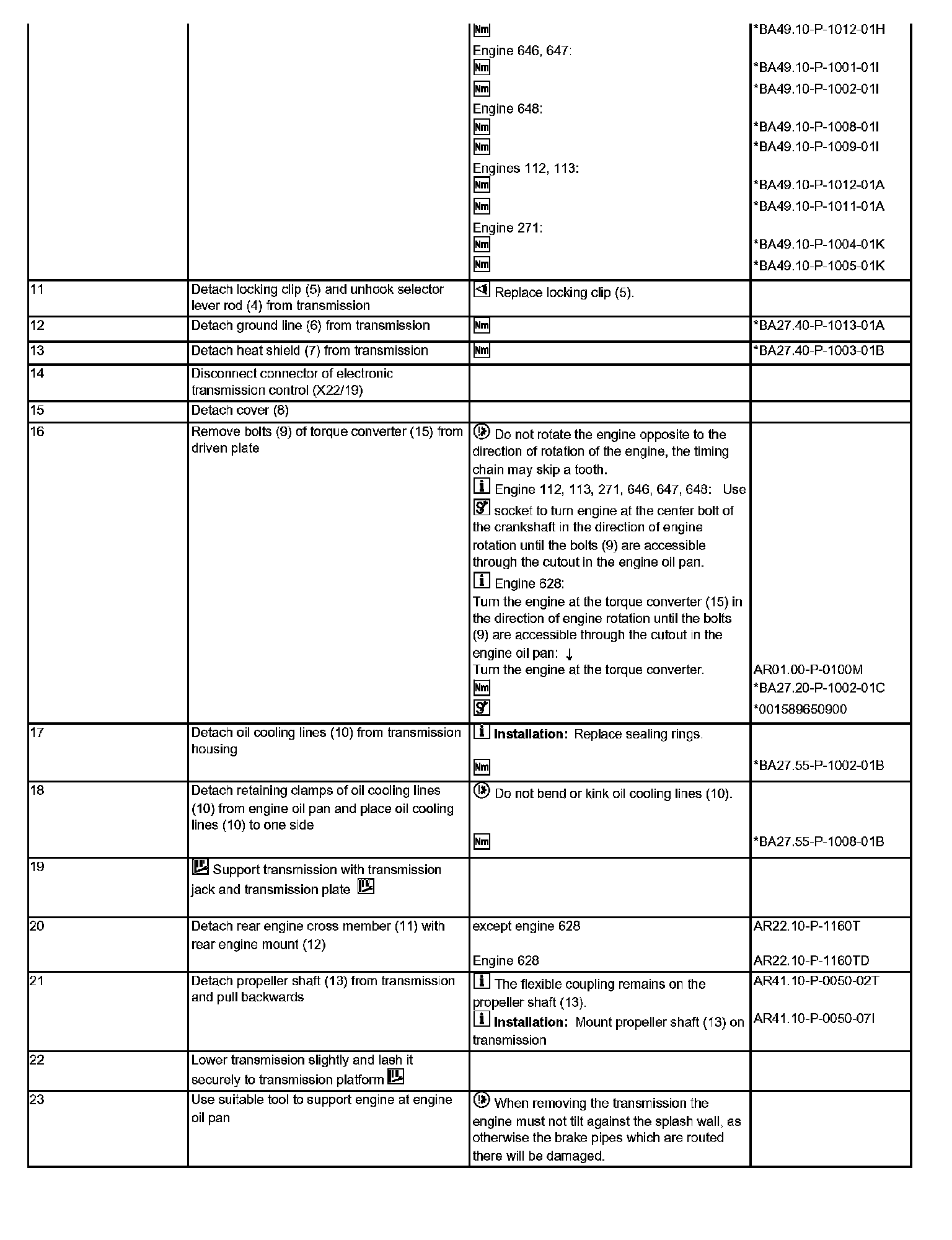

Remove/install Steps 10 (Continued)-23:

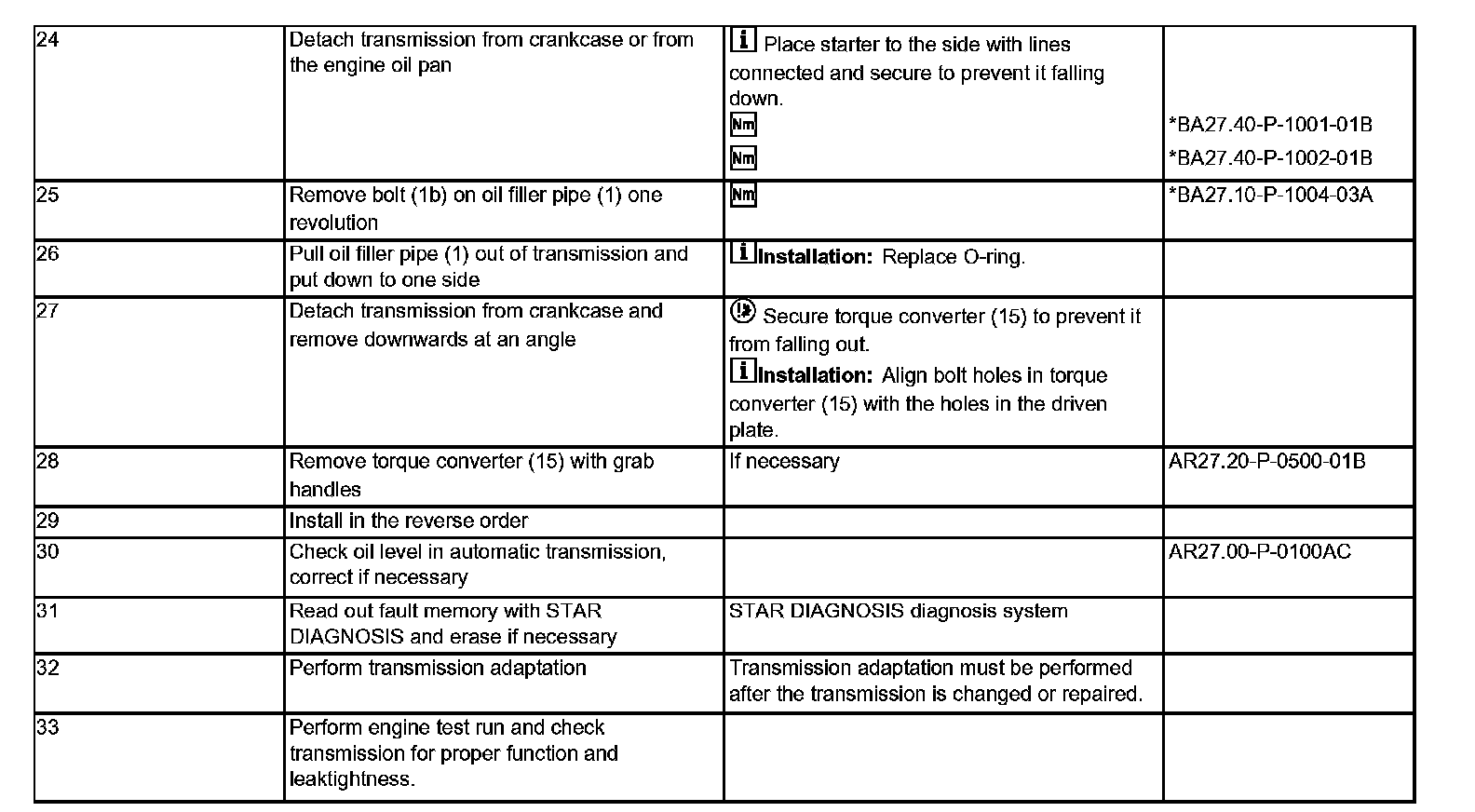

Remove/install Steps 24-33:

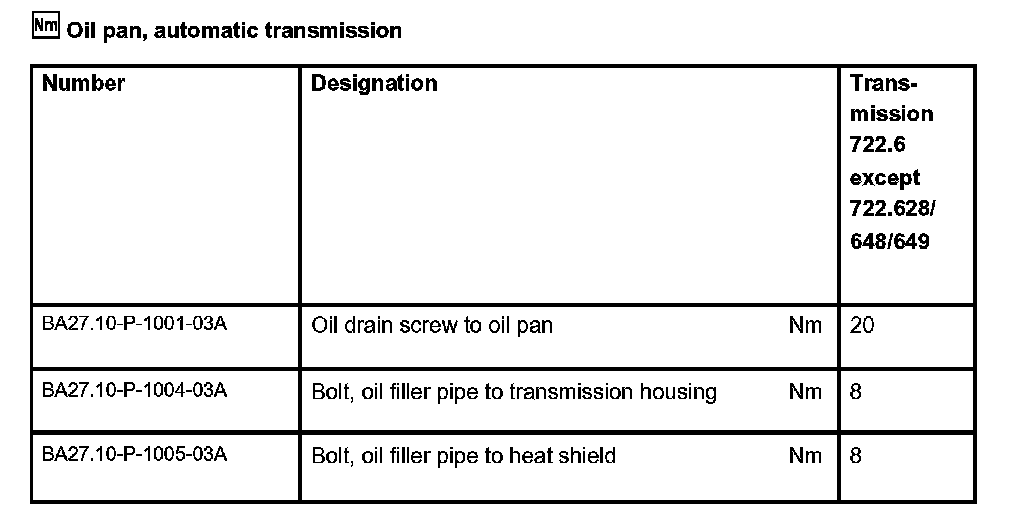

Oil pan, automatic transmission:

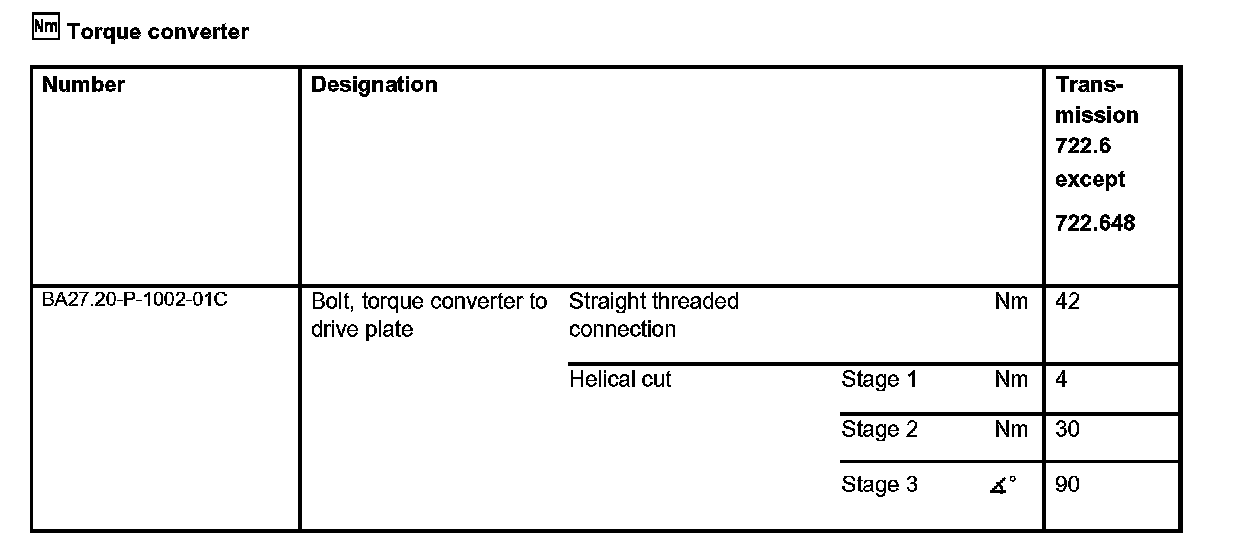

Torque converter:

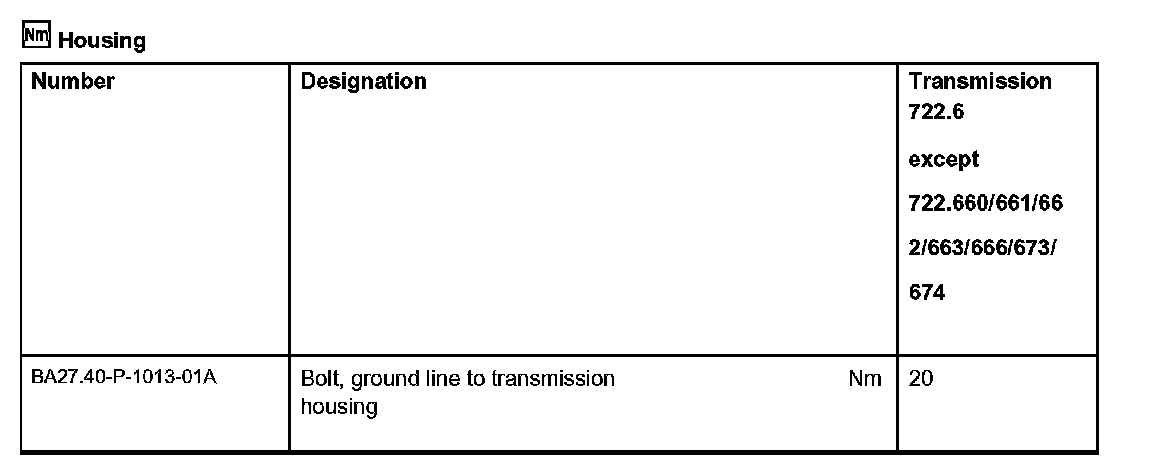

Housing:

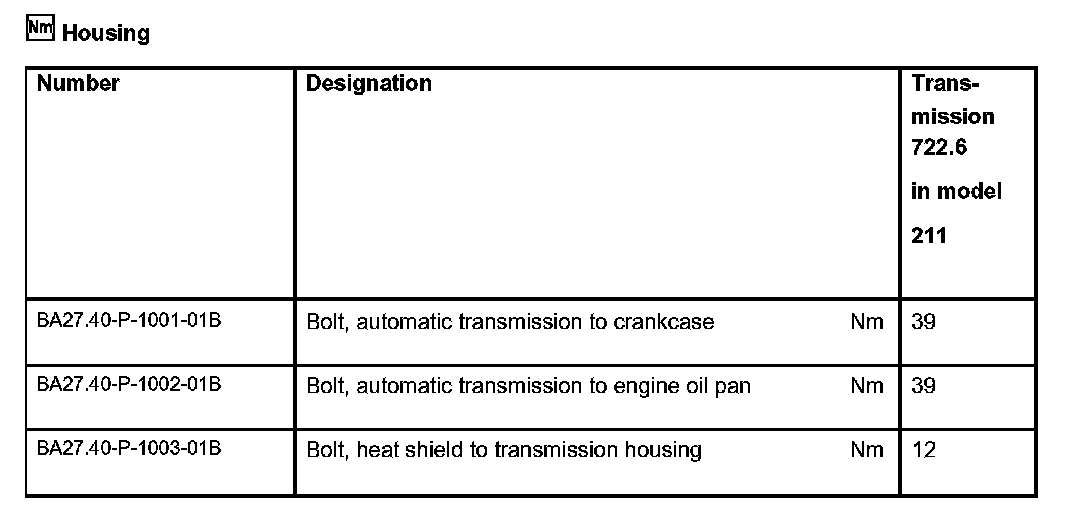

Housing:

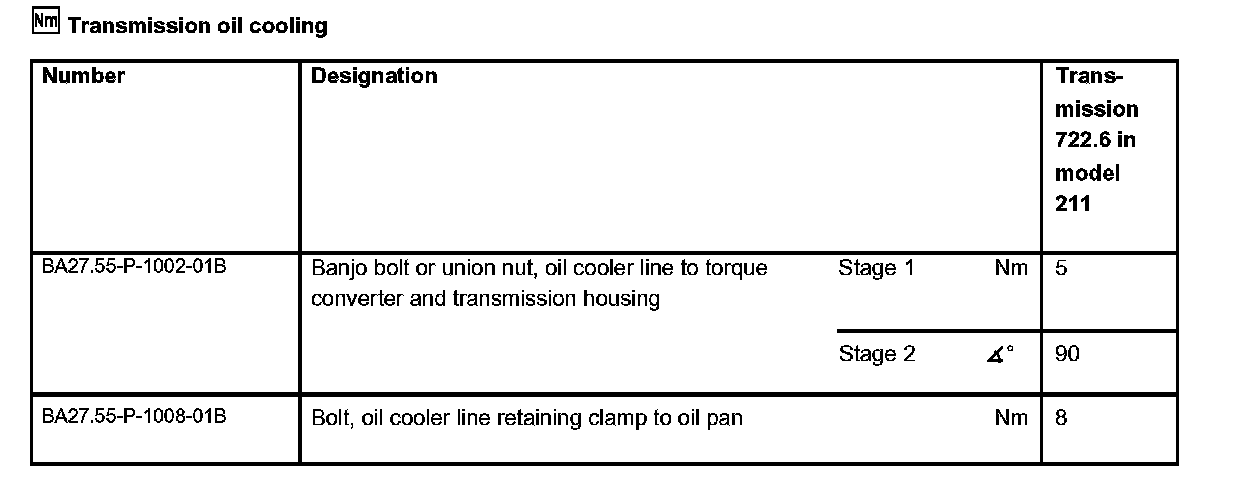

Transmission oil cooling:

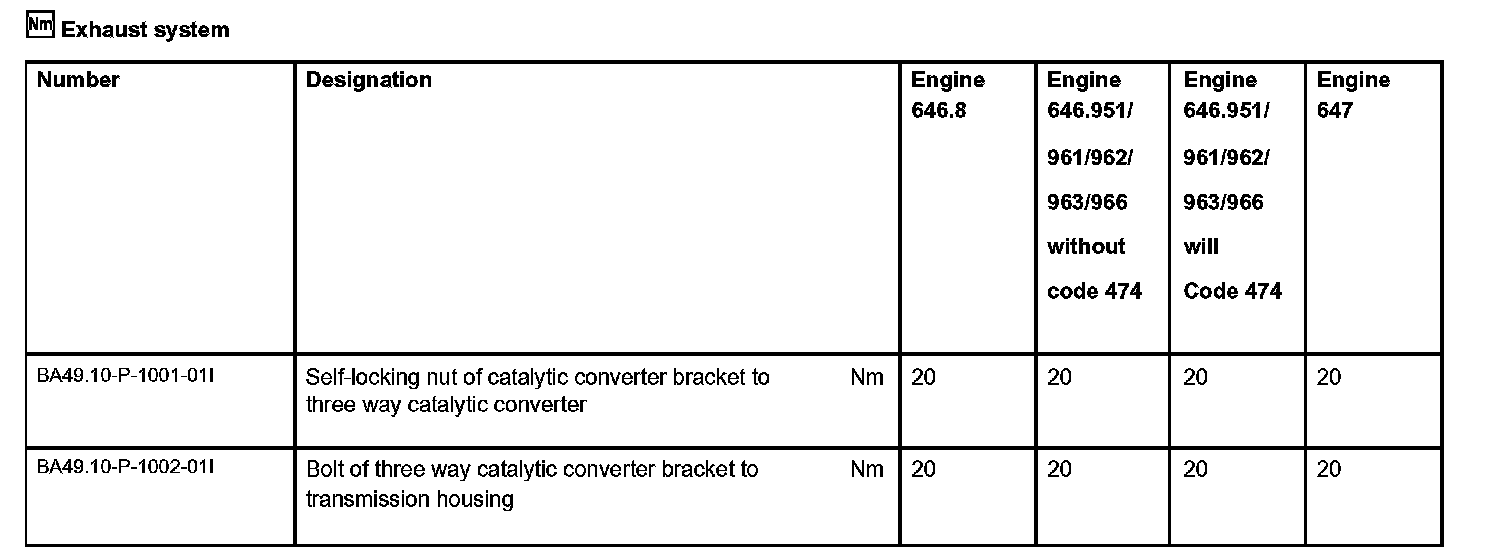

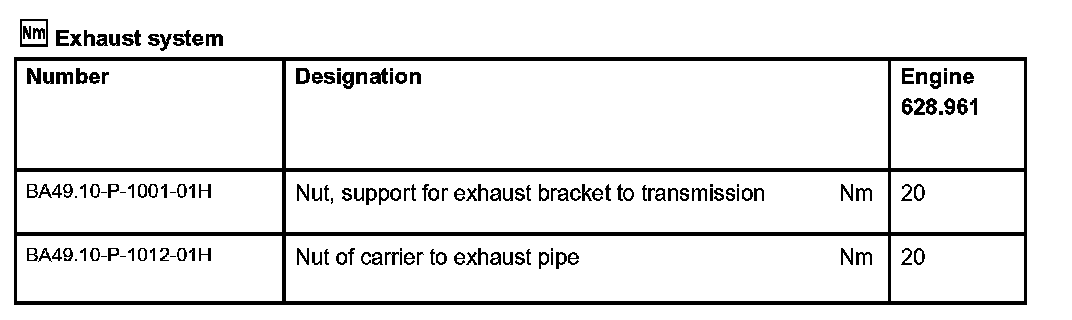

Exhaust system:

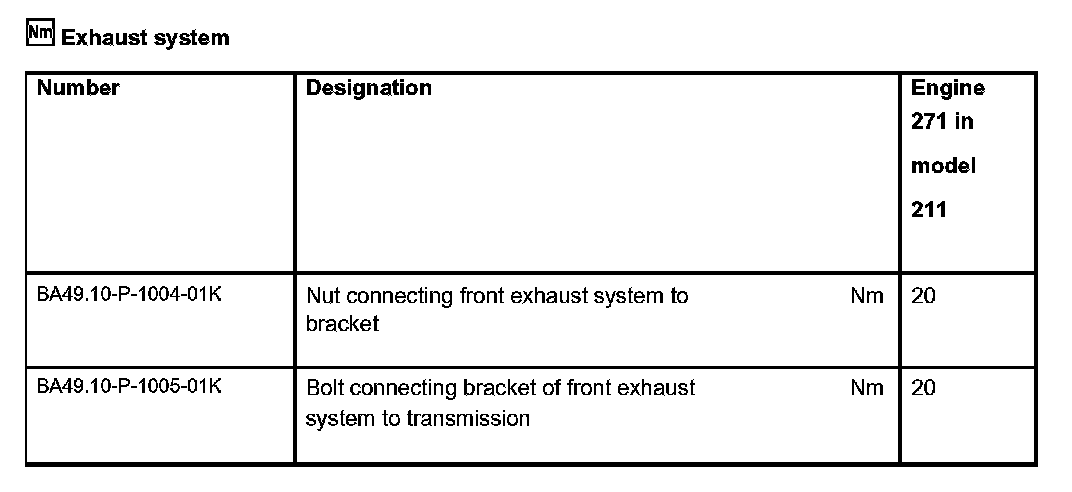

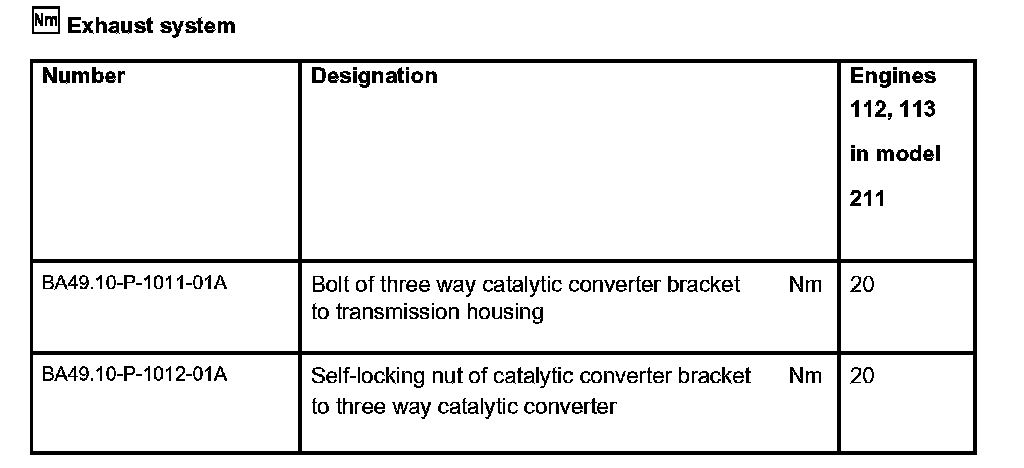

Exhaust system:

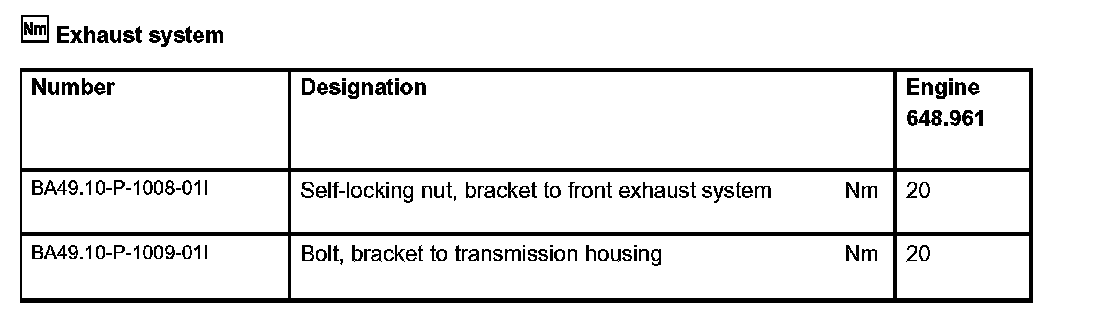

Exhaust system:

Exhaust system:

Exhaust system:

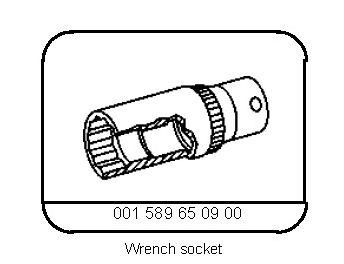

Special Tools:
