Lighting - Headlamp Curve Illumination Nonfunctional

Date: June 16, 2008

Order No.: P-B-82.10/626

Supersedes:

Group: 82

SUBJECT:
Model 211.026/065/070/076/082/083/265/276/282/283,
Up to VIN A564853 and X161341

Equipped with Bi-Xenon and Curve Illumination Curve Illumination Nonfunctional

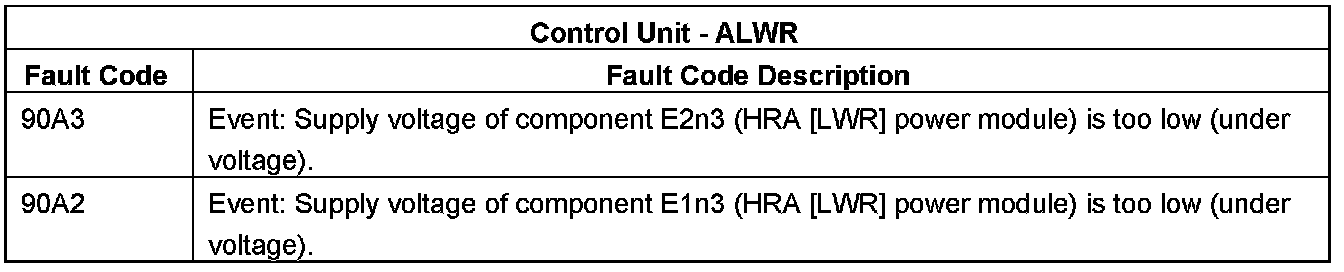

If you receive customer reports in the above model vehicles that the curve illumination is nonfunctional or the following fault codes shown above are present, the actuator lines for the motor, sensor and/or bi-xenon bulb of the reflector module can chafe on the metallic leaf spring (see picture 2) during swivel operations and cause a short circuit. To resolve, apply insulating repair film to both headlamps as instructed below.

1. Open headlamp cover. If necessary, remove headlamp.

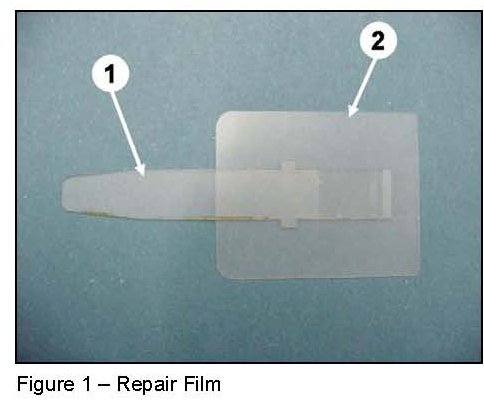

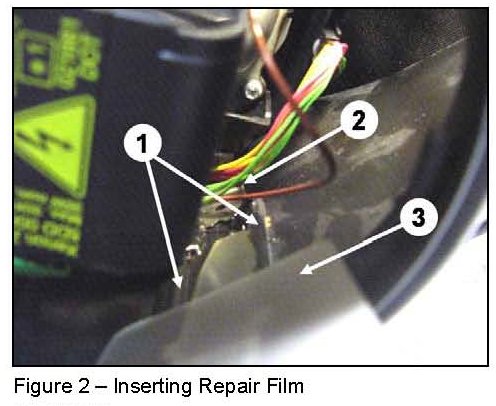

2. Insert repair film with guide film (Figure 1, 1) downwards between the two bars in the headlamp (Figure 2, 1)

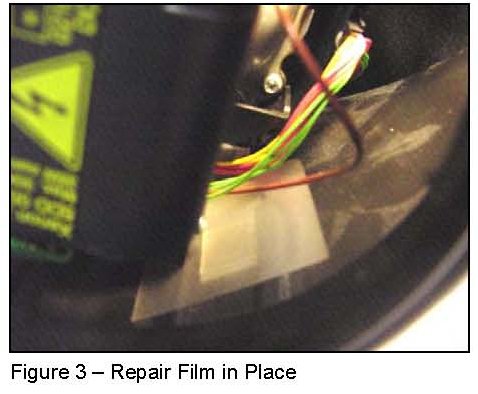

3. Continue inserting the repair film all the way in (Figure 3).

4. Close headlamp cover.

5. Perform quick test.

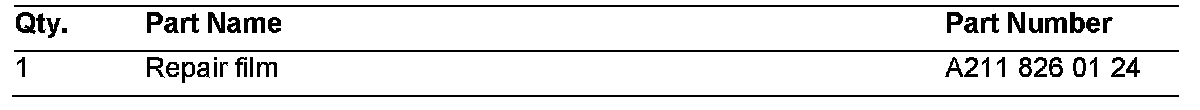

Parts Information

Note:
The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on June 16, 2008. Please refer to Netstar --> Star TekInfo --> Star Time for the most current labor time allowance.

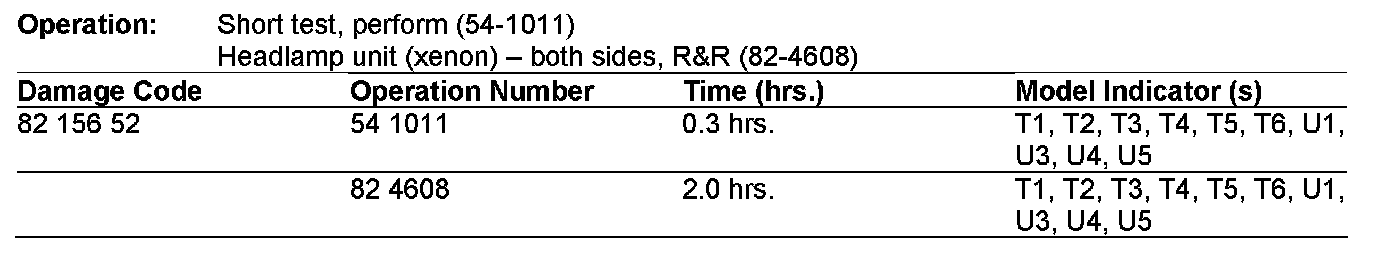

In Case of Warranty, use the table.
