Body - Front Door Window Glass Broken/Separated

Date: June 4, 2009

Order No.: P-B-72.10/111

Supersedes:

Group: 72

SUBJECT:
Model 211.026/065/070/076/265

Side Window Laminated Safety Glass (Code 596) Detaches from Retaining Rails

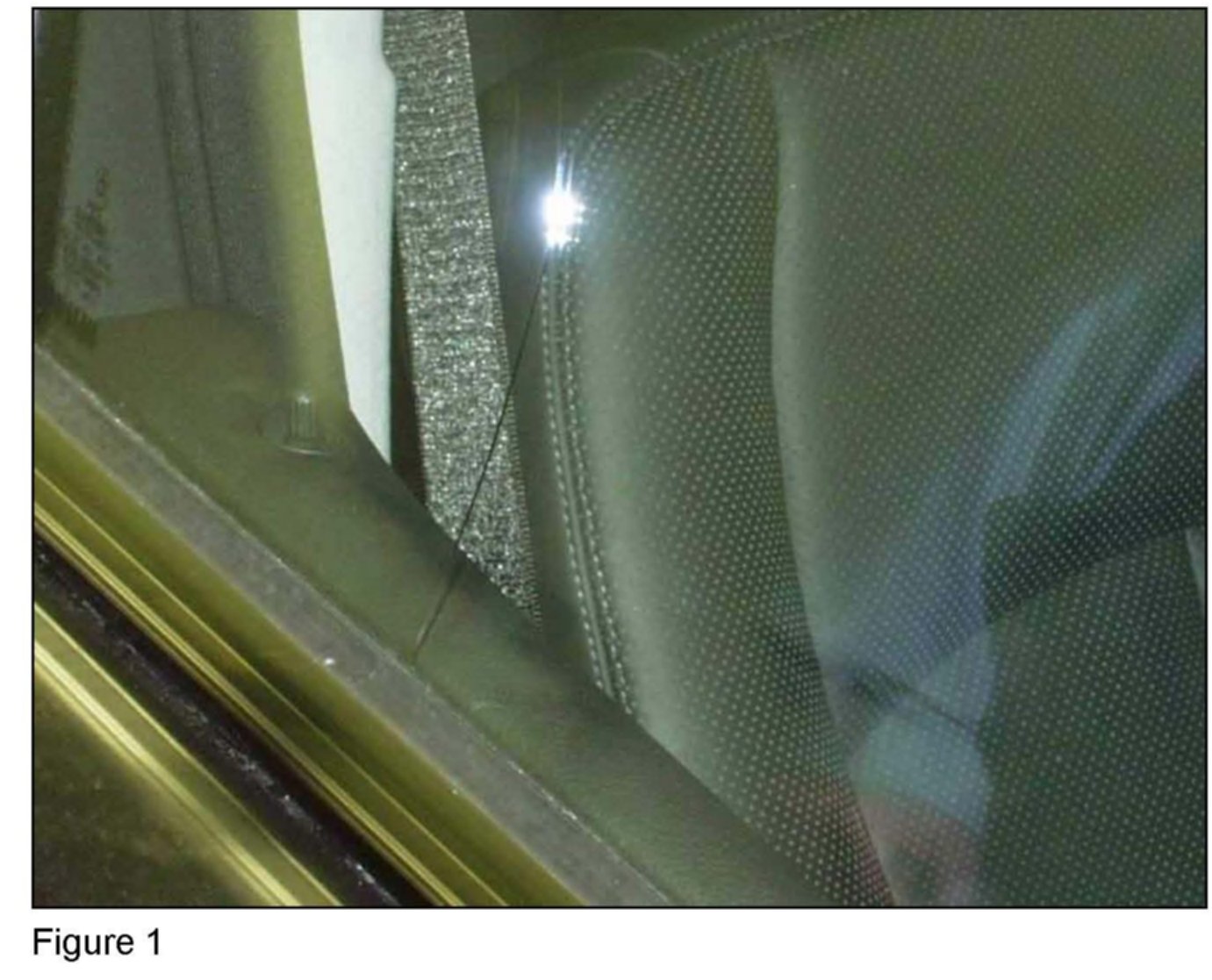

If you receive customer reports in the above model vehicles where the side windows detach from the window retaining rails (broken side window) (Figure 1), replace the laminated safety glass side window including the window retaining rail. If the problem reoccurs, the power window motor must also be replaced.

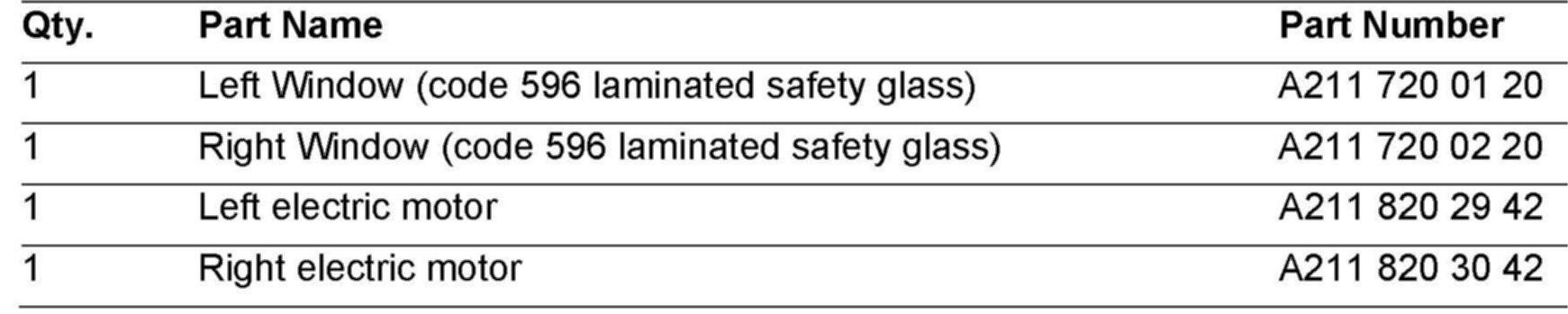

Parts Information

Note:

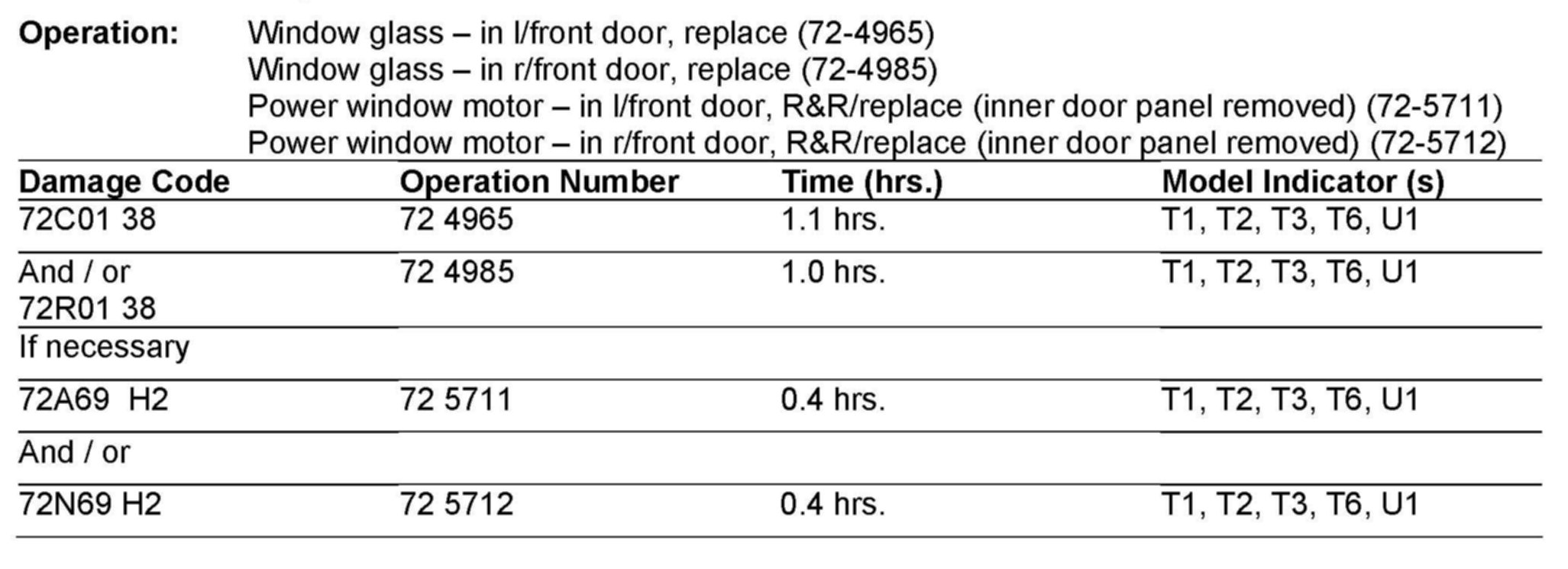

The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on June 4, 2009. Please refer to Netstar --> Star TekInfo --> Star Time for the most current labor time allowance.





In Case of Warranty, use the table above.
