Audio System - Satellite Radio Installation/Set-Up: Overview

Date: November 2005

Order No.: P-I-82.60/466

Supersedes:

Group: 82

SUBJECT:
MODEL 211.026/056/070/076/083/087 (Up to chassis end number A775856 or Up to chassis end number X186330 or With option code 413 [Panoramic Sunroof])

MODEL YEAR 2006

SATELLITE RADIO INSTALLATION

We are interested in your comments and suggestions-please email them to: StarTekInfo@MBUSA.com

WARNING
Do not disconnect the negative battery cable. Extensive reprogramming requirements are otherwise necessary. Wiring harnesses are therefore electrically active.

Severe vehicle damage, personal injury, or death from electrical shock could result. Exercise extreme caution while executing these installation instructions. Keep the ignition and radio powered OFF through the final test.

Notes on MOST optical fibers

^ Optical fibers damage easily-handle optical fibers with care to prevent cuts, nicks, abrasions, and crushing.

^ Optical fiber ring configurations" must form a closed loop to function (i.e. couple the input of a component with the output of the preceding component).

^ Identify MOST optical fibers by their orange, semi-rigid insulation.

^ Electromagnetic interference (EMI) from bundled vehicle electrical harnesses does not affect optical fibers.

NOTICE!
Incorrect installation of connectors can result in damaged, bent pins. Damaged, bent pins will result in component malfunction or failure. Inspect connectors before and after installation.

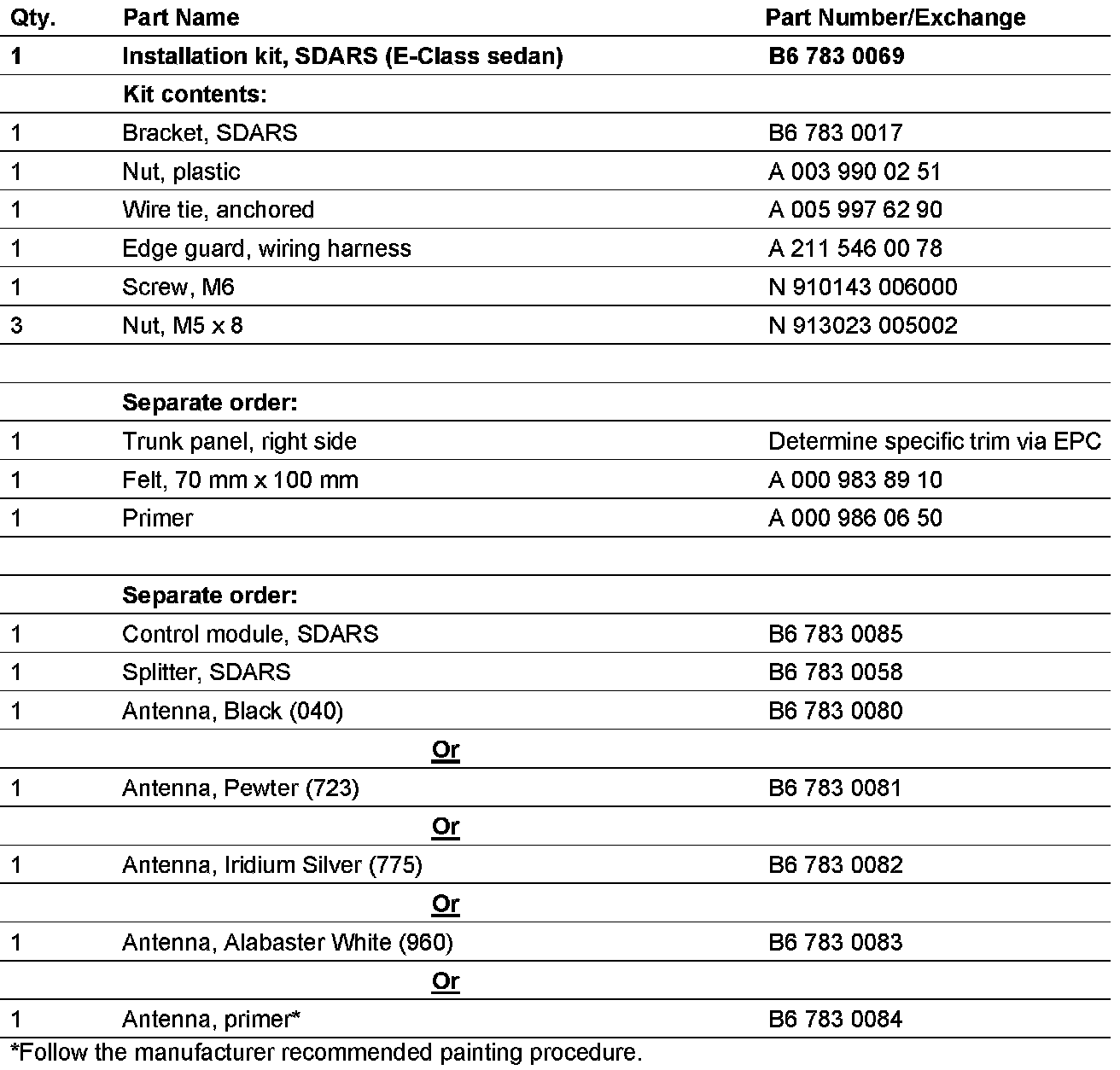

K. Parts Information

Note:
This installation, and any subsequent related installation and/or workmanship issues, cannot be claimed under warranty.
