AR32.22-P-2011T Replace Rubber Mount For Compressor



AR32.22-P-2011T Replace rubber mount for compressor
- with CODE (489) AIRmatic (semi-active air suspension)

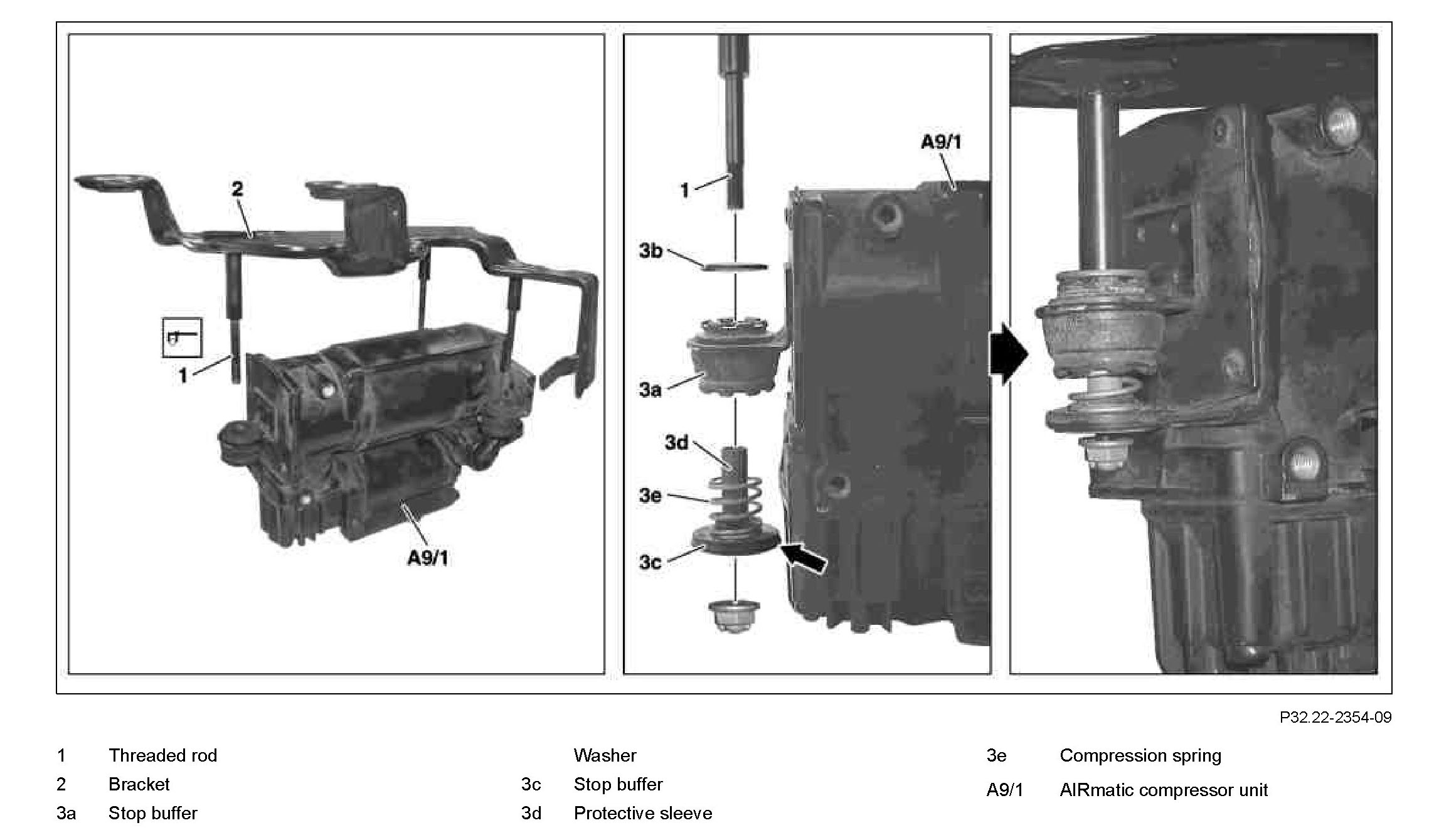

Component Identification:

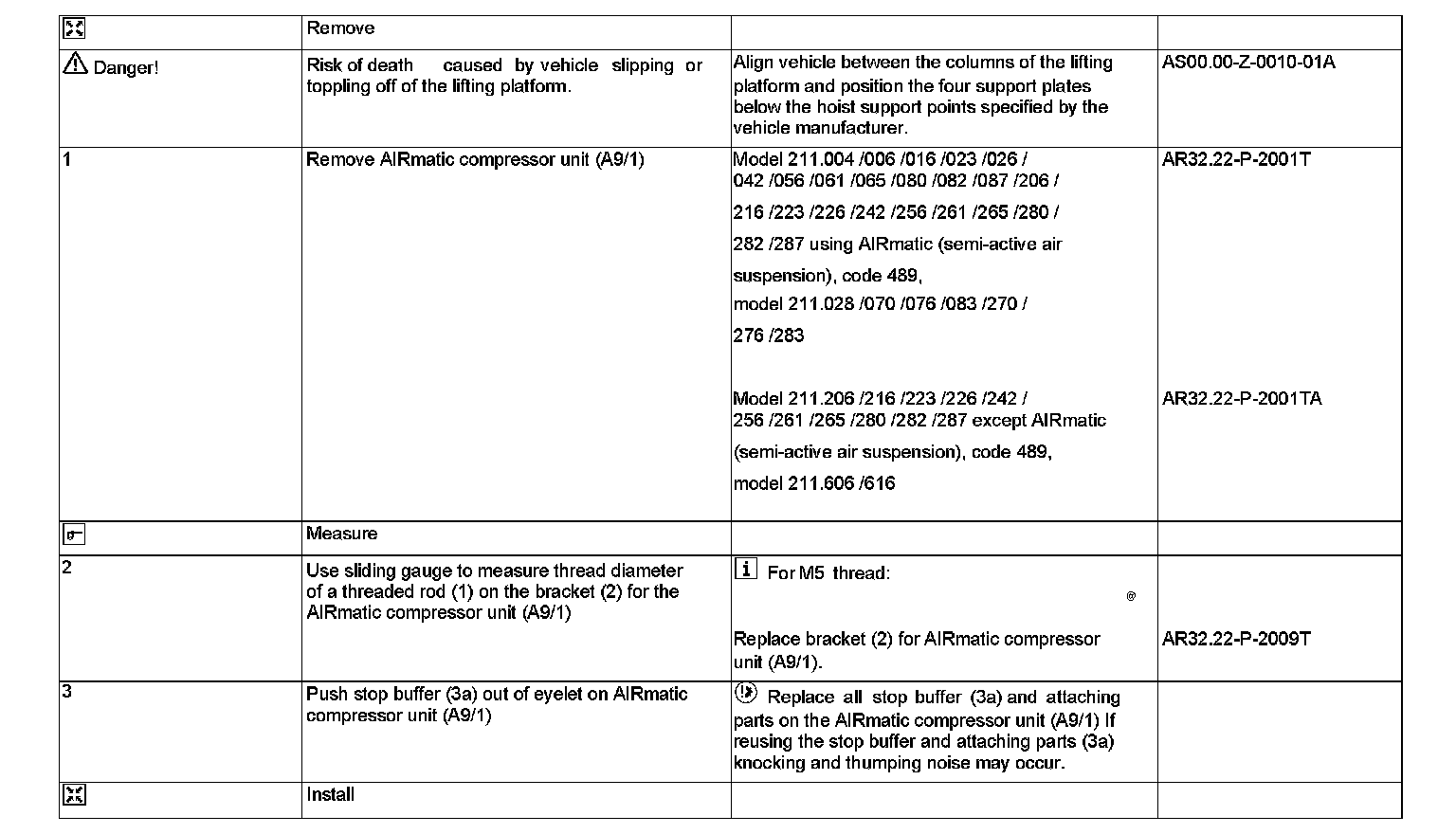

Steps 1 - 3:

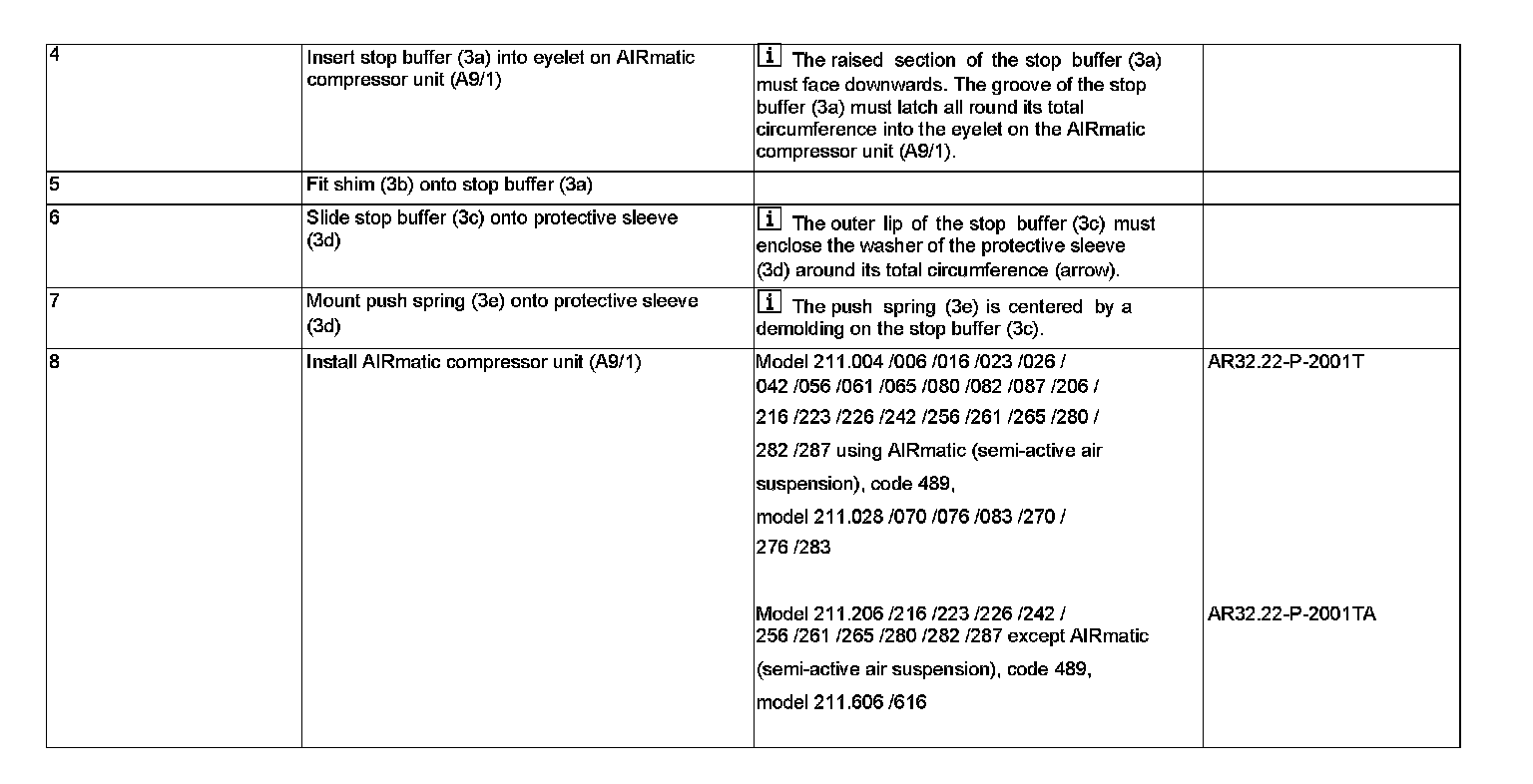

Steps 4 - 8:
