AR46.30-P-0500T Removing and installing
power steering pump

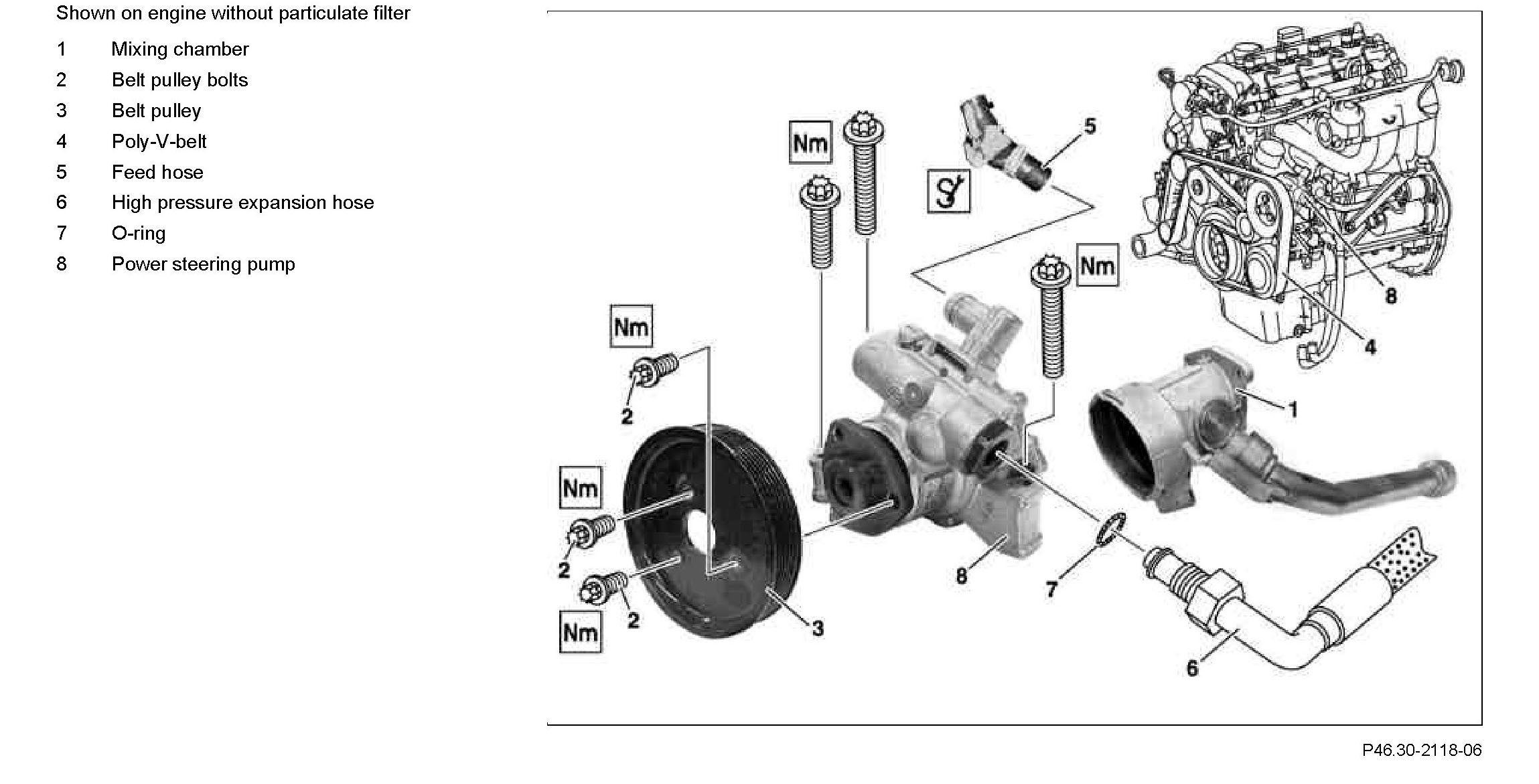

Component Identification:

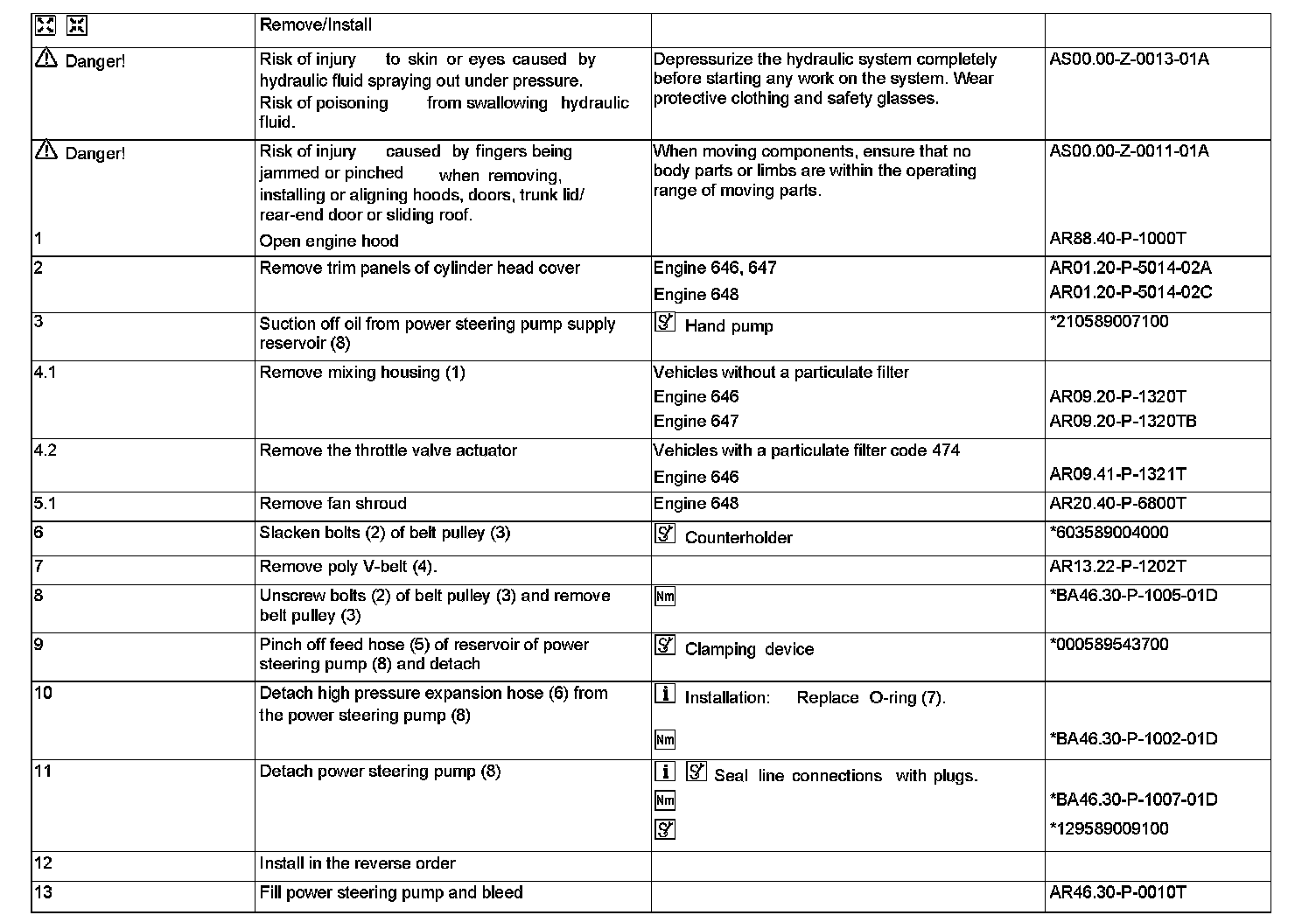

Steps 1 - 13:

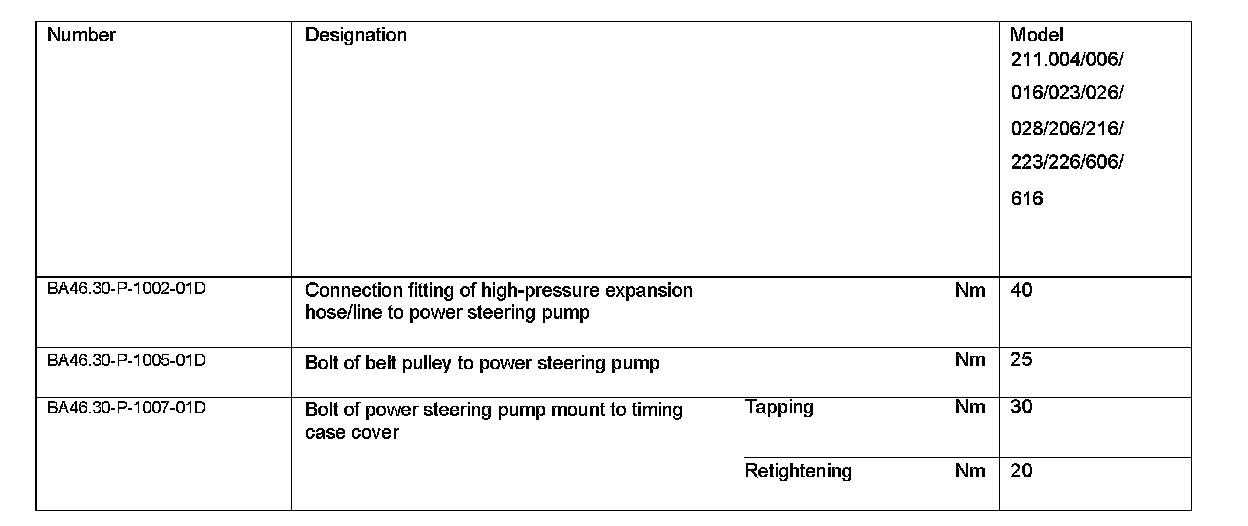

Power Steering Pump:

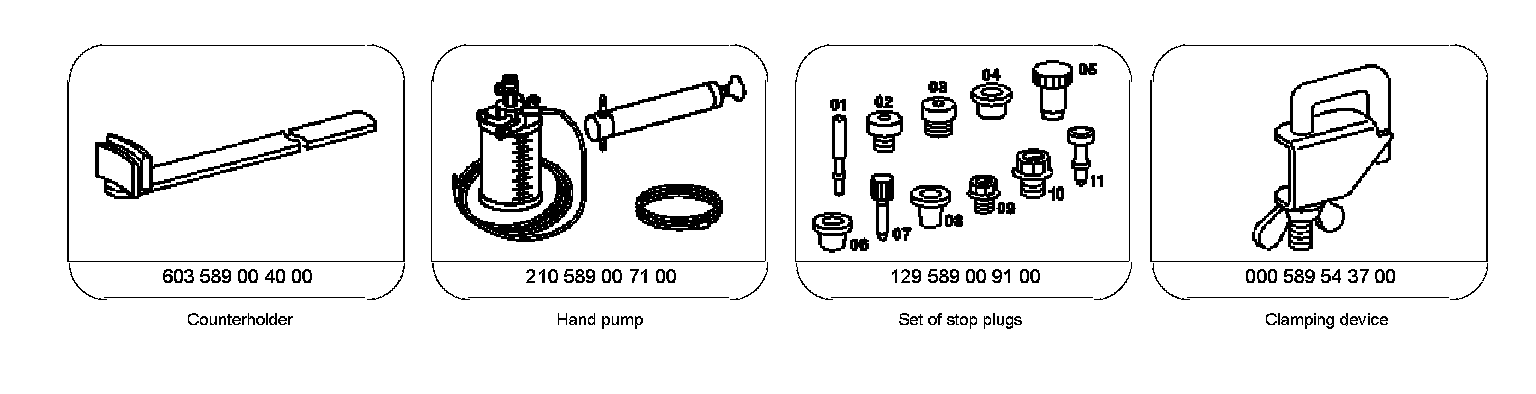

Special Tools:
