Removal and Replacement

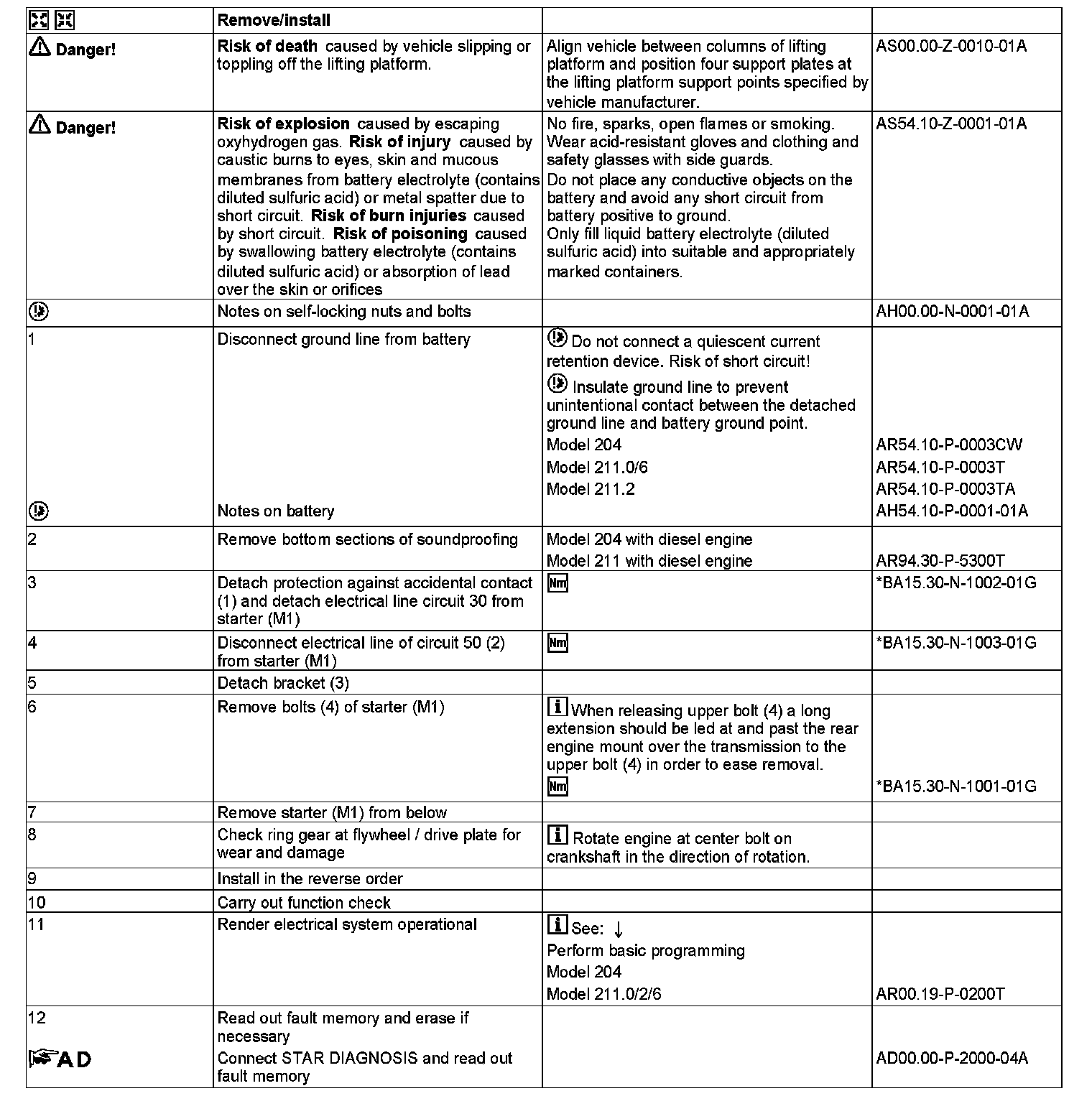

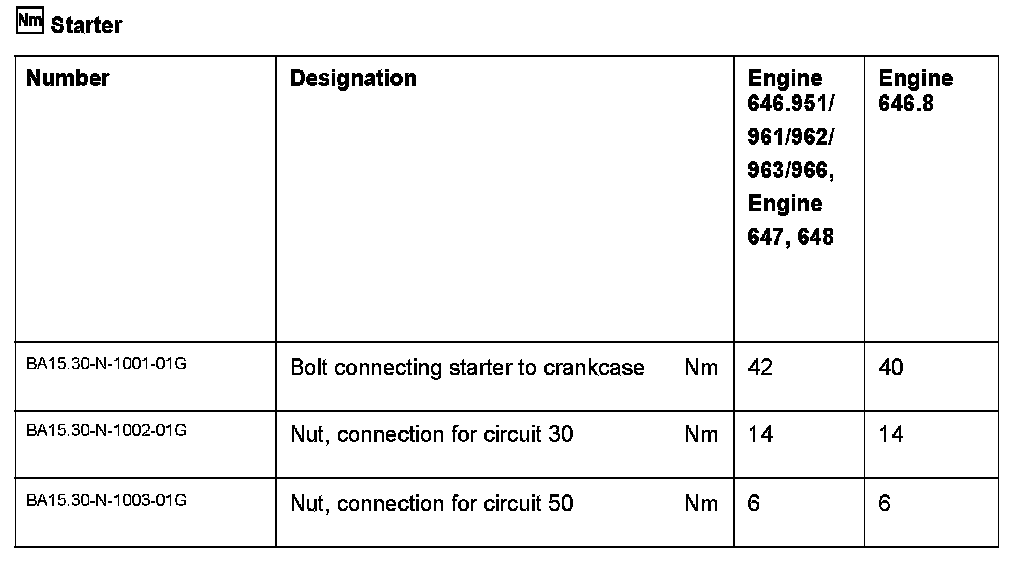

AR15.30-P-7100T Remove/Install Starter
ENGINES 646.951 in MODEL 211.004
ENGINES 646.961 in MODELS 211.006 /206 /606
ENGINES 647.961 in MODEL 211.016 /216 /616
ENGINES 648.961 in MODEL 211.023 /223 /026 /226
ENGINES 646.8 in MODEL 211, 204

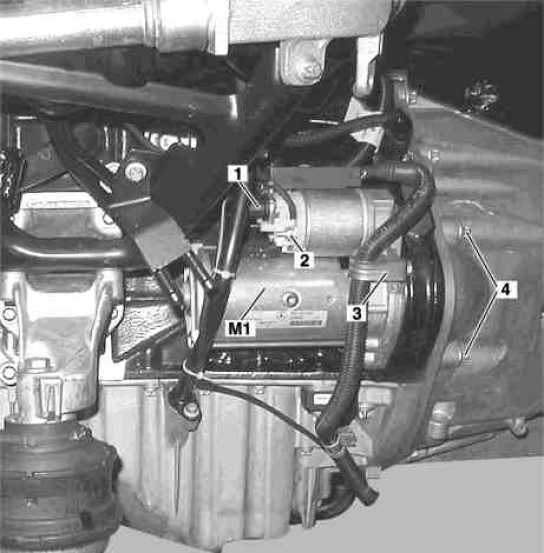

Shown on engine 646.9

1 Contact protection
2 Electric cable circuit 50
3 Bracket
4 Bolts

M1 Starter
