AR15.30-P-7100T Remove/install starter

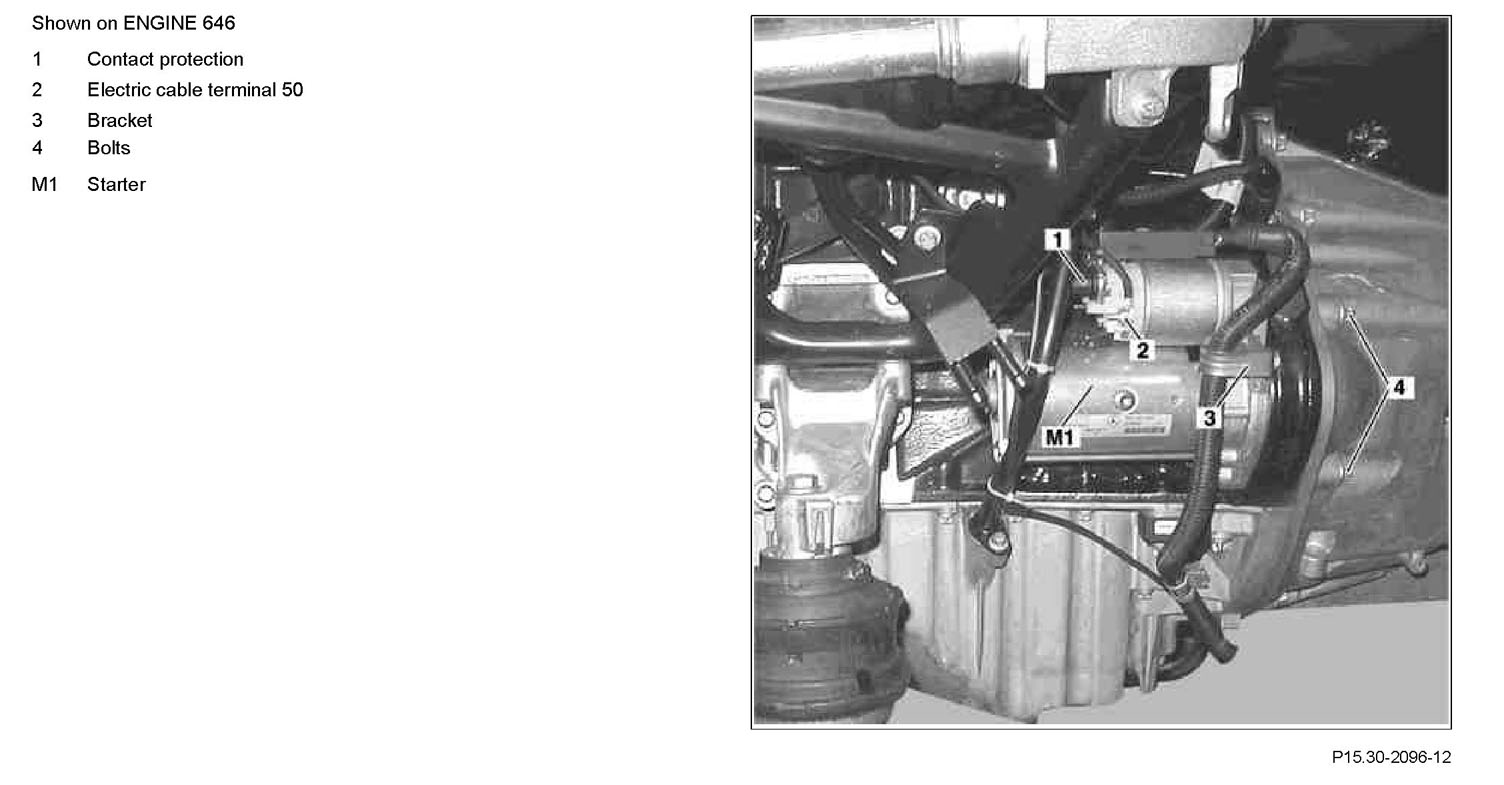

Component Identification:

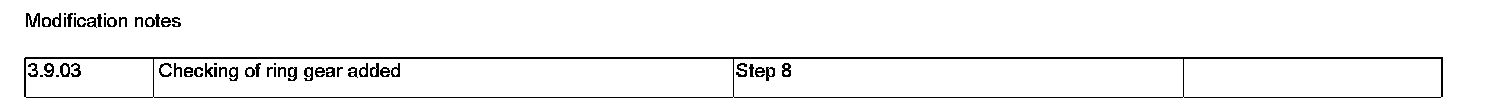

Modification Notes:

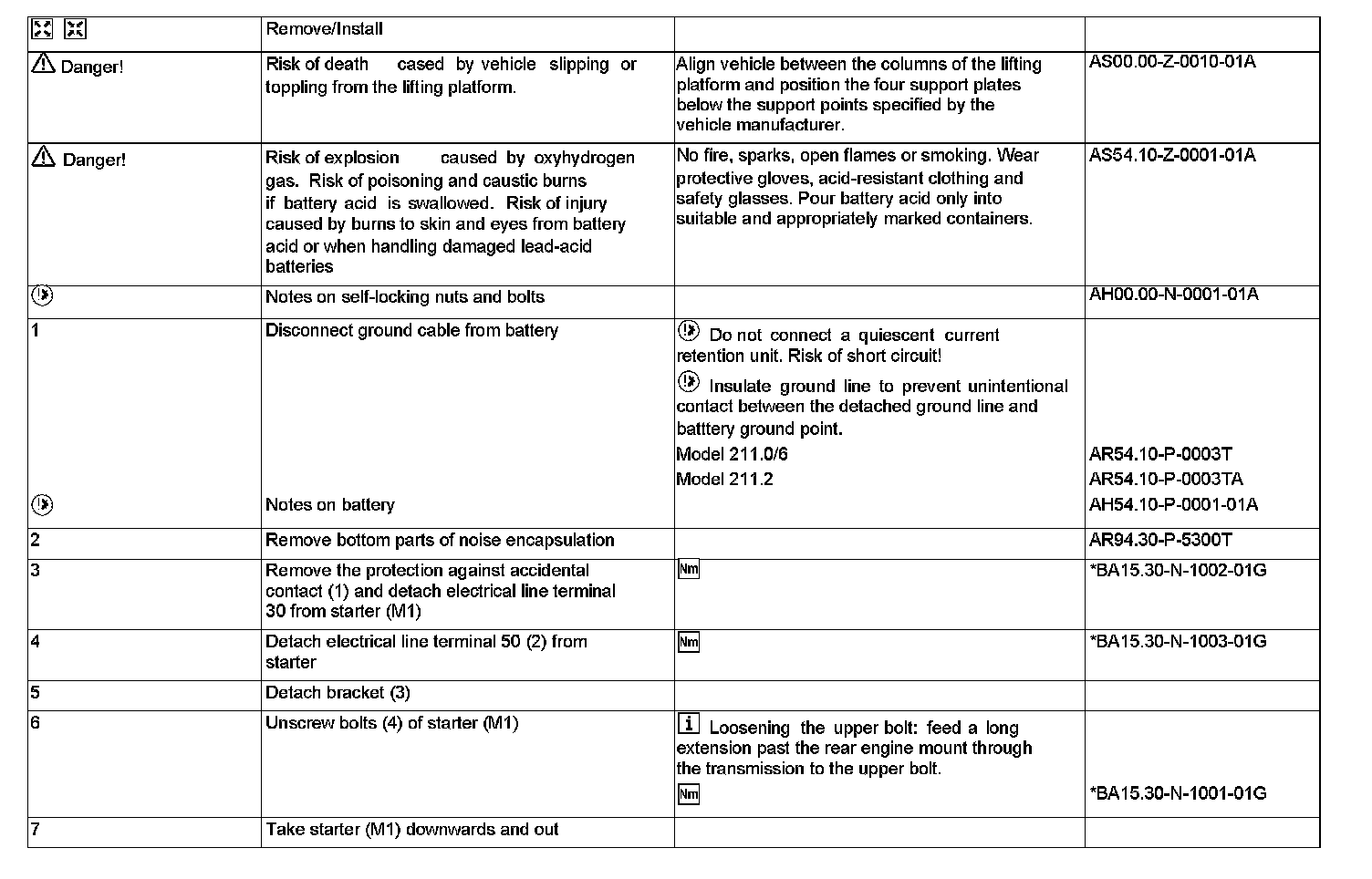

Steps 1-7:

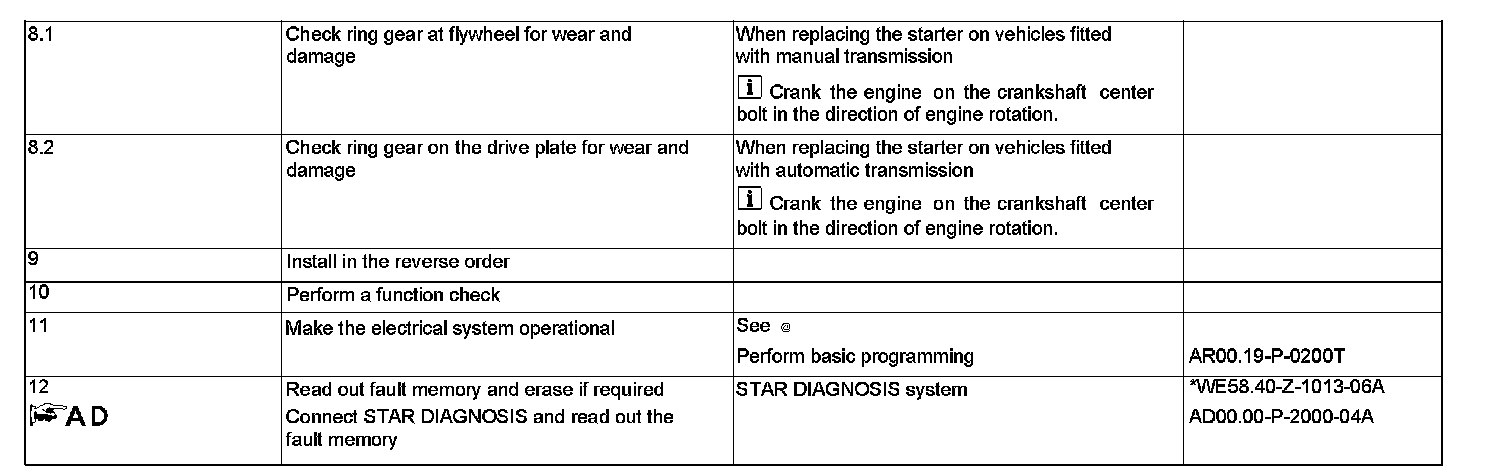

Steps 8.1-12:

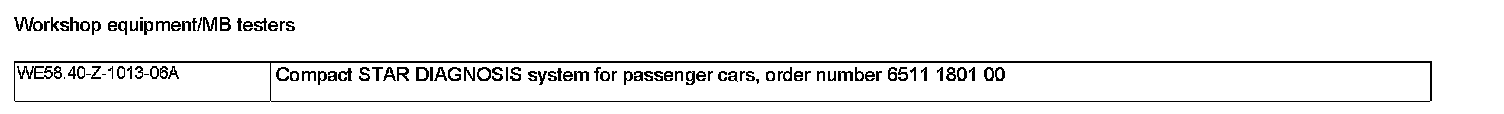

Workshop Equipment/MB Testers:
Workshop Equipment/MB Testers:
