Auxiliary Battery Relay: Service and Repair

AR54.15-P-2000T Remove/Install Auxiliary Battery Relay

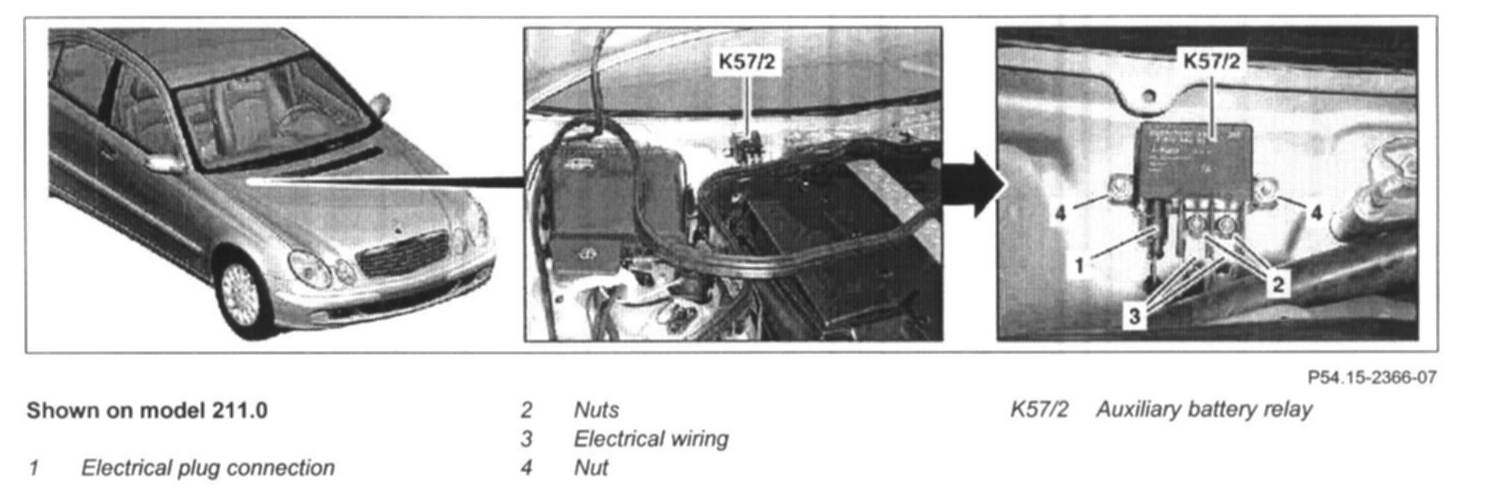

Shown On Model 211.0:

1 Remove water collector
2 Disconnect ground cable from auxiliary battery
3 Disconnect electrical connector (1) from auxiliary battery relay (K57/2)
4 Unscrew nuts (2) and remove electric cables (3).

NOTE: Mark installation position of electric lines (3).

5 Unscrew nuts (4) and remove auxiliary battery relay (K57/2)
6 Install in the reverse order
