GF54.15-P-1256-06TM Fuse Assignment of Fuse and Relay Box In Trunk



GF54.15-P-1256-06TM Fuse Assignment Of Fuse And Relay Box In Trunk
- as of model year 07

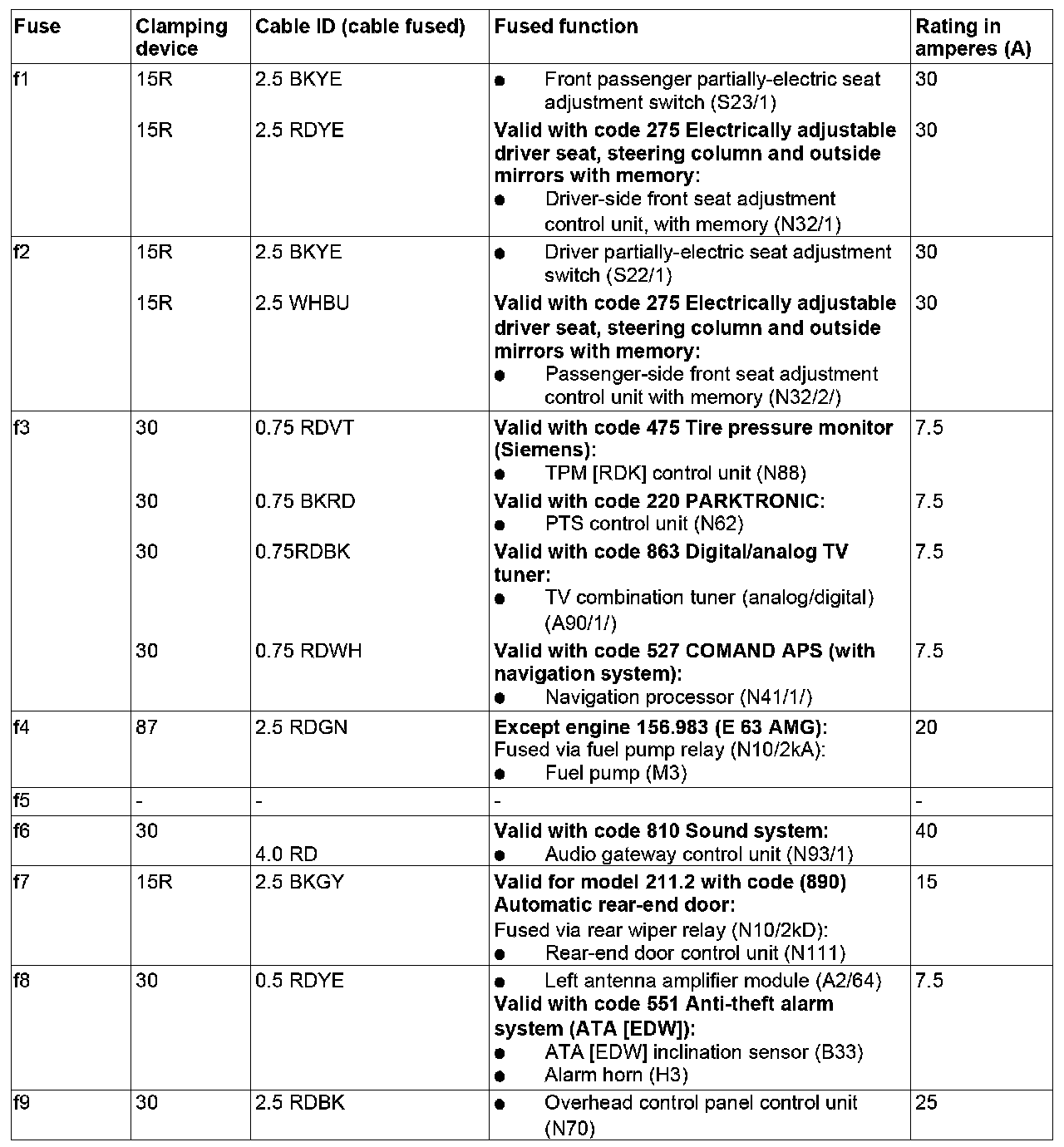

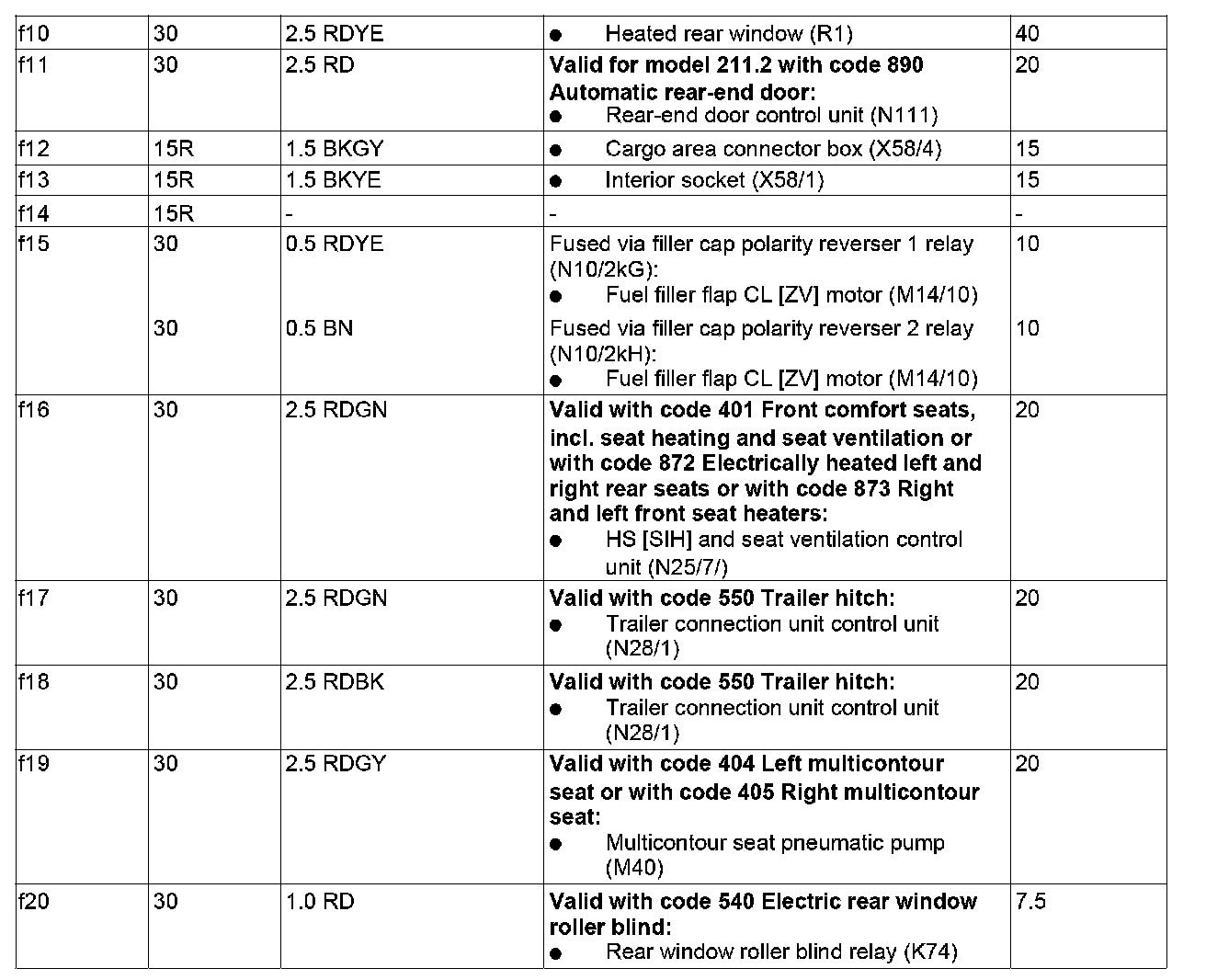

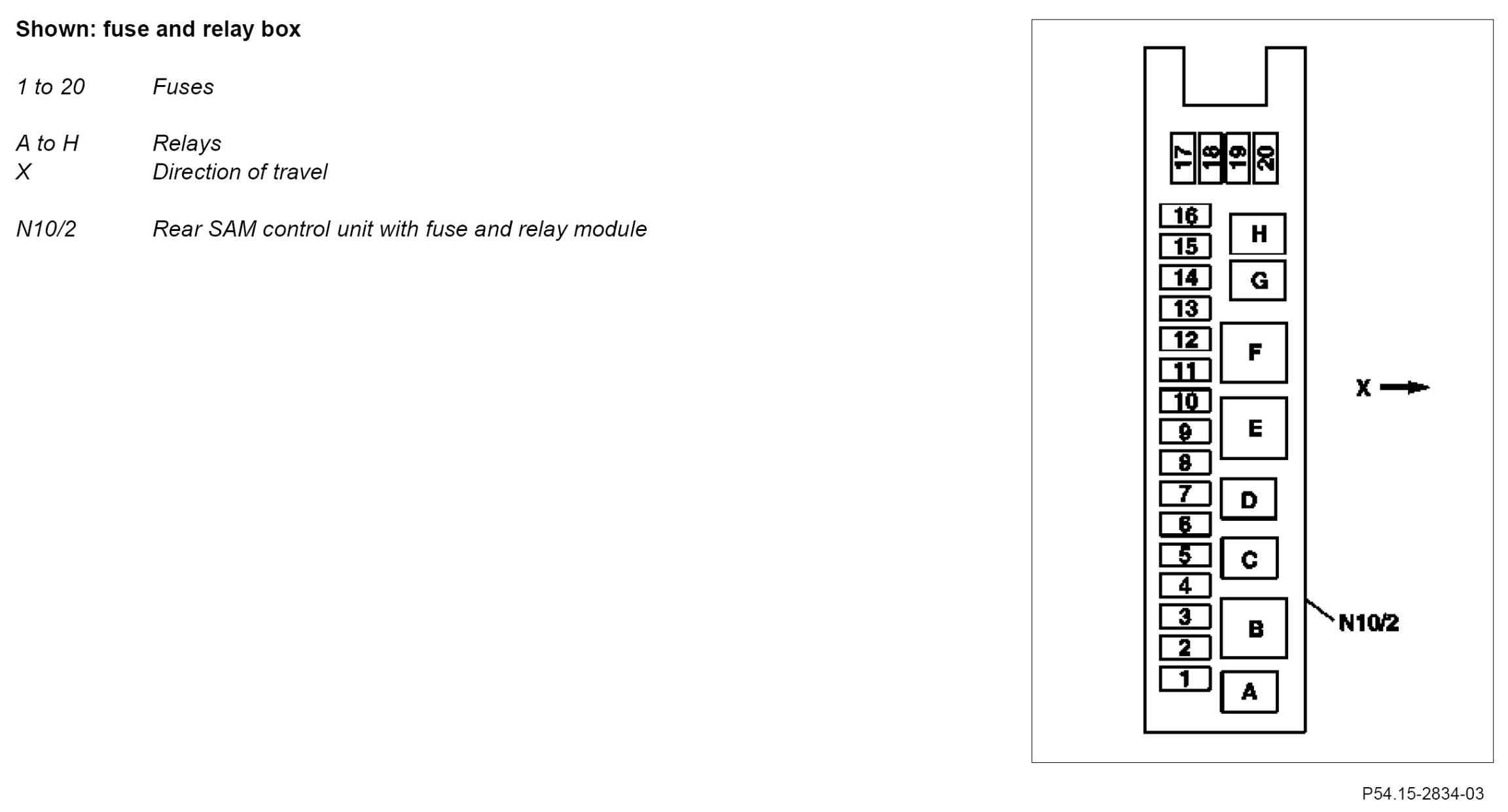

Component Identification:
