Charging System: Diagrams

Wiring Diagram For Alternator PE15.40-P-2000DB

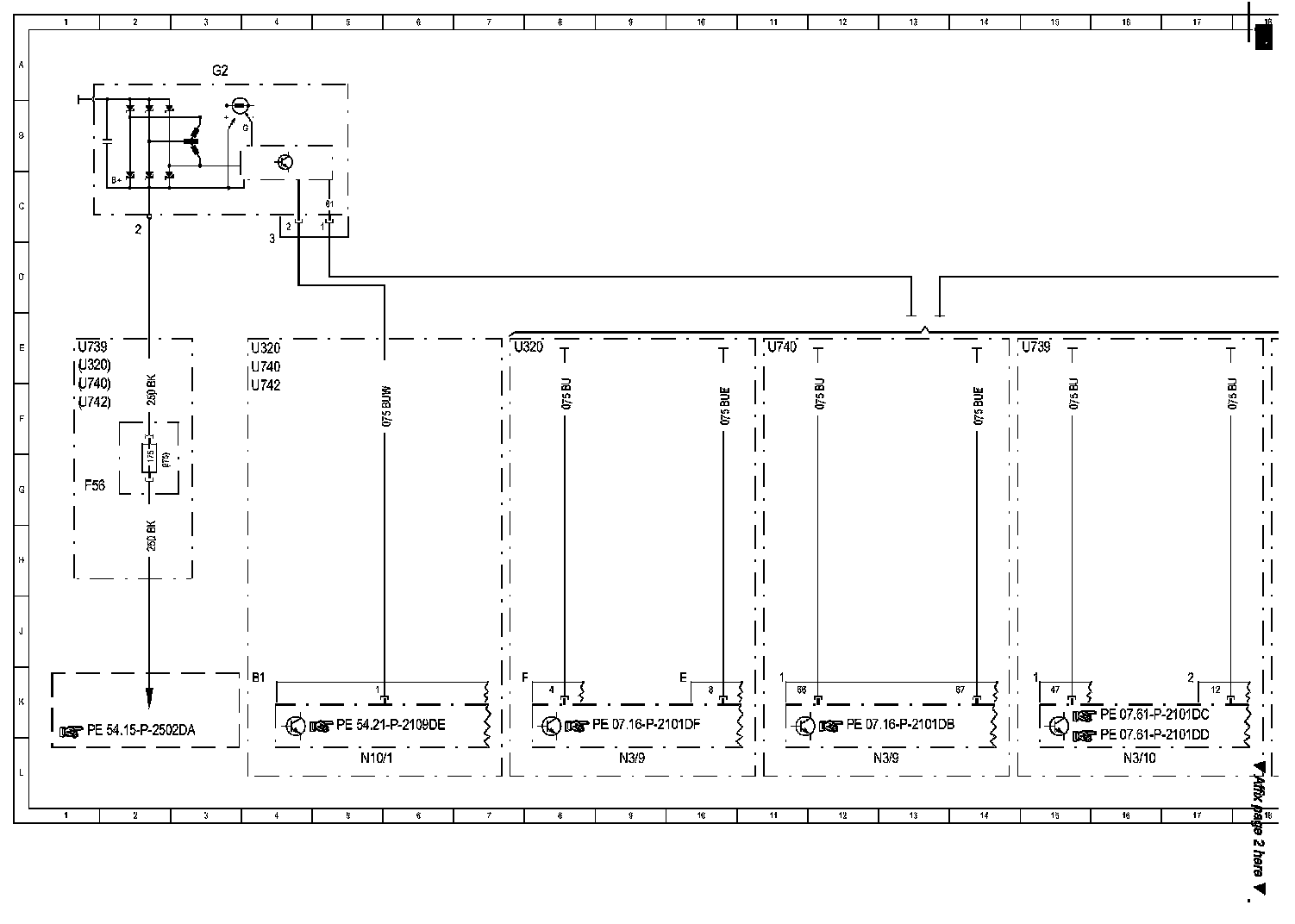

Wiring Diagram (Part 1):

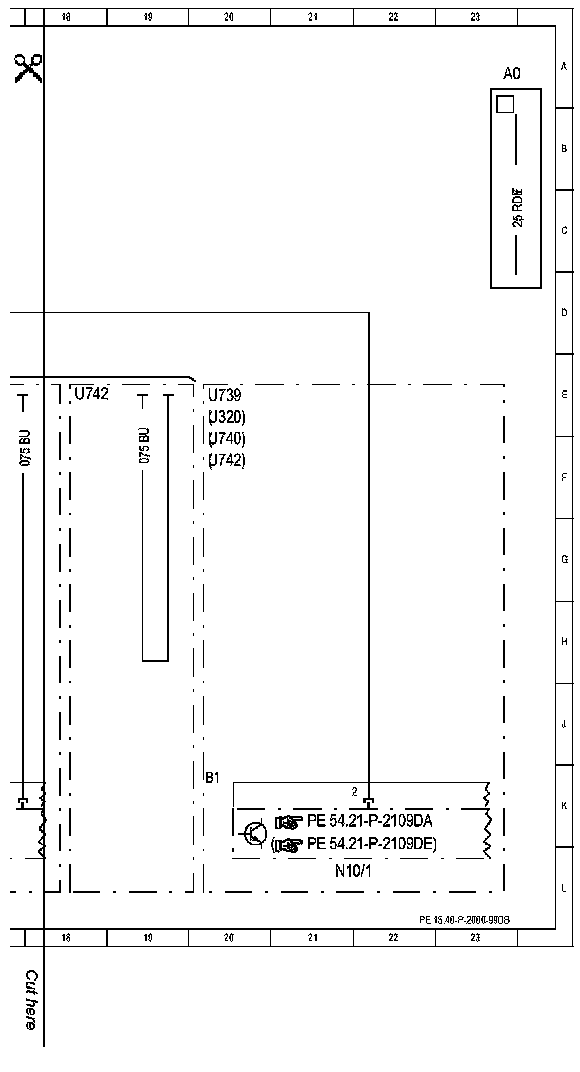

Wiring Diagram (Part 2):

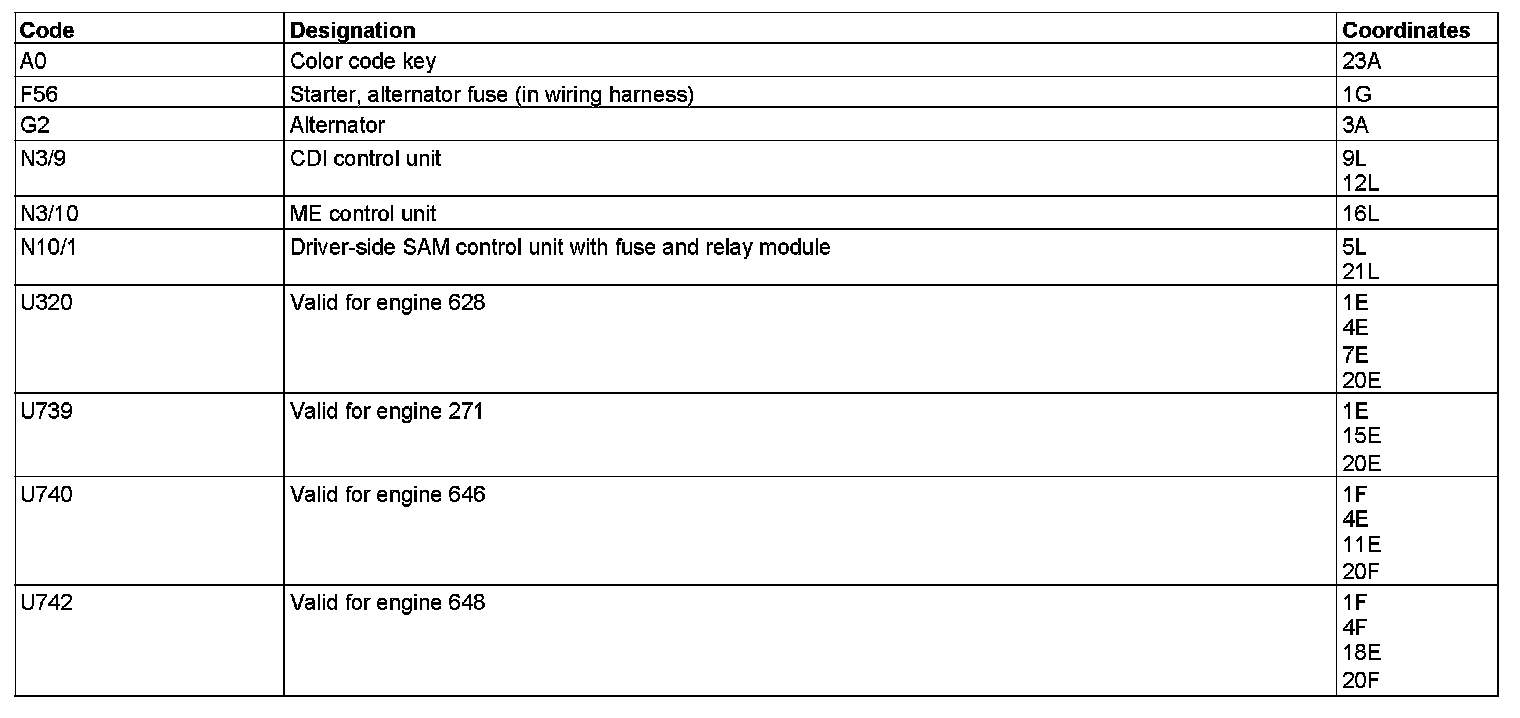

Component Description/Coordinates, A0 To U742:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
