Alternator: Service and Repair
AR15.40-P-5032TA Remove and Install Generator

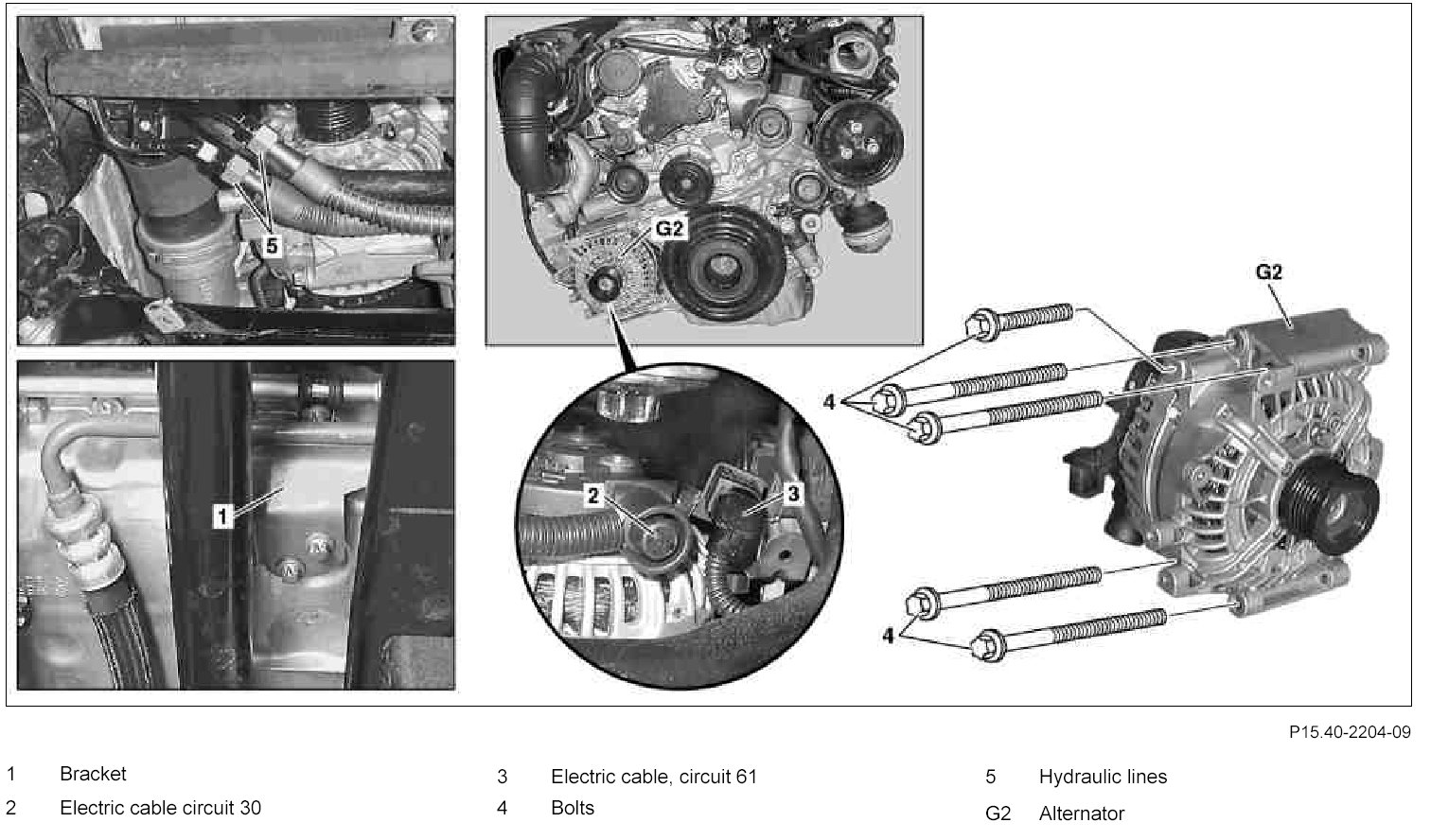

Component Identification:

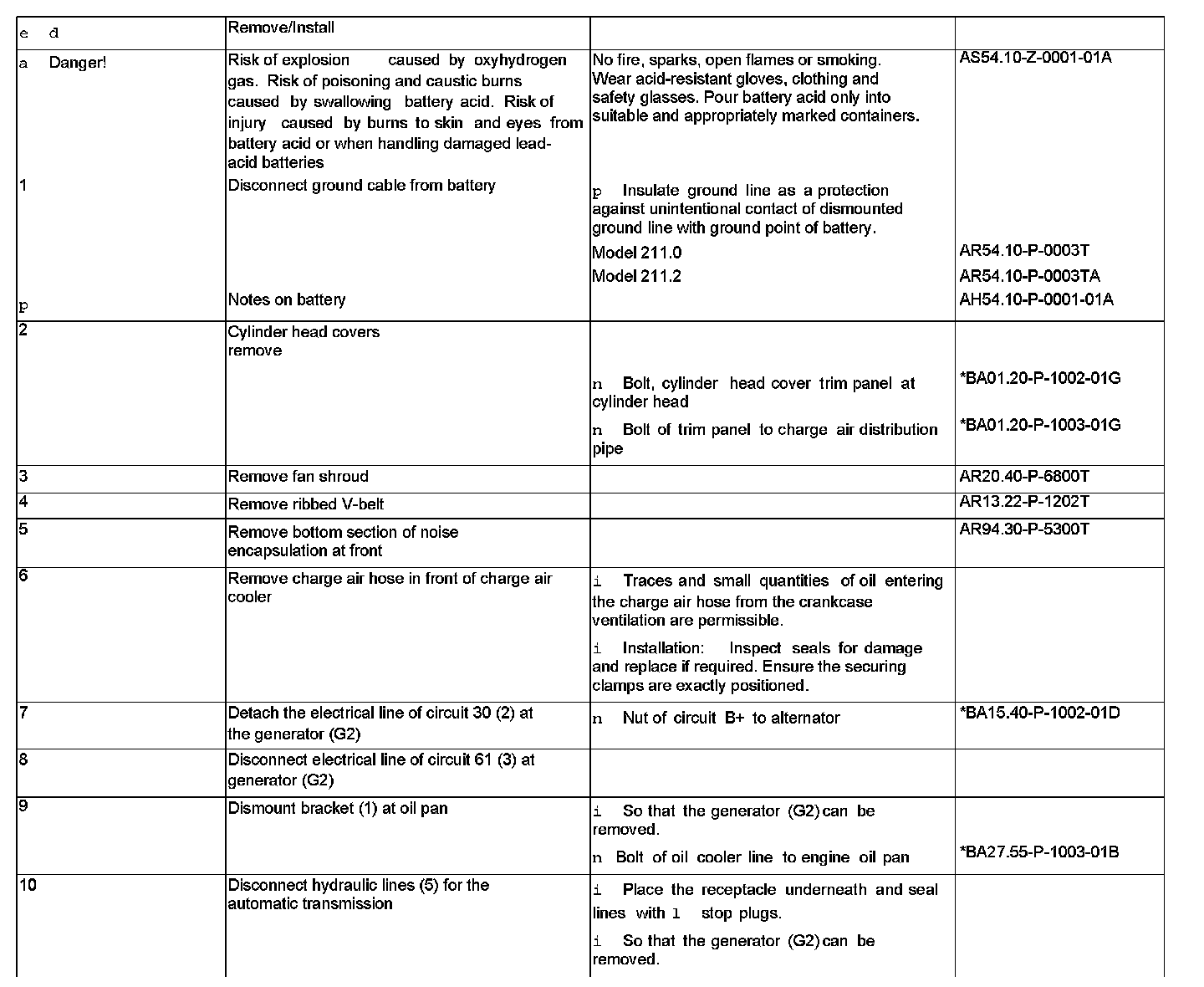

Steps 1 - 10:

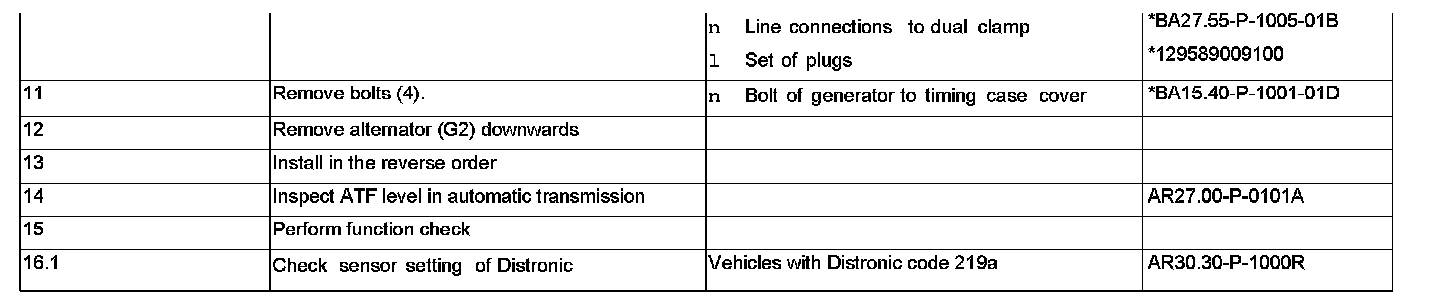

Steps 11 - 16.1:

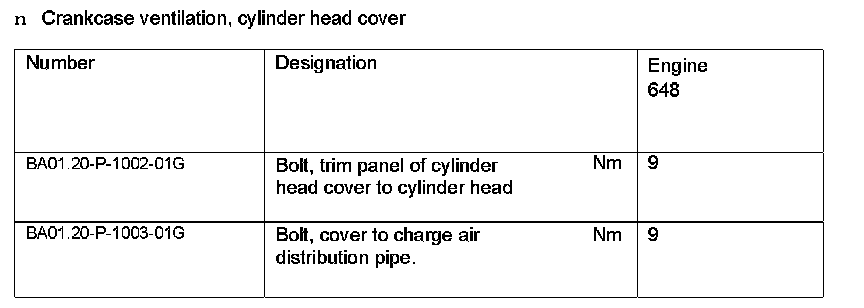

Crankcase Ventilation, Cylinder Head Cover:

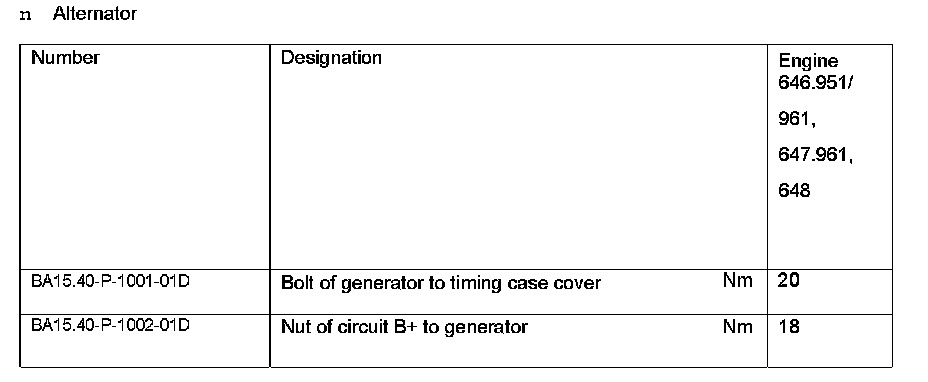

Alternator:

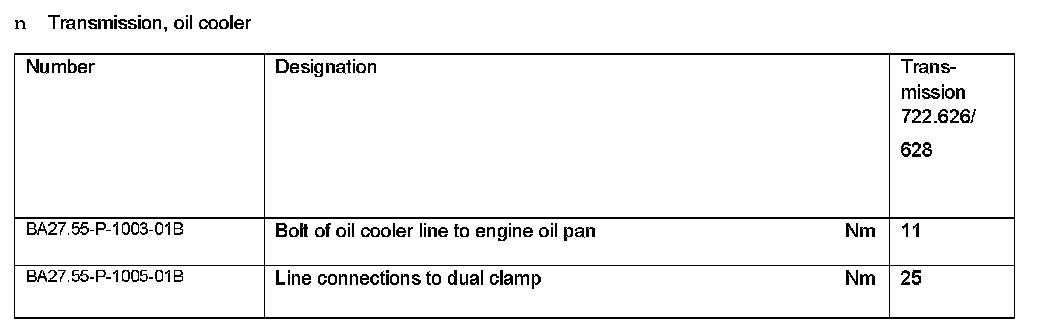

Transmission, Oil Cooler:

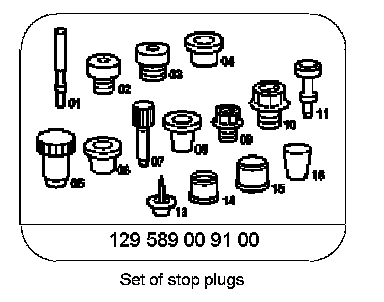

Special Tools:
AR15.40-P-5032TA Remove and Install Generator
