Alternator Pulley / Clutch: Service and Repair
AR15.40-P-5710IA Remove/install
alternator
belt pulley

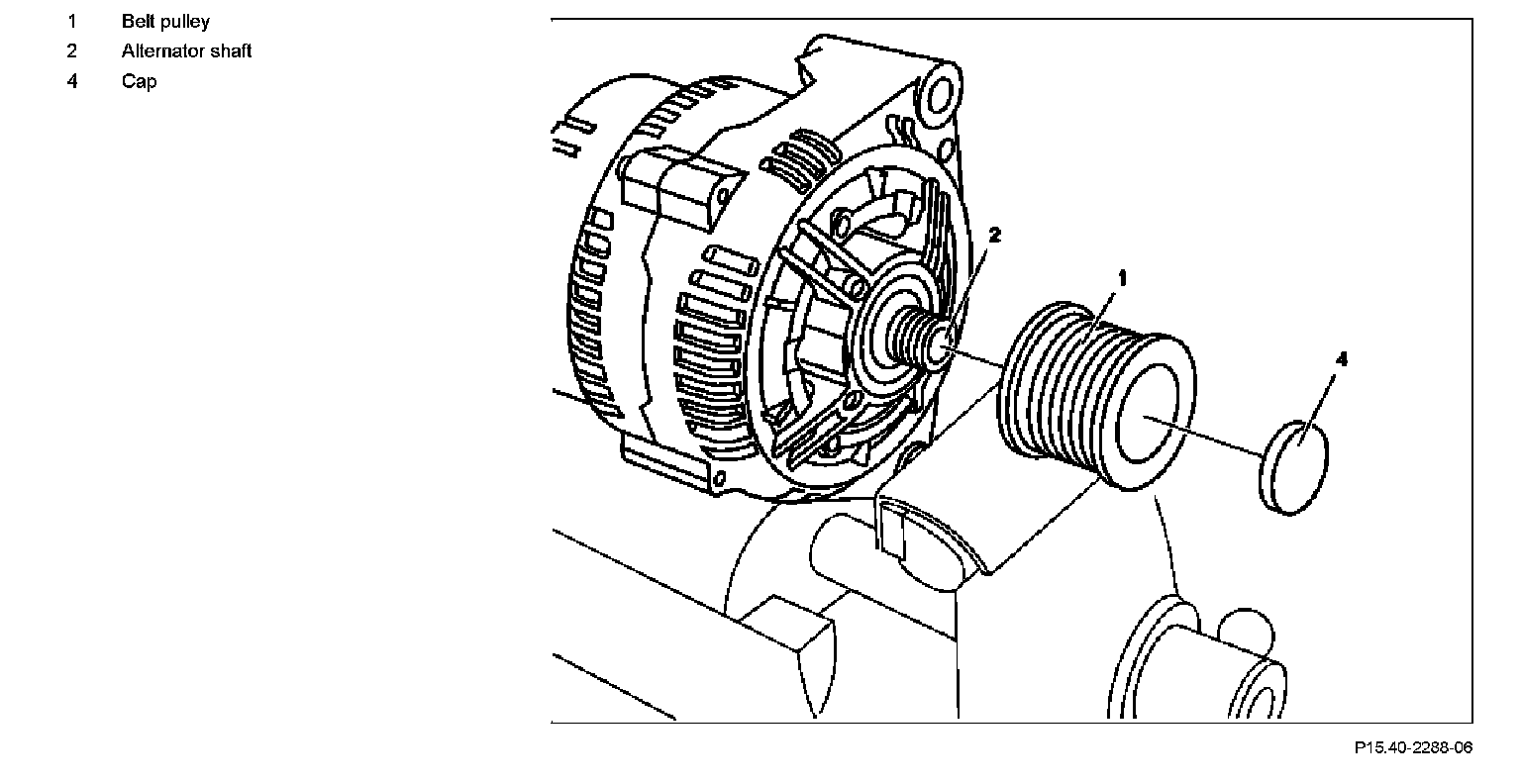

Component Identification:

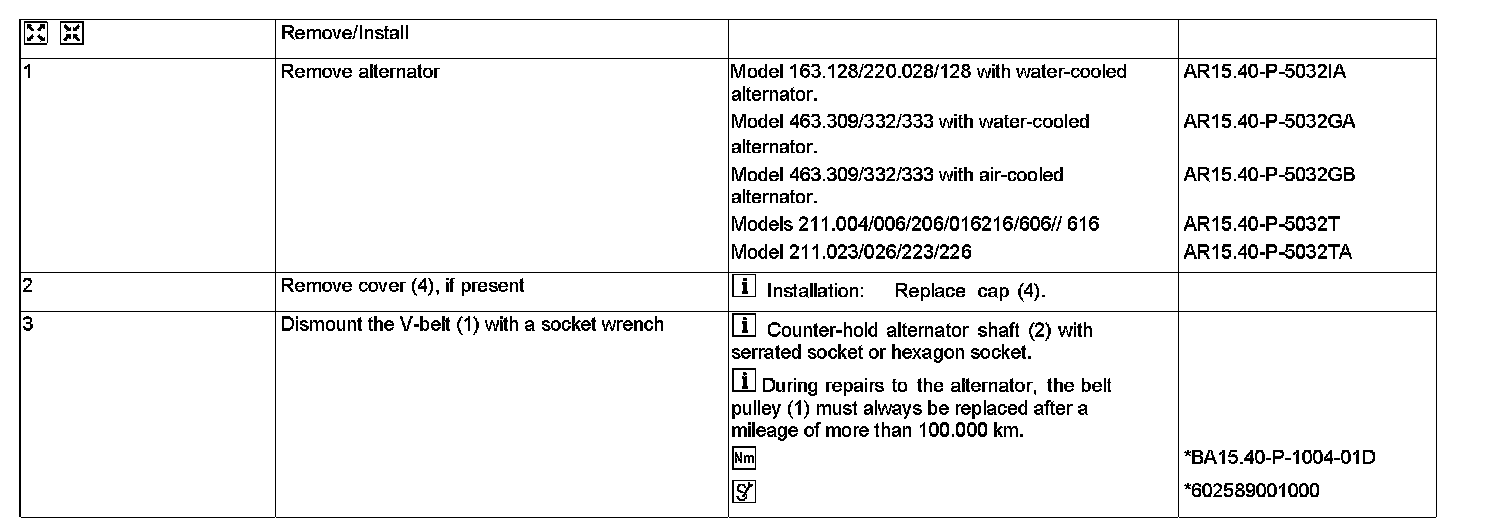

Steps 1-3:
Step 4:

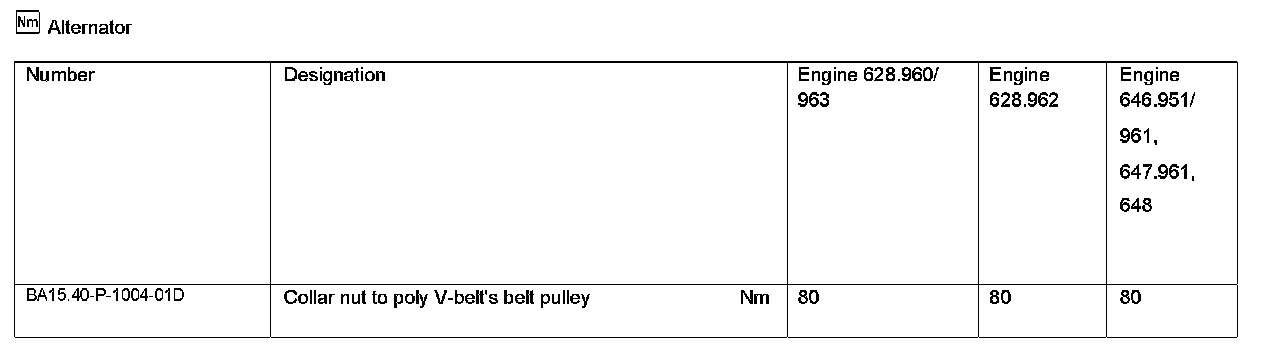

Altenator:

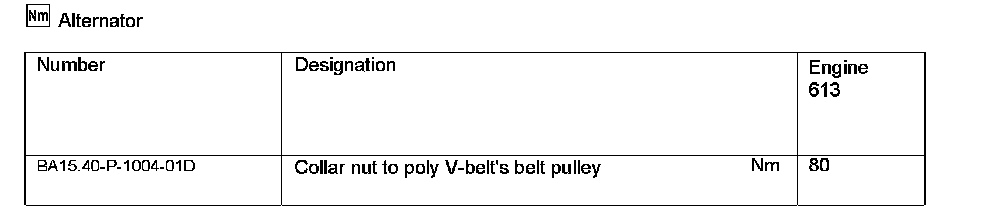

Altenator:

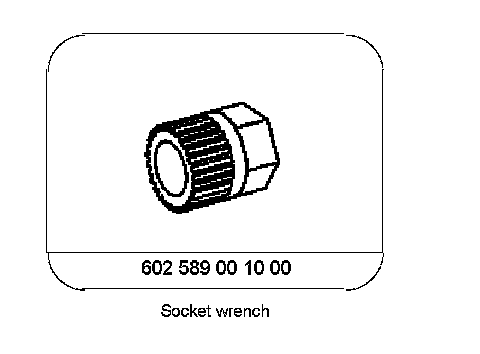

Special Tools:
