E 320 CDI (211.026) L6-3.2L DSL Turbo (648.961)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Battery
>>
Testing and Inspection
>>
AR54.10-P-1129TX Check Condition of Battery
AR54.10-P-1129TX Check Condition of Battery
AR54.10-P-1129TX Check Condition Of Battery

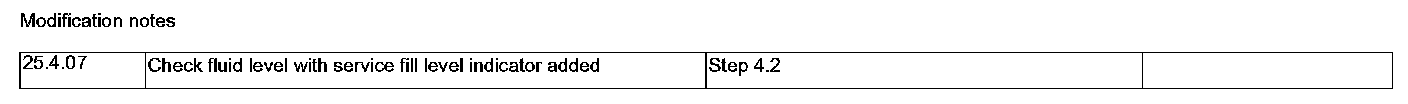

Modification Notes:

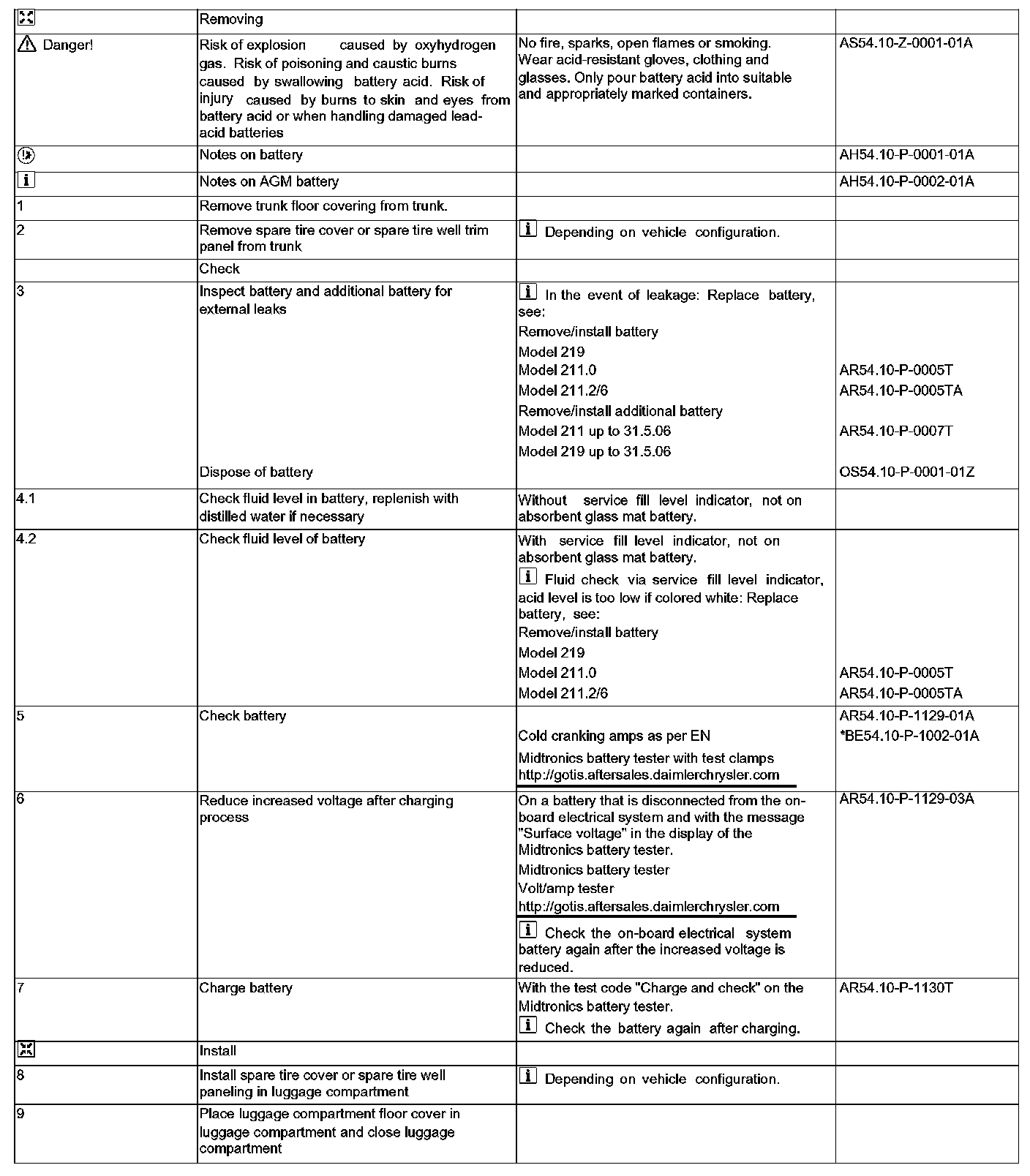

Steps 1 - 9:

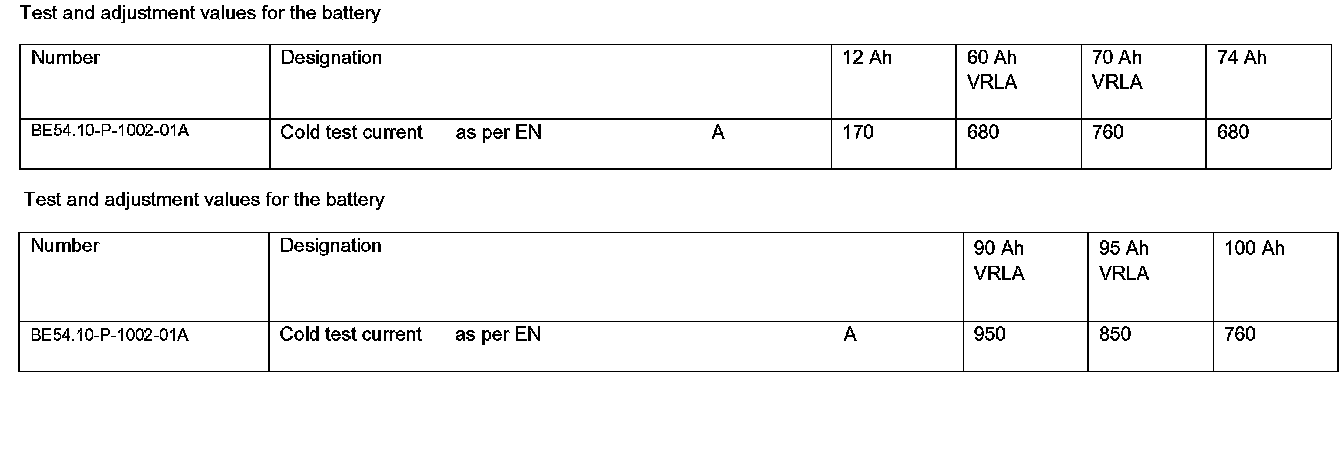

Test And Adjustment Values For The Battery:
