Home >> Mercedes Benz >> 2006 >> E 320 CDI (211.026) L6-3.2L DSL Turbo (648.961) >> Repair and Diagnosis >> Specifications >> Pressure, Vacuum and Temperature Specifications >> Power Steering Pump

Power Steering Pump

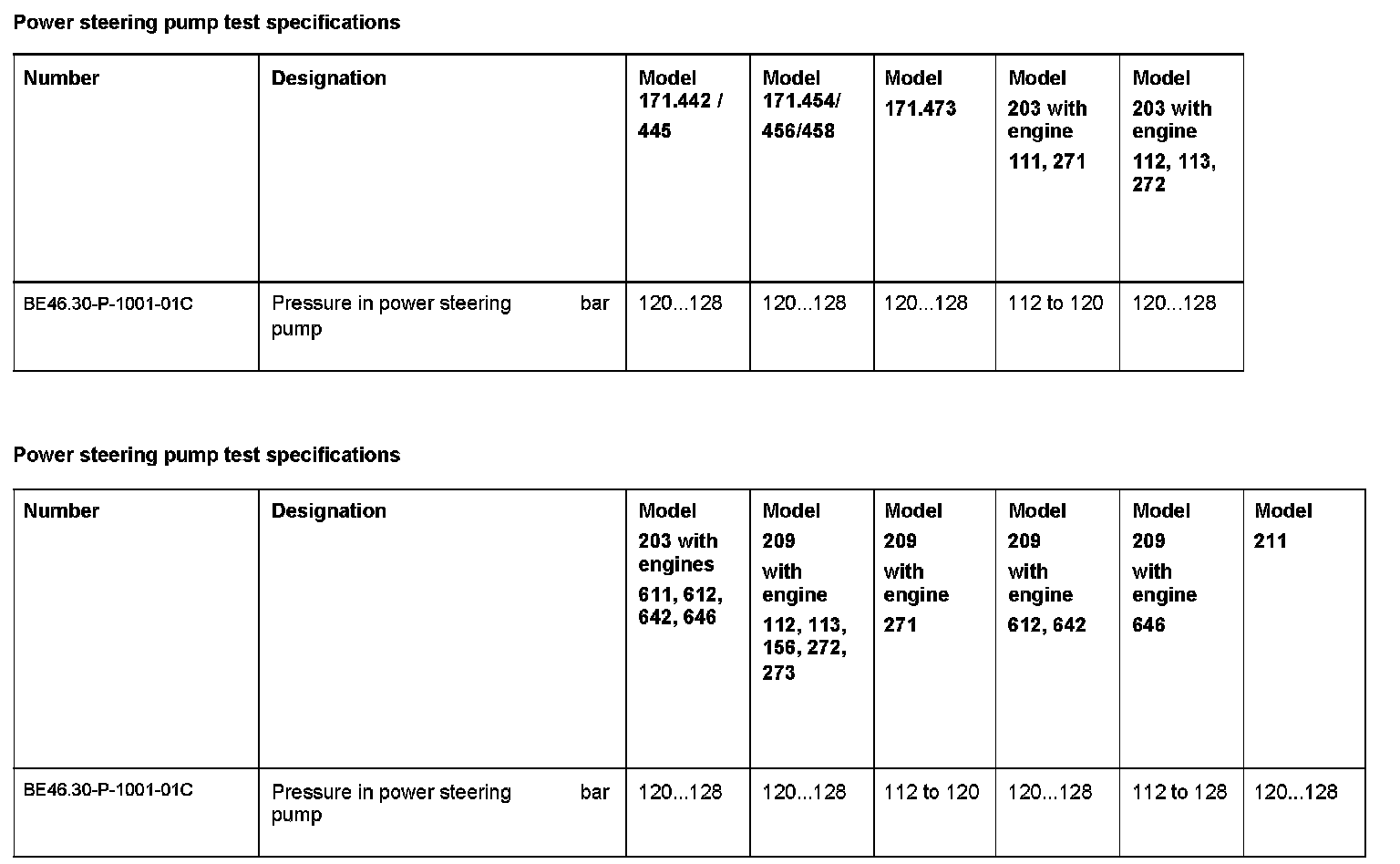

BE46.30-P-1000-01C Power steering pump test specifications

Power Steering Pump Test Specifications:
